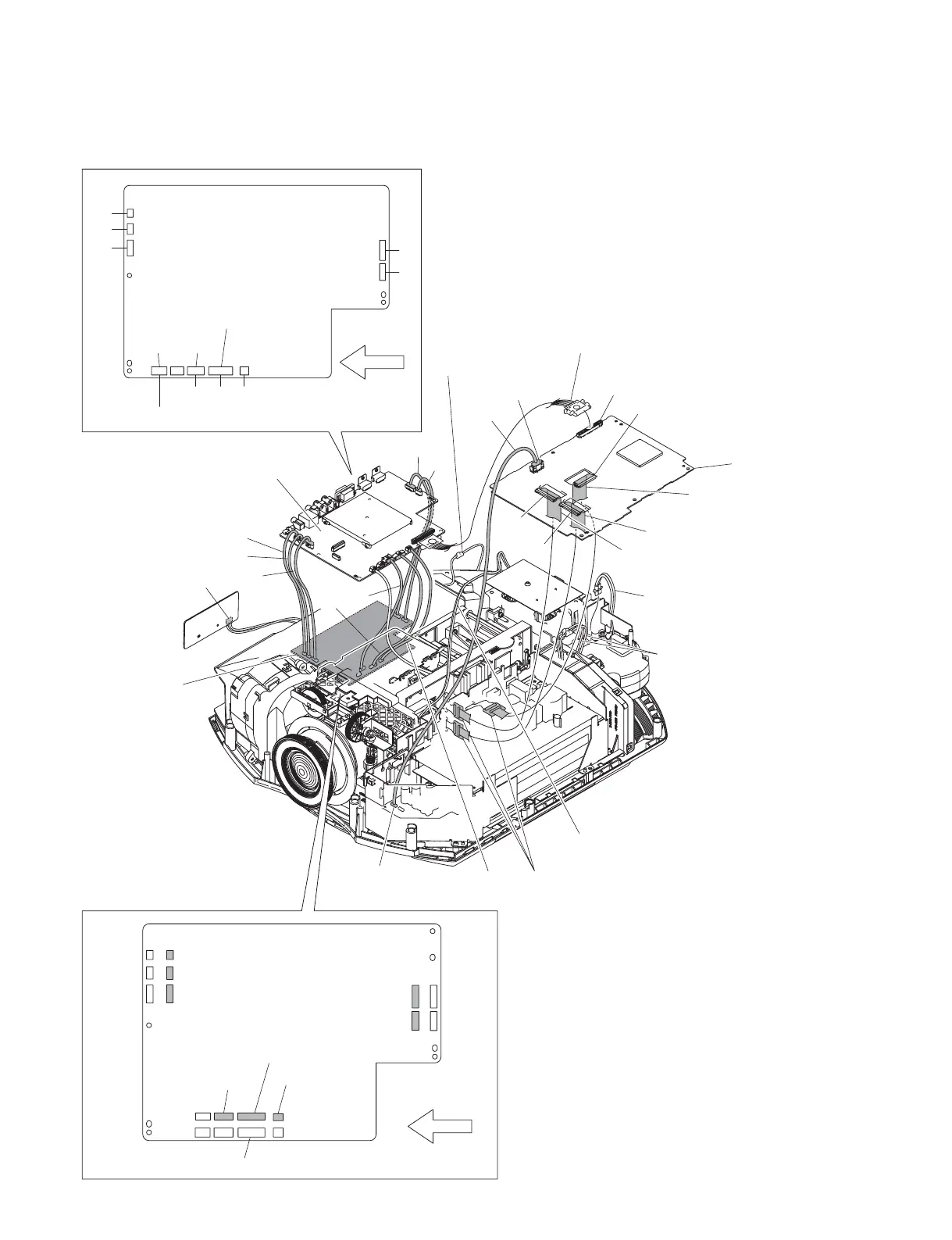

n After the connecting with the C board, QA board, and XQA board, place the C board and QA
board on the insulator and then operate.
XQA board
CJ board x 3
GB board
CN301
CN1605 C
CN1401 E
CN1801 A
CN1704 B
CN801
CN9000
CN1000
CN2000
CN8000
Lamp power connector assembly
Lead wire with connector (LVDS)
Fuse connector assembly
CN9500
Fan connector
Two fan connectors
CN704
CN1602 D
CN1703 F
CN1800 G
CN1705 HCN705
CN800
CN703
CN401
CN605
CN602
QA board
CN801
CN703
CN701
CN800
CN702
CN400CN1001
Harness from the EM-11 board
CN600
CN602
H
G
F
A
B
J
I-2
I-1
I-3
C
HA board
CN11
QA board
C board
XQA board
E D C
B
A
H
G
F
D
E
A JST service connector assembly (9P)
B MOLEX service connector assembly (10P)
C MOLEX service connector assembly (5P)
D MOLEX service connector assembly (15P)
E JST service connector assembly (4P)
F MOLEX service connector assembly (9P)
G JST service connector assembly (3P)
H MOLEX service connector assembly (4P)
I-1 Panel extension cable (80P)
I-2 Panel extension cable (80P)
I-3 Panel extension cable (80P)
J JST service connector assembly (6P)
