7-1
7-1. POWER SUPPLY CHECK
1. ETXNY393N2F Board: NS705V/NS905V/
NS915V: HK, SP, MY,
TH, PH, IA, VTM, KR
HS12S1U Board : NS755V/NS915V: TW
HS12S1F Board : NS915V: LA
Mode E-E
Instrument Digital voltmeter
EVER +3.3 V Check
Test point CN201 pin qa
Specification 3.5 ± 0.2 Vdc
SW +3.3 V Check
Test point CN201 pin 8
Specification 3.5 ± 0.2 Vdc
+5 V Check
Test point CN201 pin qs
Specification 5.0 ± 0.3 Vdc
SW +11 V Check
Test point CN201 pin 6, 7
Specification 11.0 ± 1.0 Vdc
+11 V (AUDIO) Check
Test point CN201 pin qd
Specification 11.0 ± 1.0 Vdc
EVER –13 V Check
Test point CN201 pin 3
Specification –13.0 ± 1.0 Vdc
Checking method:
1) Confirm that each voltage satisfies the specification.
! Caution
Never touch the heat sink that is the primary part. It is feared that
you may get an electric shock.
•Abbreviation
AUS: Australian model
CND : Canadian model
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesia model
KR : Korean model
LA : Latin-America model
ME : Middle East model
MY : Malaysia model
NZ : New Zealand model
PH : Philippines model
RUS: Russian model
SP : Singapore model
TH : Thailand model
TW : Taiwan model
VTM : Vietnam model

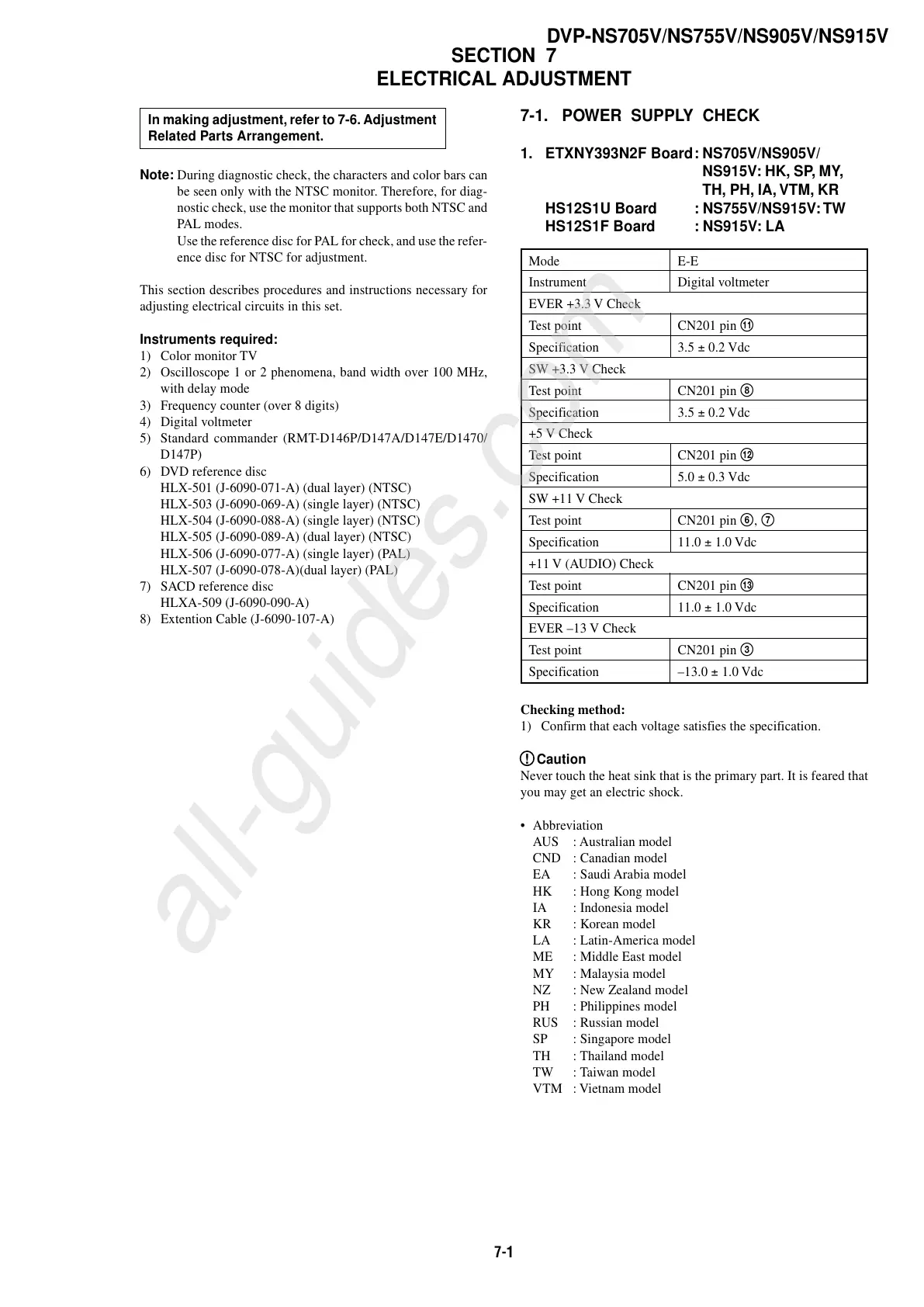

SECTION 7
ELECTRICAL ADJUSTMENT
DVP-NS705V/NS755V/NS905V/NS915V
In making adjustment, refer to 7-6. Adjustment
Related Parts Arrangement.
Note: During diagnostic check, the characters and color bars can
be seen only with the NTSC monitor. Therefore, for diag-
nostic check, use the monitor that supports both NTSC and
PAL modes.
Use the reference disc for PAL for check, and use the refer-
ence disc for NTSC for adjustment.
This section describes procedures and instructions necessary for
adjusting electrical circuits in this set.
Instruments required:
1) Color monitor TV
2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz,
with delay mode
3) Frequency counter (over 8 digits)
4) Digital voltmeter
5) Standard commander (RMT-D146P/D147A/D147E/D1470/
D147P)
6) DVD reference disc
HLX-501 (J-6090-071-A) (dual layer) (NTSC)
HLX-503 (J-6090-069-A) (single layer) (NTSC)
HLX-504 (J-6090-088-A) (single layer) (NTSC)
HLX-505 (J-6090-089-A) (dual layer) (NTSC)
HLX-506 (J-6090-077-A) (single layer) (PAL)
HLX-507 (J-6090-078-A)(dual layer) (PAL)
7) SACD reference disc
HLXA-509 (J-6090-090-A)
8) Extention Cable (J-6090-107-A)
