Sony RMT-D147P - Electrical Parts List

8-6
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Not all of the parts for POWER BLOCK
(ETXN393N2F/HS12S1U/HS12S1F) are
listed.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µ A. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH

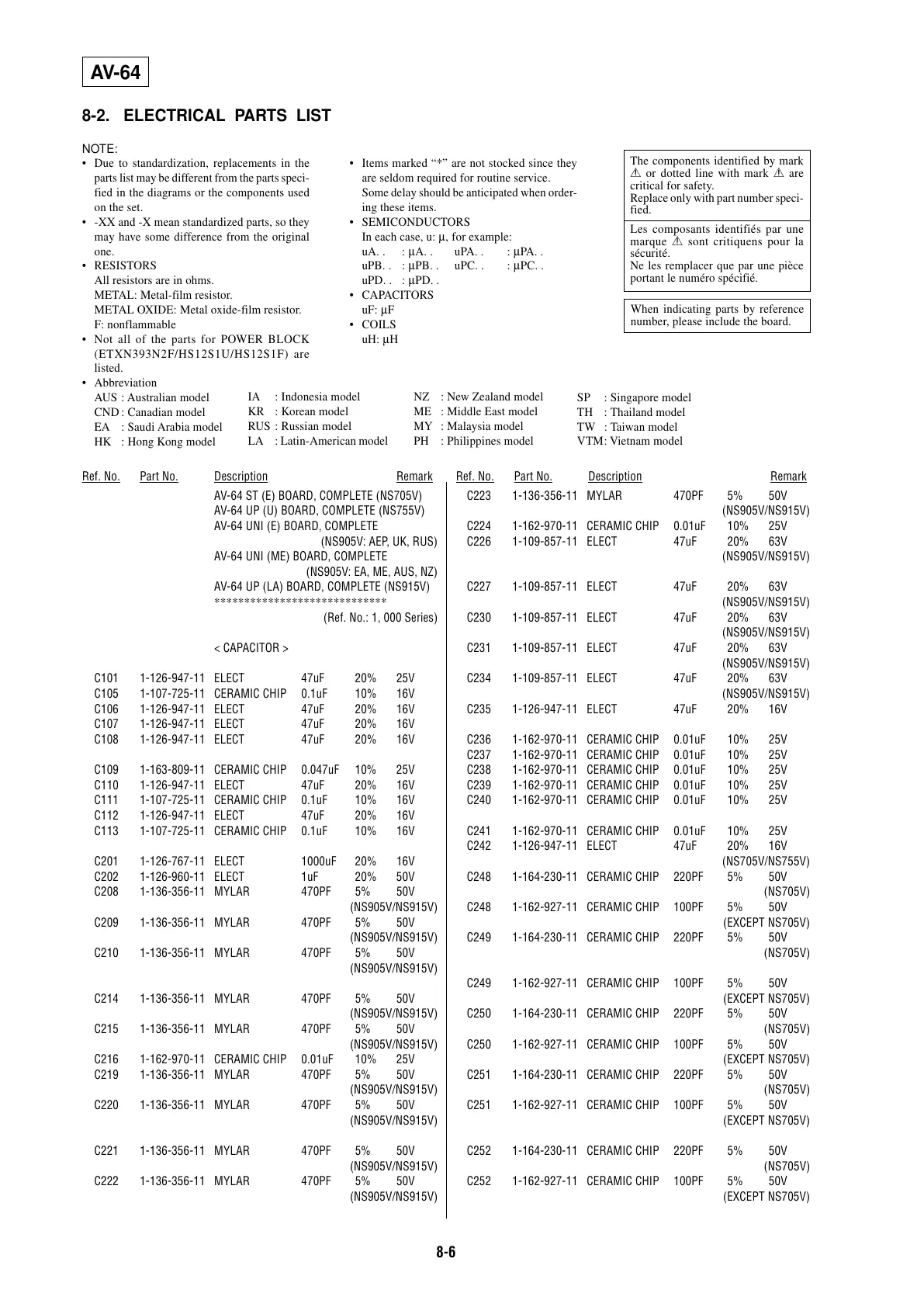

8-2. ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
•Abbreviation
AUS: Australian model
CND : Canadian model
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesia model
KR : Korean model
RUS: Russian model
LA : Latin-American model
NZ : New Zealand model
ME : Middle East model
MY : Malaysia model
PH : Philippines model
SP : Singapore model
TH : Thailand model
TW : Taiwan model
VTM: Vietnam model
AV-64
AV-64 ST (E) BOARD, COMPLETE (NS705V)
AV-64 UP (U) BOARD, COMPLETE (NS755V)
AV-64 UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
AV-64 UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME, AUS, NZ)
AV-64 UP (LA) BOARD, COMPLETE (NS915V)
*****************************
(Ref. No.: 1, 000 Series)
< CAPACITOR >
C101 1-126-947-11 ELECT 47uF 20% 25V
C105 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C106 1-126-947-11 ELECT 47uF 20% 16V
C107 1-126-947-11 ELECT 47uF 20% 16V
C108 1-126-947-11 ELECT 47uF 20% 16V
C109 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C110 1-126-947-11 ELECT 47uF 20% 16V
C111 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C112 1-126-947-11 ELECT 47uF 20% 16V
C113 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C201 1-126-767-11 ELECT 1000uF 20% 16V
C202 1-126-960-11 ELECT 1uF 20% 50V
C208 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C209 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C210 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C214 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C215 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C216 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C219 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C220 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C221 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C222 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C223 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C226 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C227 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C230 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C231 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C234 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C235 1-126-947-11 ELECT 47uF 20% 16V
C236 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C237 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C238 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C239 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C240 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C241 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C242 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C248 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(NS705V)
C248 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(EXCEPT NS705V)
C249 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(NS705V)
C249 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(EXCEPT NS705V)
C250 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(NS705V)
C250 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(EXCEPT NS705V)
C251 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(NS705V)
C251 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(EXCEPT NS705V)
C252 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
(NS705V)
C252 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(EXCEPT NS705V)
