Sony RMT-D147P - Board Removal; Optical Pick-Up Removal

2-3
6 Screw (B3)
7 IF-94 board
4 Connector
(CN102)
1 Connector
(CN201)
2 Two screws (B3)
5 Two screws (B3)
3 FP support

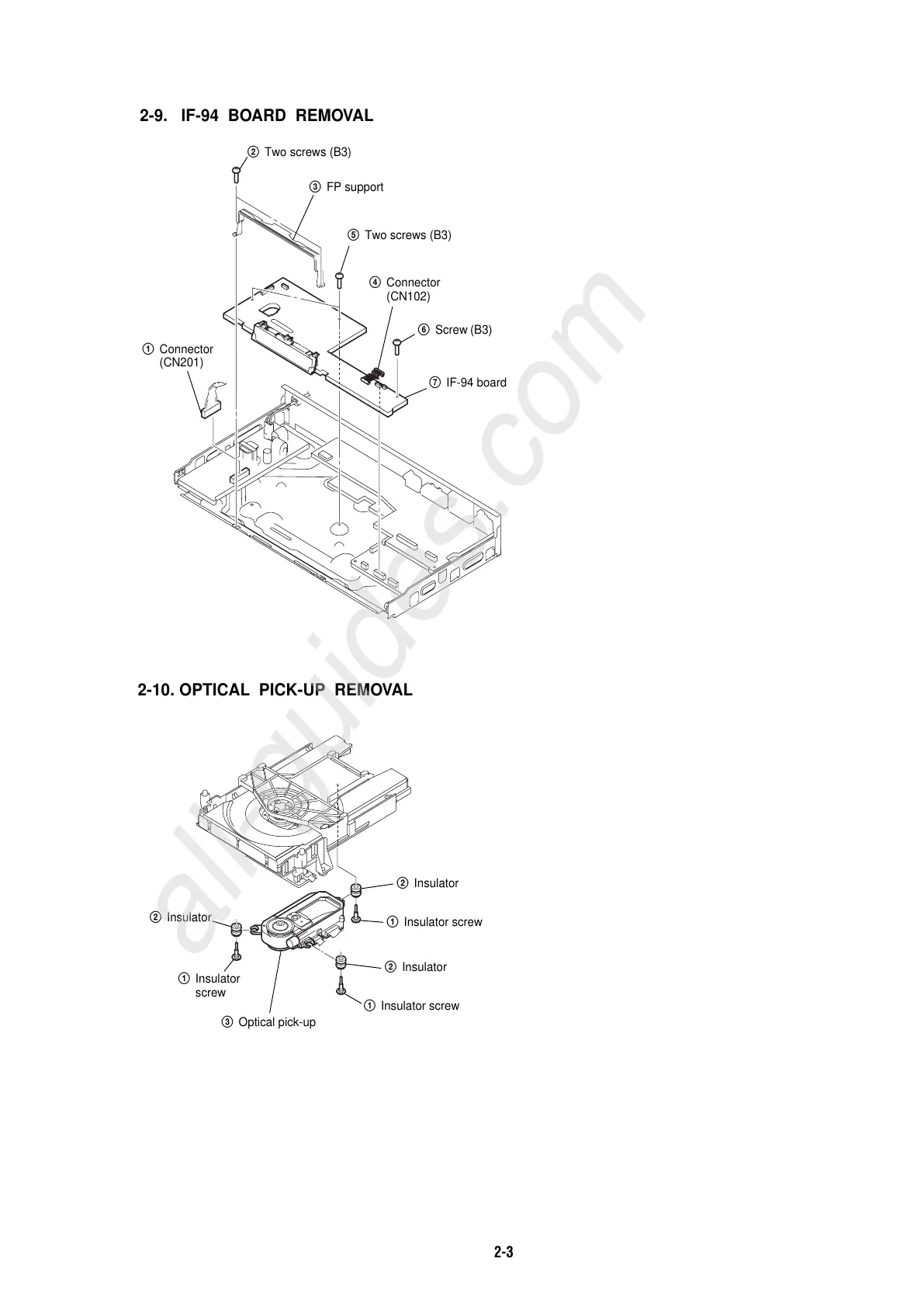

2-9. IF-94 BOARD REMOVAL
2-10. OPTICAL PICK-UP REMOVAL
2 Insulator
2 Insulator
2 Insulator
1 Insulator screw
1 Insulator
screw
3 Optical pick-up
1 Insulator screw
