Sony RMT-D147P - Mechanism Deck Removal; Board Removal; MB-105 Board Removal; ER-19 Board Removal

2-2
2 Three screws
(B3)
4 Mechanism deck
1 Two flexible flat cables
(FMO-001: CN203,
FMO-002: CN204)
3 Two claws
1 Flexible flat cable
(FMM-035: CN201)
1 Connector
(CN302)
3 Seven screws
(B3)
2 Two screws
(B3)
EXCEPT
NS-705V/
905: AEP, UK, RU
5 AV-64 board
4 Screw
2 Five screws
(B3)
3 MB-105 board
1 Flexible flat cable
(FAE-009: CN601)
1 Flexible flat cable
(FAE-009: CN901)
4 Two screws
(B3)
3 Two screws
(B3)
2 Two screws
(B3)
NS-905V: AEP, UK, RU
NS-705V/
905V: AEP, UK, RU
5 ER-19 board

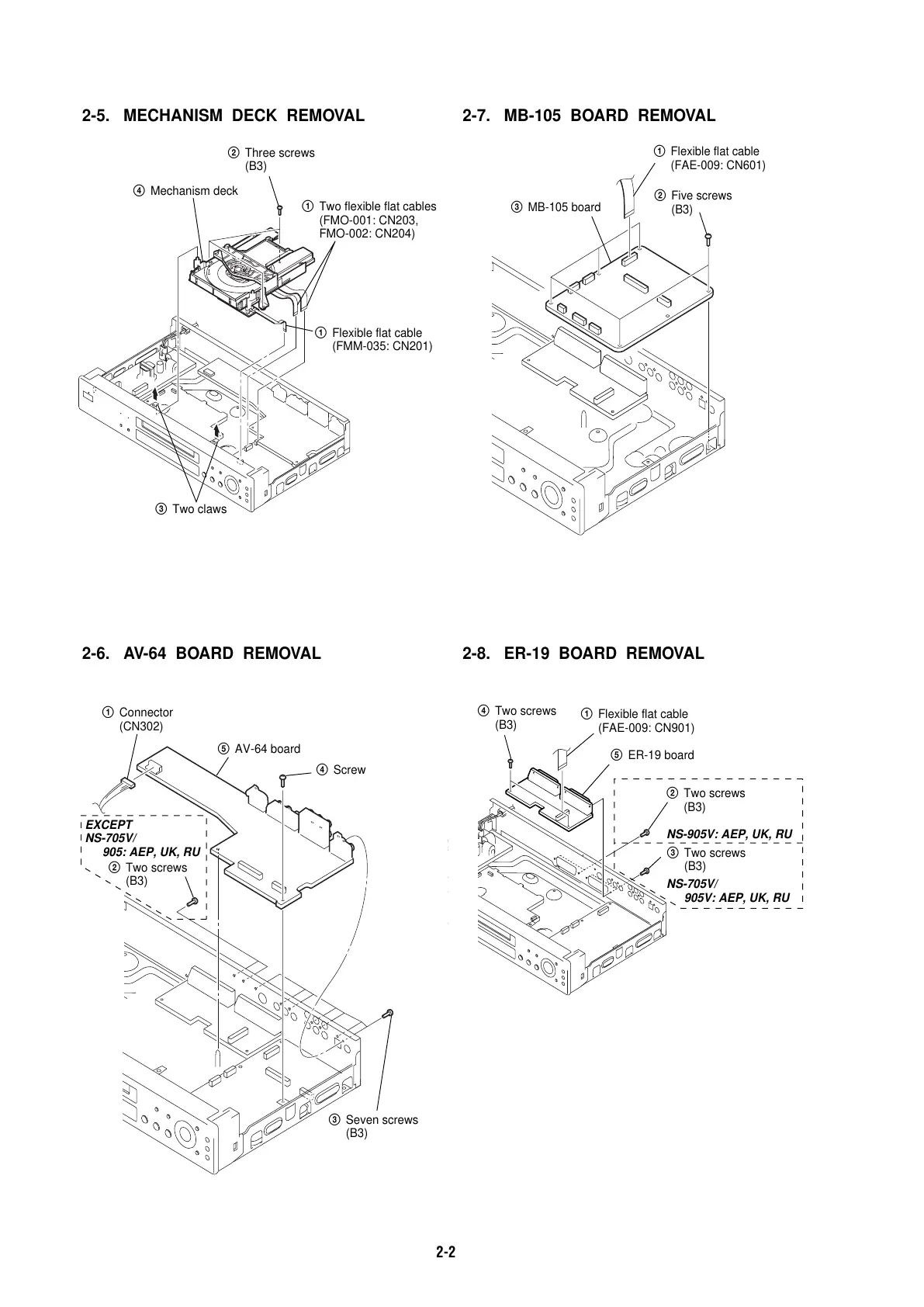

2-5. MECHANISM DECK REMOVAL 2-7. MB-105 BOARD REMOVAL
2-6. AV-64 BOARD REMOVAL 2-8. ER-19 BOARD REMOVAL
