SERVICE NOTE
1. DISASSEMBLY

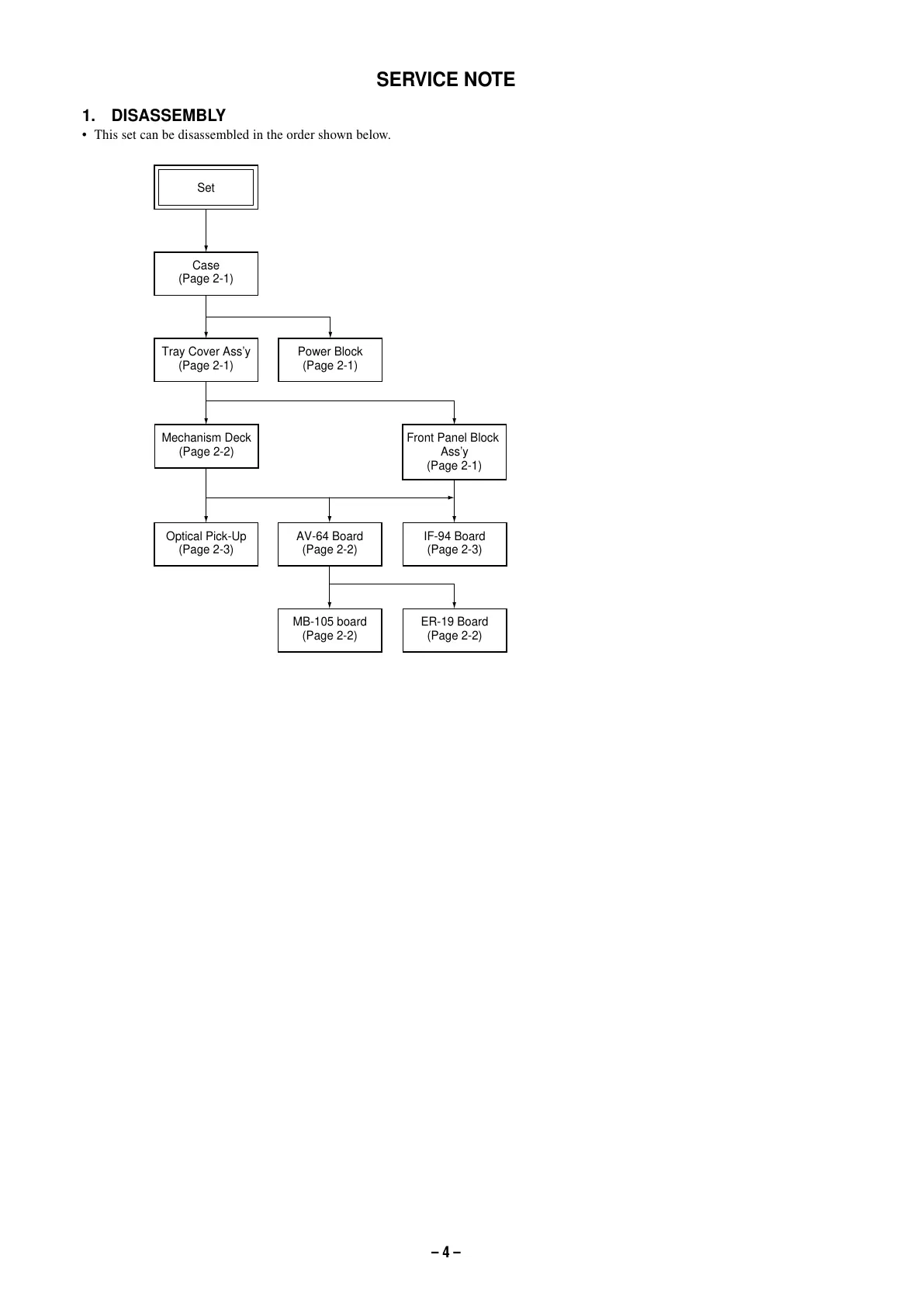

•This set can be disassembled in the order shown below.
Set
Case
(Page 2-1)
Power Block
(Page 2-1)
Optical Pick-Up
(Page 2-3)
IF-94 Board
(Page 2-3)
AV-64 Board
(Page 2-2)
ER-19 Board
(Page 2-2)
MB-105 board
(Page 2-2)
Mechanism Deck
(Page 2-2)
Tray Cover Ass’y
(Page 2-1)
Front Panel Block
Ass’y
(Page 2-1)
