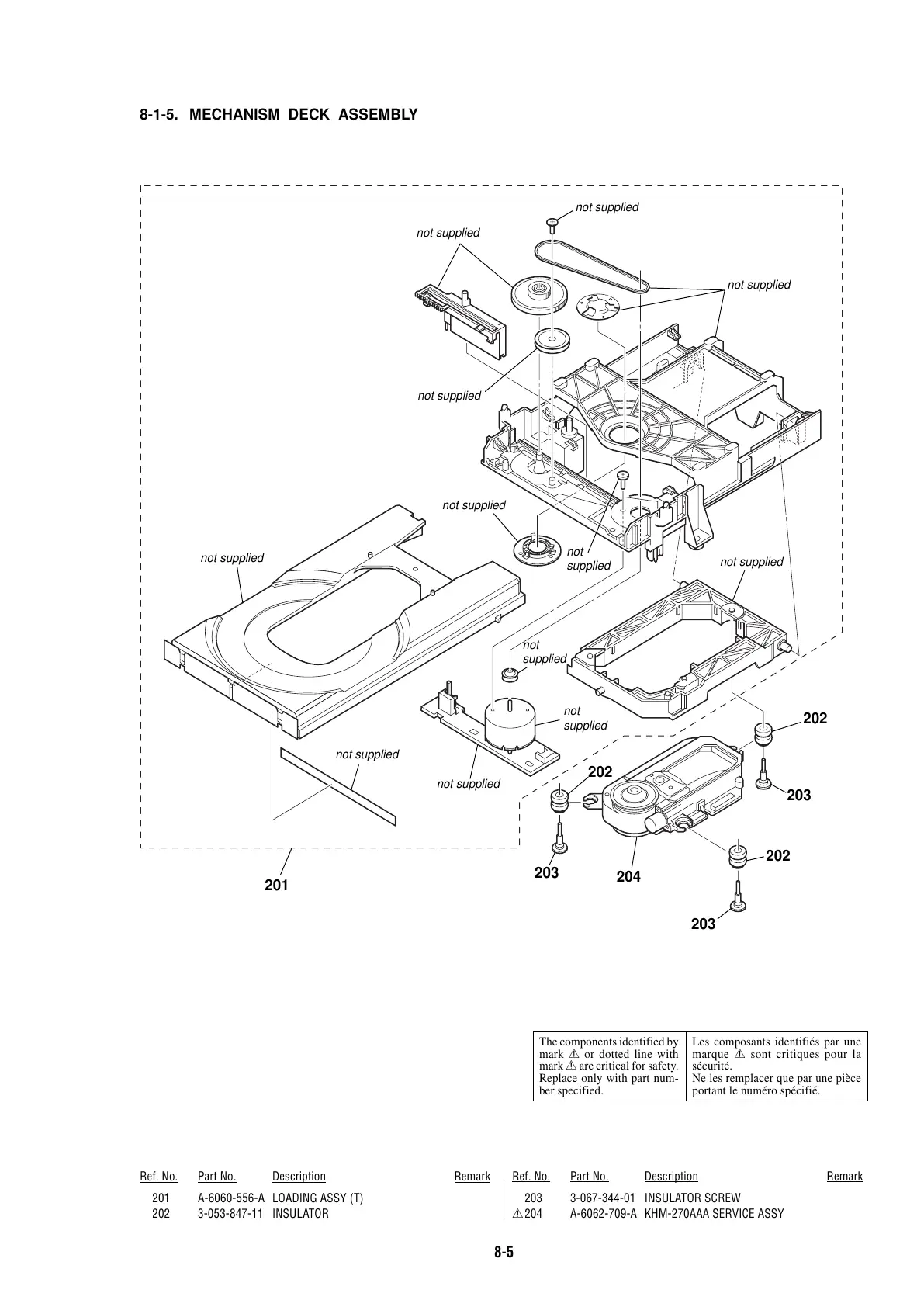

8-1-5. MECHANISM DECK ASSEMBLY
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
201
202
202
202
203
203
204
203
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-6060-556-A LOADING ASSY (T)
202 3-053-847-11 INSULATOR
203 3-067-344-01 INSULATOR SCREW
0 204 A-6062-709-A KHM-270AAA SERVICE ASSY
