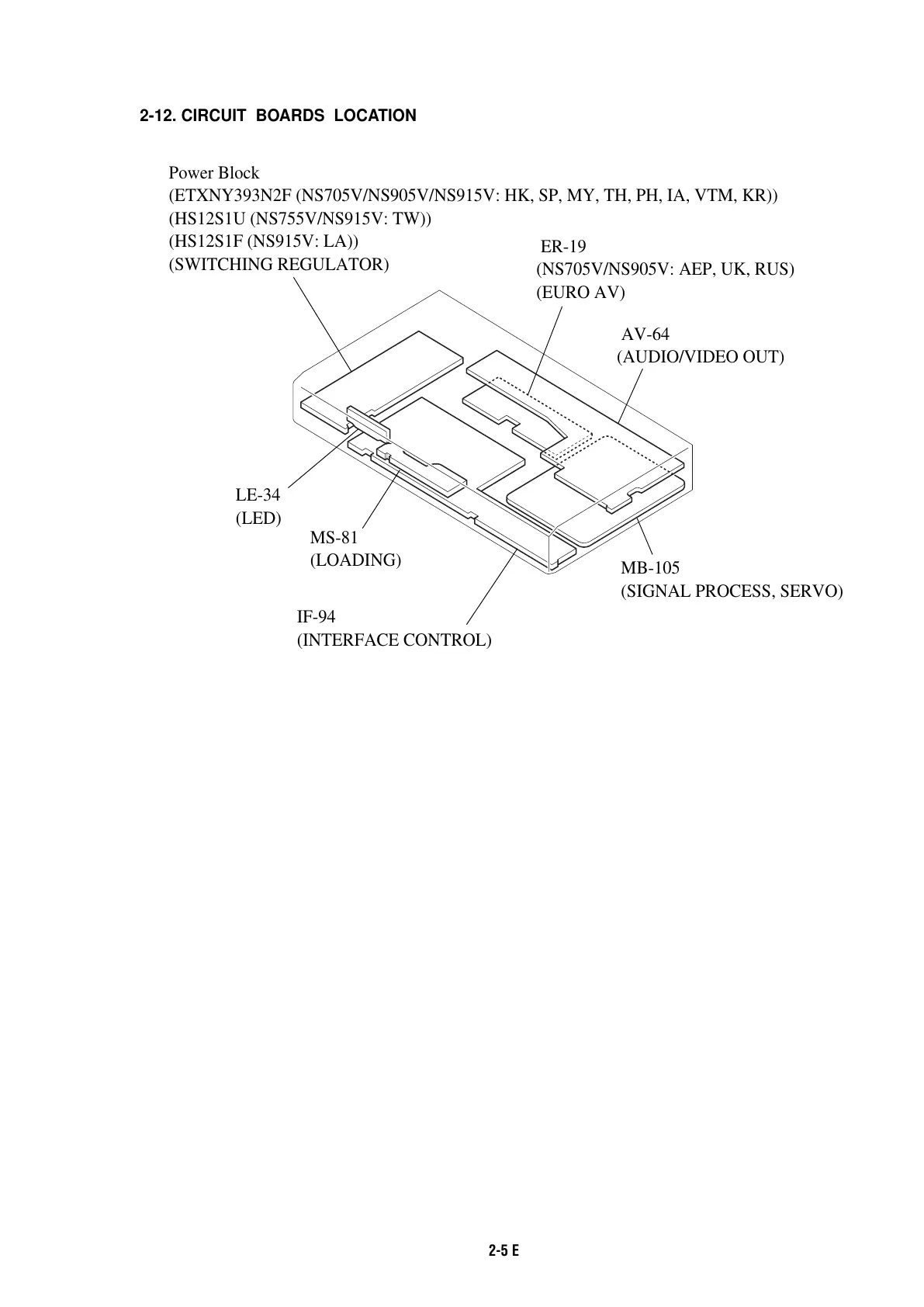

2-12. CIRCUIT BOARDS LOCATION
MB-105
(SIGNAL PROCESS, SERVO)
Power Block
(ETXNY393N2F (NS705V/NS905V/NS915V: HK, SP, MY, TH, PH, IA, VTM, KR))
(HS12S1U (NS755V/NS915V: TW))
(HS12S1F (NS915V: LA))
(SWITCHING REGULATOR)
ER-19
(NS705V/NS905V: AEP, UK, RUS)
(EURO AV)
AV-64
(AUDIO/VIDEO OUT)
MS-81
(LOADING)
IF-94
(INTERFACE CONTROL)
LE-34
(LED)
