8-1
DVP-NS705V/NS755V/NS905V/NS915V
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
SECTION 8
REPAIR PARTS LIST

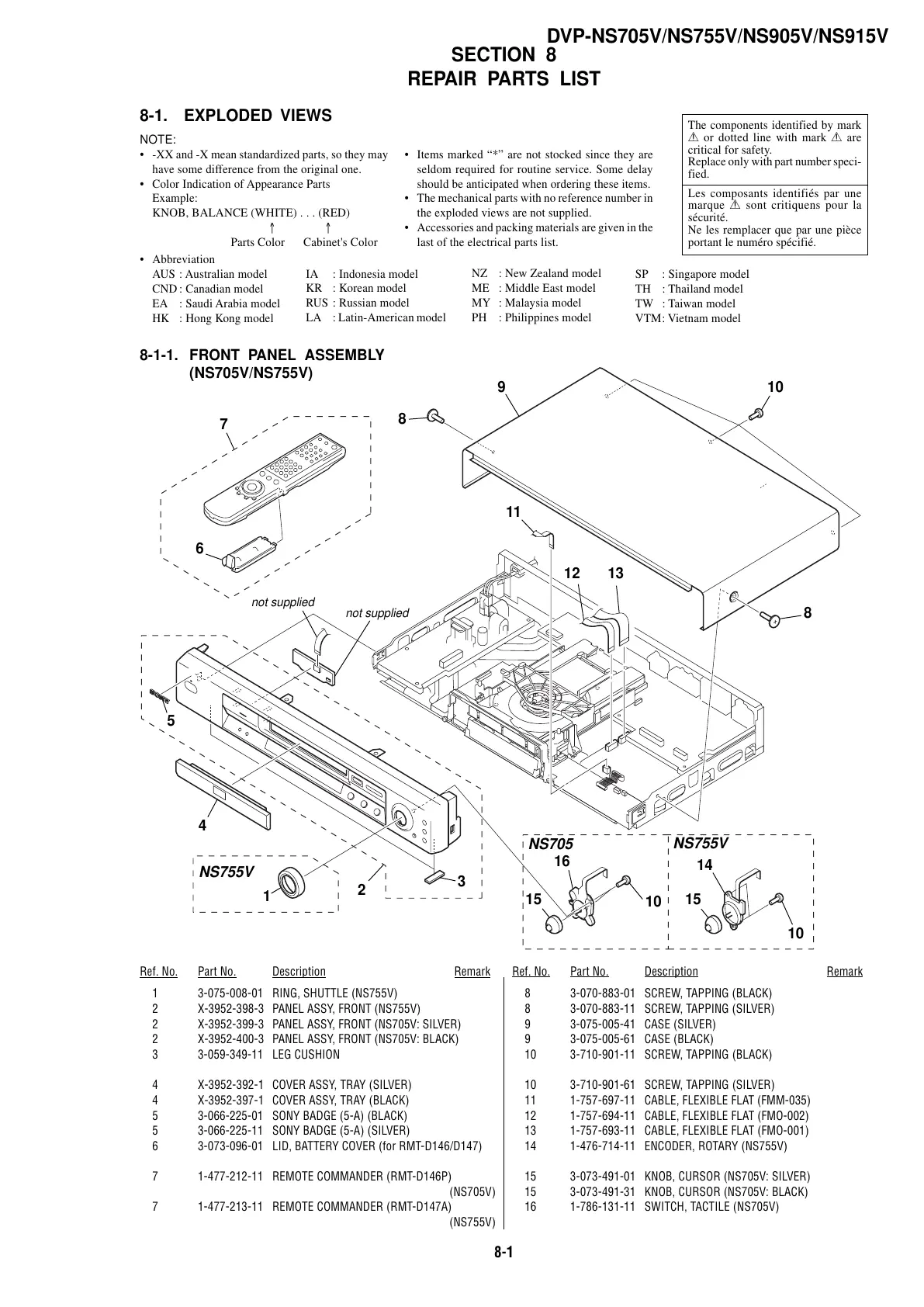

8-1. EXPLODED VIEWS
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
8-1-1. FRONT PANEL ASSEMBLY
(NS705V/NS755V)
4
5
8
8
13
12
7
6
9
3
2
NS705
NS755V
NS755V
11
10
16
15
10
1
10
15
14
not supplied
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-075-008-01 RING, SHUTTLE (NS755V)
2 X-3952-398-3 PANEL ASSY, FRONT (NS755V)
2 X-3952-399-3 PANEL ASSY, FRONT (NS705V: SILVER)
2 X-3952-400-3 PANEL ASSY, FRONT (NS705V: BLACK)
3 3-059-349-11 LEG CUSHION
4 X-3952-392-1 COVER ASSY, TRAY (SILVER)
4 X-3952-397-1 COVER ASSY, TRAY (BLACK)
5 3-066-225-01 SONY BADGE (5-A) (BLACK)
5 3-066-225-11 SONY BADGE (5-A) (SILVER)
6 3-073-096-01 LID, BATTERY COVER (for RMT-D146/D147)
7 1-477-212-11 REMOTE COMMANDER (RMT-D146P)
(NS705V)
7 1-477-213-11 REMOTE COMMANDER (RMT-D147A)
(NS755V)
8 3-070-883-01 SCREW, TAPPING (BLACK)
8 3-070-883-11 SCREW, TAPPING (SILVER)
9 3-075-005-41 CASE (SILVER)
9 3-075-005-61 CASE (BLACK)
10 3-710-901-11 SCREW, TAPPING (BLACK)
10 3-710-901-61 SCREW, TAPPING (SILVER)
11 1-757-697-11 CABLE, FLEXIBLE FLAT (FMM-035)
12 1-757-694-11 CABLE, FLEXIBLE FLAT (FMO-002)
13 1-757-693-11 CABLE, FLEXIBLE FLAT (FMO-001)
14 1-476-714-11 ENCODER, ROTARY (NS755V)
15 3-073-491-01 KNOB, CURSOR (NS705V: SILVER)
15 3-073-491-31 KNOB, CURSOR (NS705V: BLACK)
16 1-786-131-11 SWITCH, TACTILE (NS705V)
•Abbreviation
AUS: Australian model
CND : Canadian model
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesia model
KR : Korean model
RUS: Russian model
LA : Latin-American model
NZ : New Zealand model
ME : Middle East model
MY : Malaysia model
PH : Philippines model
SP : Singapore model
TH : Thailand model
TW : Taiwan model
VTM: Vietnam model
To Next Page
