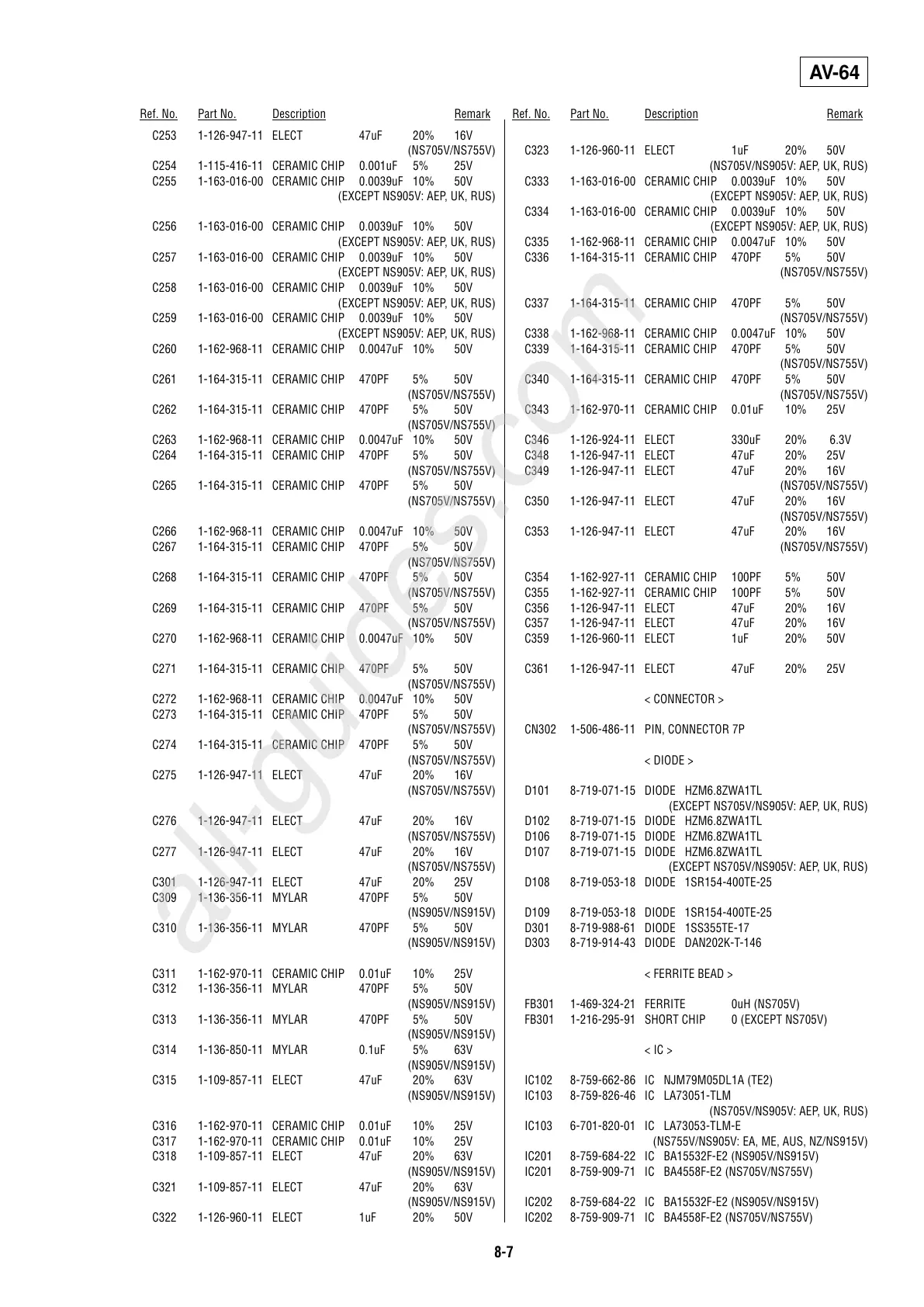

8-7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AV-64
C253 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C254 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C255 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C256 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C257 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C258 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C259 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C260 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C261 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C262 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C263 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C264 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C265 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C266 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C267 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C268 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C269 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C270 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C271 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C272 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C273 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C274 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C275 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C276 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C277 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C301 1-126-947-11 ELECT 47uF 20% 25V
C309 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C310 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C311 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C312 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C313 1-136-356-11 MYLAR 470PF 5% 50V
(NS905V/NS915V)
C314 1-136-850-11 MYLAR 0.1uF 5% 63V
(NS905V/NS915V)
C315 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C316 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C318 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C321 1-109-857-11 ELECT 47uF 20% 63V
(NS905V/NS915V)
C322 1-126-960-11 ELECT 1uF 20% 50V
C323 1-126-960-11 ELECT 1uF 20% 50V
(NS705V/NS905V: AEP, UK, RUS)
C333 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C334 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
(EXCEPT NS905V: AEP, UK, RUS)
C335 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C336 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C337 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C338 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C339 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C340 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
(NS705V/NS755V)
C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C346 1-126-924-11 ELECT 330uF 20% 6.3V
C348 1-126-947-11 ELECT 47uF 20% 25V
C349 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C350 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C353 1-126-947-11 ELECT 47uF 20% 16V
(NS705V/NS755V)
C354 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C355 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C356 1-126-947-11 ELECT 47uF 20% 16V
C357 1-126-947-11 ELECT 47uF 20% 16V
C359 1-126-960-11 ELECT 1uF 20% 50V
C361 1-126-947-11 ELECT 47uF 20% 25V
< CONNECTOR >
CN302 1-506-486-11 PIN, CONNECTOR 7P
< DIODE >
D101 8-719-071-15 DIODE HZM6.8ZWA1TL
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
D102 8-719-071-15 DIODE HZM6.8ZWA1TL
D106 8-719-071-15 DIODE HZM6.8ZWA1TL
D107 8-719-071-15 DIODE HZM6.8ZWA1TL
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
D108 8-719-053-18 DIODE 1SR154-400TE-25
D109 8-719-053-18 DIODE 1SR154-400TE-25
D301 8-719-988-61 DIODE 1SS355TE-17
D303 8-719-914-43 DIODE DAN202K-T-146
< FERRITE BEAD >
FB301 1-469-324-21 FERRITE 0uH (NS705V)
FB301 1-216-295-91 SHORT CHIP 0 (EXCEPT NS705V)
< IC >
IC102 8-759-662-86 IC NJM79M05DL1A (TE2)
IC103 8-759-826-46 IC LA73051-TLM
(NS705V/NS905V: AEP, UK, RUS)
IC103 6-701-820-01 IC LA73053-TLM-E
(NS755V/NS905V: EA, ME, AUS, NZ/NS915V)
IC201 8-759-684-22 IC BA15532F-E2 (NS905V/NS915V)
IC201 8-759-909-71 IC BA4558F-E2 (NS705V/NS755V)
IC202 8-759-684-22 IC BA15532F-E2 (NS905V/NS915V)
IC202 8-759-909-71 IC BA4558F-E2 (NS705V/NS755V)
