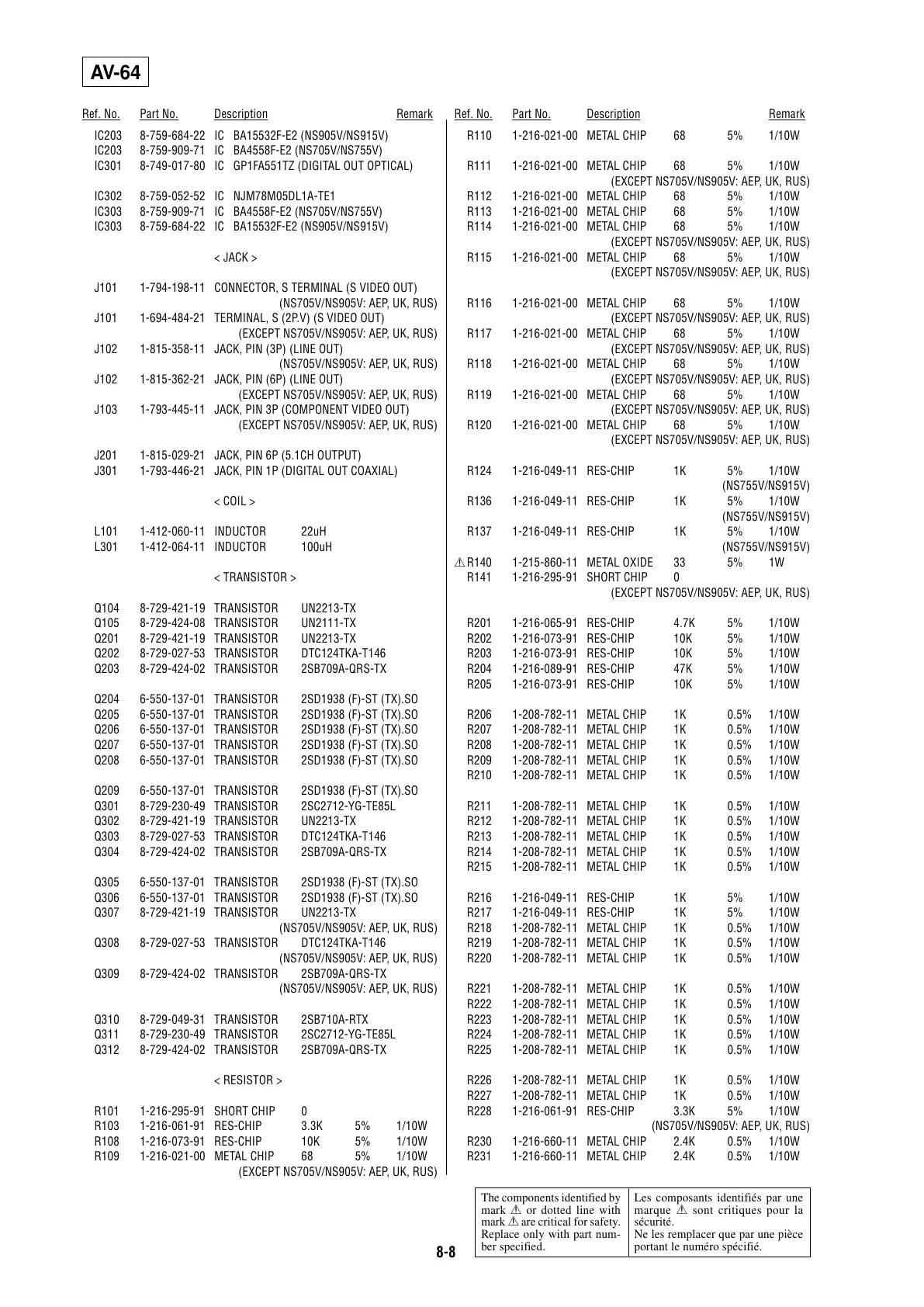

8-8
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC203 8-759-684-22 IC BA15532F-E2 (NS905V/NS915V)
IC203 8-759-909-71 IC BA4558F-E2 (NS705V/NS755V)
IC301 8-749-017-80 IC GP1FA551TZ (DIGITAL OUT OPTICAL)
IC302 8-759-052-52 IC NJM78M05DL1A-TE1
IC303 8-759-909-71 IC BA4558F-E2 (NS705V/NS755V)
IC303 8-759-684-22 IC BA15532F-E2 (NS905V/NS915V)
< JACK >
J101 1-794-198-11 CONNECTOR, S TERMINAL (S VIDEO OUT)
(NS705V/NS905V: AEP, UK, RUS)
J101 1-694-484-21 TERMINAL, S (2P.V) (S VIDEO OUT)
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
J102 1-815-358-11 JACK, PIN (3P) (LINE OUT)
(NS705V/NS905V: AEP, UK, RUS)
J102 1-815-362-21 JACK, PIN (6P) (LINE OUT)
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
J103 1-793-445-11 JACK, PIN 3P (COMPONENT VIDEO OUT)
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
J201 1-815-029-21 JACK, PIN 6P (5.1CH OUTPUT)
J301 1-793-446-21 JACK, PIN 1P (DIGITAL OUT COAXIAL)
< COIL >
L101 1-412-060-11 INDUCTOR 22uH
L301 1-412-064-11 INDUCTOR 100uH
< TRANSISTOR >
Q104 8-729-421-19 TRANSISTOR UN2213-TX
Q105 8-729-424-08 TRANSISTOR UN2111-TX
Q201 8-729-421-19 TRANSISTOR UN2213-TX
Q202 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q203 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
Q204 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q205 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q206 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q207 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q208 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q209 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q301 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
Q302 8-729-421-19 TRANSISTOR UN2213-TX
Q303 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q304 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
Q305 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q306 6-550-137-01 TRANSISTOR 2SD1938 (F)-ST (TX).SO
Q307 8-729-421-19 TRANSISTOR UN2213-TX
(NS705V/NS905V: AEP, UK, RUS)
Q308 8-729-027-53 TRANSISTOR DTC124TKA-T146
(NS705V/NS905V: AEP, UK, RUS)
Q309 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
(NS705V/NS905V: AEP, UK, RUS)
Q310 8-729-049-31 TRANSISTOR 2SB710A-RTX
Q311 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
Q312 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
< RESISTOR >
R101 1-216-295-91 SHORT CHIP 0
R103 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R108 1-216-073-91 RES-CHIP 10K 5% 1/10W
R109 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R110 1-216-021-00 METAL CHIP 68 5% 1/10W
R111 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R112 1-216-021-00 METAL CHIP 68 5% 1/10W
R113 1-216-021-00 METAL CHIP 68 5% 1/10W
R114 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R115 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R116 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R117 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R118 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R119 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R120 1-216-021-00 METAL CHIP 68 5% 1/10W
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R124 1-216-049-11 RES-CHIP 1K 5% 1/10W
(NS755V/NS915V)
R136 1-216-049-11 RES-CHIP 1K 5% 1/10W
(NS755V/NS915V)
R137 1-216-049-11 RES-CHIP 1K 5% 1/10W
(NS755V/NS915V)
0 R140 1-215-860-11 METAL OXIDE 33 5% 1W
R141 1-216-295-91 SHORT CHIP 0
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
R201 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R202 1-216-073-91 RES-CHIP 10K 5% 1/10W
R203 1-216-073-91 RES-CHIP 10K 5% 1/10W
R204 1-216-089-91 RES-CHIP 47K 5% 1/10W
R205 1-216-073-91 RES-CHIP 10K 5% 1/10W
R206 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R207 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R208 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R209 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R210 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R211 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R212 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R213 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R214 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R215 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R216 1-216-049-11 RES-CHIP 1K 5% 1/10W
R217 1-216-049-11 RES-CHIP 1K 5% 1/10W
R218 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R219 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R220 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R221 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R222 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R223 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R224 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R225 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R226 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R227 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R228 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
(NS705V/NS905V: AEP, UK, RUS)
R230 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
R231 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
AV-64
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
