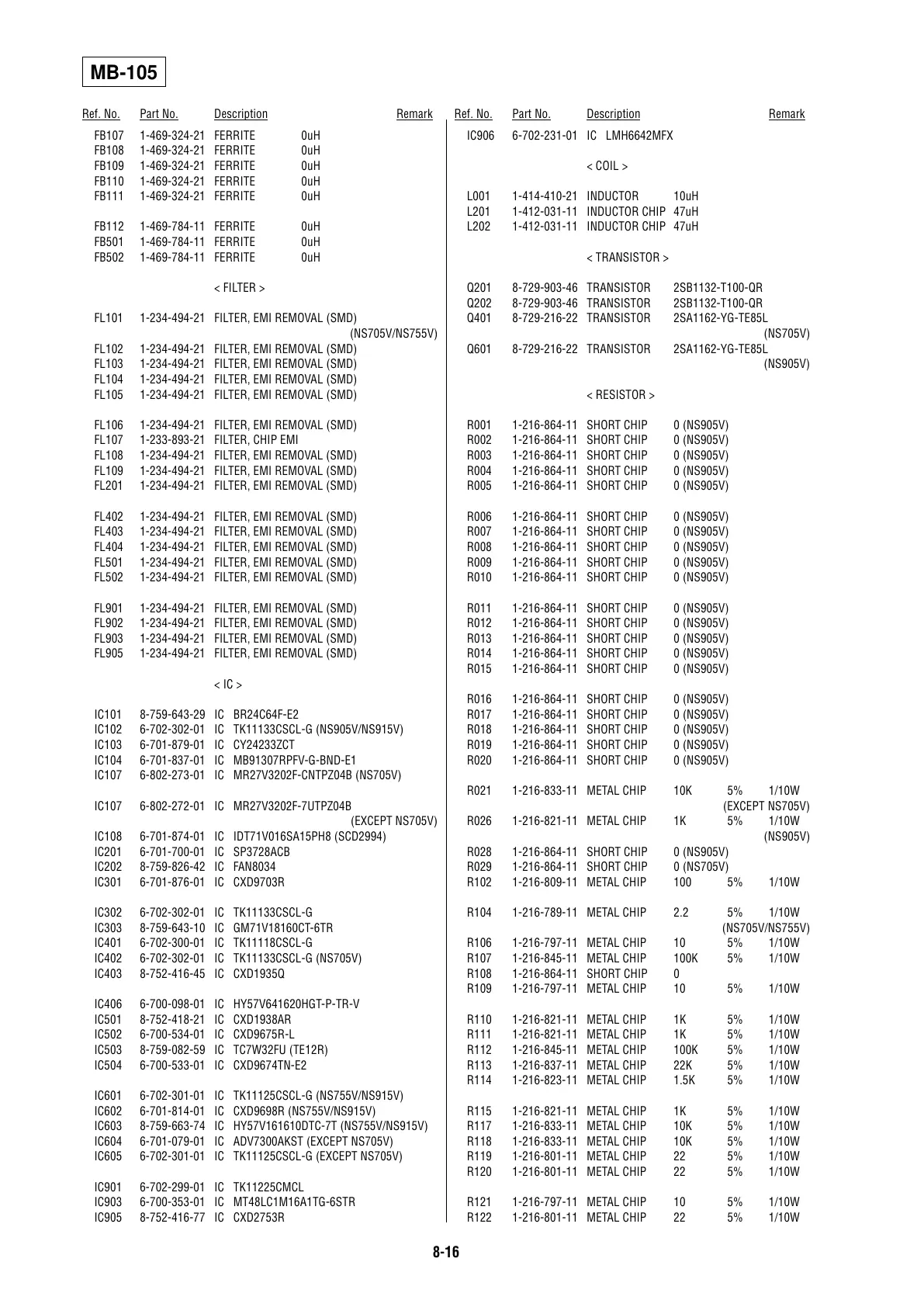

Sony RMT-D147P - Page 120

8-16
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
FB107 1-469-324-21 FERRITE 0uH
FB108 1-469-324-21 FERRITE 0uH
FB109 1-469-324-21 FERRITE 0uH
FB110 1-469-324-21 FERRITE 0uH
FB111 1-469-324-21 FERRITE 0uH
FB112 1-469-784-11 FERRITE 0uH
FB501 1-469-784-11 FERRITE 0uH
FB502 1-469-784-11 FERRITE 0uH
< FILTER >
FL101 1-234-494-21 FILTER, EMI REMOVAL (SMD)
(NS705V/NS755V)
FL102 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL103 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL104 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL105 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL106 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL107 1-233-893-21 FILTER, CHIP EMI
FL108 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL109 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL201 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL402 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL403 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL404 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL501 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL502 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL901 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL902 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL903 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL905 1-234-494-21 FILTER, EMI REMOVAL (SMD)
< IC >
IC101 8-759-643-29 IC BR24C64F-E2
IC102 6-702-302-01 IC TK11133CSCL-G (NS905V/NS915V)
IC103 6-701-879-01 IC CY24233ZCT
IC104 6-701-837-01 IC MB91307RPFV-G-BND-E1
IC107 6-802-273-01 IC MR27V3202F-CNTPZ04B (NS705V)
IC107 6-802-272-01 IC MR27V3202F-7UTPZ04B
(EXCEPT NS705V)
IC108 6-701-874-01 IC IDT71V016SA15PH8 (SCD2994)
IC201 6-701-700-01 IC SP3728ACB
IC202 8-759-826-42 IC FAN8034
IC301 6-701-876-01 IC CXD9703R
IC302 6-702-302-01 IC TK11133CSCL-G
IC303 8-759-643-10 IC GM71V18160CT-6TR
IC401 6-702-300-01 IC TK11118CSCL-G
IC402 6-702-302-01 IC TK11133CSCL-G (NS705V)
IC403 8-752-416-45 IC CXD1935Q
IC406 6-700-098-01 IC HY57V641620HGT-P-TR-V
IC501 8-752-418-21 IC CXD1938AR
IC502 6-700-534-01 IC CXD9675R-L
IC503 8-759-082-59 IC TC7W32FU (TE12R)
IC504 6-700-533-01 IC CXD9674TN-E2
IC601 6-702-301-01 IC TK11125CSCL-G (NS755V/NS915V)
IC602 6-701-814-01 IC CXD9698R (NS755V/NS915V)
IC603 8-759-663-74 IC HY57V161610DTC-7T (NS755V/NS915V)
IC604 6-701-079-01 IC ADV7300AKST (EXCEPT NS705V)
IC605 6-702-301-01 IC TK11125CSCL-G (EXCEPT NS705V)
IC901 6-702-299-01 IC TK11225CMCL
IC903 6-700-353-01 IC MT48LC1M16A1TG-6STR
IC905 8-752-416-77 IC CXD2753R
IC906 6-702-231-01 IC LMH6642MFX
< COIL >
L001 1-414-410-21 INDUCTOR 10uH
L201 1-412-031-11 INDUCTOR CHIP 47uH
L202 1-412-031-11 INDUCTOR CHIP 47uH
< TRANSISTOR >
Q201 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
Q202 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
Q401 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
(NS705V)
Q601 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
(NS905V)
< RESISTOR >
R001 1-216-864-11 SHORT CHIP 0 (NS905V)
R002 1-216-864-11 SHORT CHIP 0 (NS905V)
R003 1-216-864-11 SHORT CHIP 0 (NS905V)
R004 1-216-864-11 SHORT CHIP 0 (NS905V)
R005 1-216-864-11 SHORT CHIP 0 (NS905V)
R006 1-216-864-11 SHORT CHIP 0 (NS905V)
R007 1-216-864-11 SHORT CHIP 0 (NS905V)
R008 1-216-864-11 SHORT CHIP 0 (NS905V)
R009 1-216-864-11 SHORT CHIP 0 (NS905V)
R010 1-216-864-11 SHORT CHIP 0 (NS905V)
R011 1-216-864-11 SHORT CHIP 0 (NS905V)
R012 1-216-864-11 SHORT CHIP 0 (NS905V)
R013 1-216-864-11 SHORT CHIP 0 (NS905V)
R014 1-216-864-11 SHORT CHIP 0 (NS905V)
R015 1-216-864-11 SHORT CHIP 0 (NS905V)
R016 1-216-864-11 SHORT CHIP 0 (NS905V)
R017 1-216-864-11 SHORT CHIP 0 (NS905V)
R018 1-216-864-11 SHORT CHIP 0 (NS905V)
R019 1-216-864-11 SHORT CHIP 0 (NS905V)
R020 1-216-864-11 SHORT CHIP 0 (NS905V)
R021 1-216-833-11 METAL CHIP 10K 5% 1/10W
(EXCEPT NS705V)
R026 1-216-821-11 METAL CHIP 1K 5% 1/10W
(NS905V)
R028 1-216-864-11 SHORT CHIP 0 (NS905V)
R029 1-216-864-11 SHORT CHIP 0 (NS705V)
R102 1-216-809-11 METAL CHIP 100 5% 1/10W
R104 1-216-789-11 METAL CHIP 2.2 5% 1/10W
(NS705V/NS755V)
R106 1-216-797-11 METAL CHIP 10 5% 1/10W
R107 1-216-845-11 METAL CHIP 100K 5% 1/10W
R108 1-216-864-11 SHORT CHIP 0
R109 1-216-797-11 METAL CHIP 10 5% 1/10W
R110 1-216-821-11 METAL CHIP 1K 5% 1/10W
R111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R112 1-216-845-11 METAL CHIP 100K 5% 1/10W
R113 1-216-837-11 METAL CHIP 22K 5% 1/10W
R114 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R115 1-216-821-11 METAL CHIP 1K 5% 1/10W
R117 1-216-833-11 METAL CHIP 10K 5% 1/10W
R118 1-216-833-11 METAL CHIP 10K 5% 1/10W
R119 1-216-801-11 METAL CHIP 22 5% 1/10W
R120 1-216-801-11 METAL CHIP 22 5% 1/10W
R121 1-216-797-11 METAL CHIP 10 5% 1/10W
R122 1-216-801-11 METAL CHIP 22 5% 1/10W
