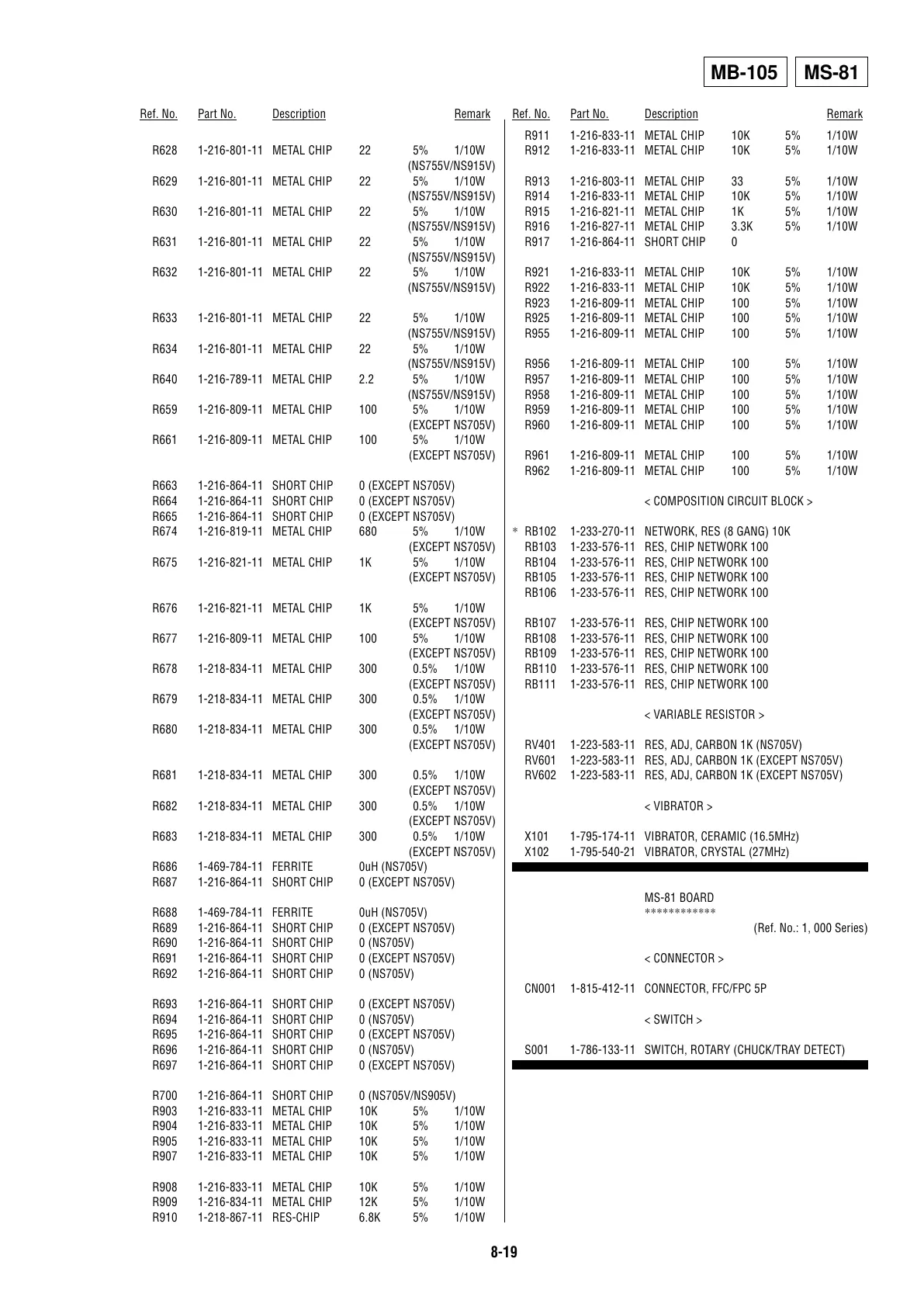

8-19
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R628 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R629 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R630 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R631 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R632 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R633 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R634 1-216-801-11 METAL CHIP 22 5% 1/10W
(NS755V/NS915V)
R640 1-216-789-11 METAL CHIP 2.2 5% 1/10W
(NS755V/NS915V)
R659 1-216-809-11 METAL CHIP 100 5% 1/10W
(EXCEPT NS705V)
R661 1-216-809-11 METAL CHIP 100 5% 1/10W
(EXCEPT NS705V)
R663 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R664 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R665 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R674 1-216-819-11 METAL CHIP 680 5% 1/10W
(EXCEPT NS705V)
R675 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EXCEPT NS705V)
R676 1-216-821-11 METAL CHIP 1K 5% 1/10W
(EXCEPT NS705V)
R677 1-216-809-11 METAL CHIP 100 5% 1/10W
(EXCEPT NS705V)
R678 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R679 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R680 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R681 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R682 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R683 1-218-834-11 METAL CHIP 300 0.5% 1/10W
(EXCEPT NS705V)
R686 1-469-784-11 FERRITE 0uH (NS705V)
R687 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R688 1-469-784-11 FERRITE 0uH (NS705V)
R689 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R690 1-216-864-11 SHORT CHIP 0 (NS705V)
R691 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R692 1-216-864-11 SHORT CHIP 0 (NS705V)
R693 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R694 1-216-864-11 SHORT CHIP 0 (NS705V)
R695 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R696 1-216-864-11 SHORT CHIP 0 (NS705V)
R697 1-216-864-11 SHORT CHIP 0 (EXCEPT NS705V)
R700 1-216-864-11 SHORT CHIP 0 (NS705V/NS905V)
R903 1-216-833-11 METAL CHIP 10K 5% 1/10W
R904 1-216-833-11 METAL CHIP 10K 5% 1/10W
R905 1-216-833-11 METAL CHIP 10K 5% 1/10W
R907 1-216-833-11 METAL CHIP 10K 5% 1/10W
R908 1-216-833-11 METAL CHIP 10K 5% 1/10W
R909 1-216-834-11 METAL CHIP 12K 5% 1/10W
R910 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R911 1-216-833-11 METAL CHIP 10K 5% 1/10W
R912 1-216-833-11 METAL CHIP 10K 5% 1/10W
R913 1-216-803-11 METAL CHIP 33 5% 1/10W
R914 1-216-833-11 METAL CHIP 10K 5% 1/10W
R915 1-216-821-11 METAL CHIP 1K 5% 1/10W
R916 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R917 1-216-864-11 SHORT CHIP 0
R921 1-216-833-11 METAL CHIP 10K 5% 1/10W
R922 1-216-833-11 METAL CHIP 10K 5% 1/10W
R923 1-216-809-11 METAL CHIP 100 5% 1/10W
R925 1-216-809-11 METAL CHIP 100 5% 1/10W
R955 1-216-809-11 METAL CHIP 100 5% 1/10W
R956 1-216-809-11 METAL CHIP 100 5% 1/10W
R957 1-216-809-11 METAL CHIP 100 5% 1/10W
R958 1-216-809-11 METAL CHIP 100 5% 1/10W
R959 1-216-809-11 METAL CHIP 100 5% 1/10W
R960 1-216-809-11 METAL CHIP 100 5% 1/10W
R961 1-216-809-11 METAL CHIP 100 5% 1/10W
R962 1-216-809-11 METAL CHIP 100 5% 1/10W
< COMPOSITION CIRCUIT BLOCK >
* RB102 1-233-270-11 NETWORK, RES (8 GANG) 10K
RB103 1-233-576-11 RES, CHIP NETWORK 100
RB104 1-233-576-11 RES, CHIP NETWORK 100
RB105 1-233-576-11 RES, CHIP NETWORK 100
RB106 1-233-576-11 RES, CHIP NETWORK 100
RB107 1-233-576-11 RES, CHIP NETWORK 100
RB108 1-233-576-11 RES, CHIP NETWORK 100
RB109 1-233-576-11 RES, CHIP NETWORK 100
RB110 1-233-576-11 RES, CHIP NETWORK 100
RB111 1-233-576-11 RES, CHIP NETWORK 100
< VARIABLE RESISTOR >
RV401 1-223-583-11 RES, ADJ, CARBON 1K (NS705V)
RV601 1-223-583-11 RES, ADJ, CARBON 1K (EXCEPT NS705V)
RV602 1-223-583-11 RES, ADJ, CARBON 1K (EXCEPT NS705V)
< VIBRATOR >
X101 1-795-174-11 VIBRATOR, CERAMIC (16.5MHz)
X102 1-795-540-21 VIBRATOR, CRYSTAL (27MHz)
MS-81 BOARD
************
(Ref. No.: 1, 000 Series)
< CONNECTOR >
CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P
< SWITCH >
S001 1-786-133-11 SWITCH, ROTARY (CHUCK/TRAY DETECT)
MB-105 MS-81
