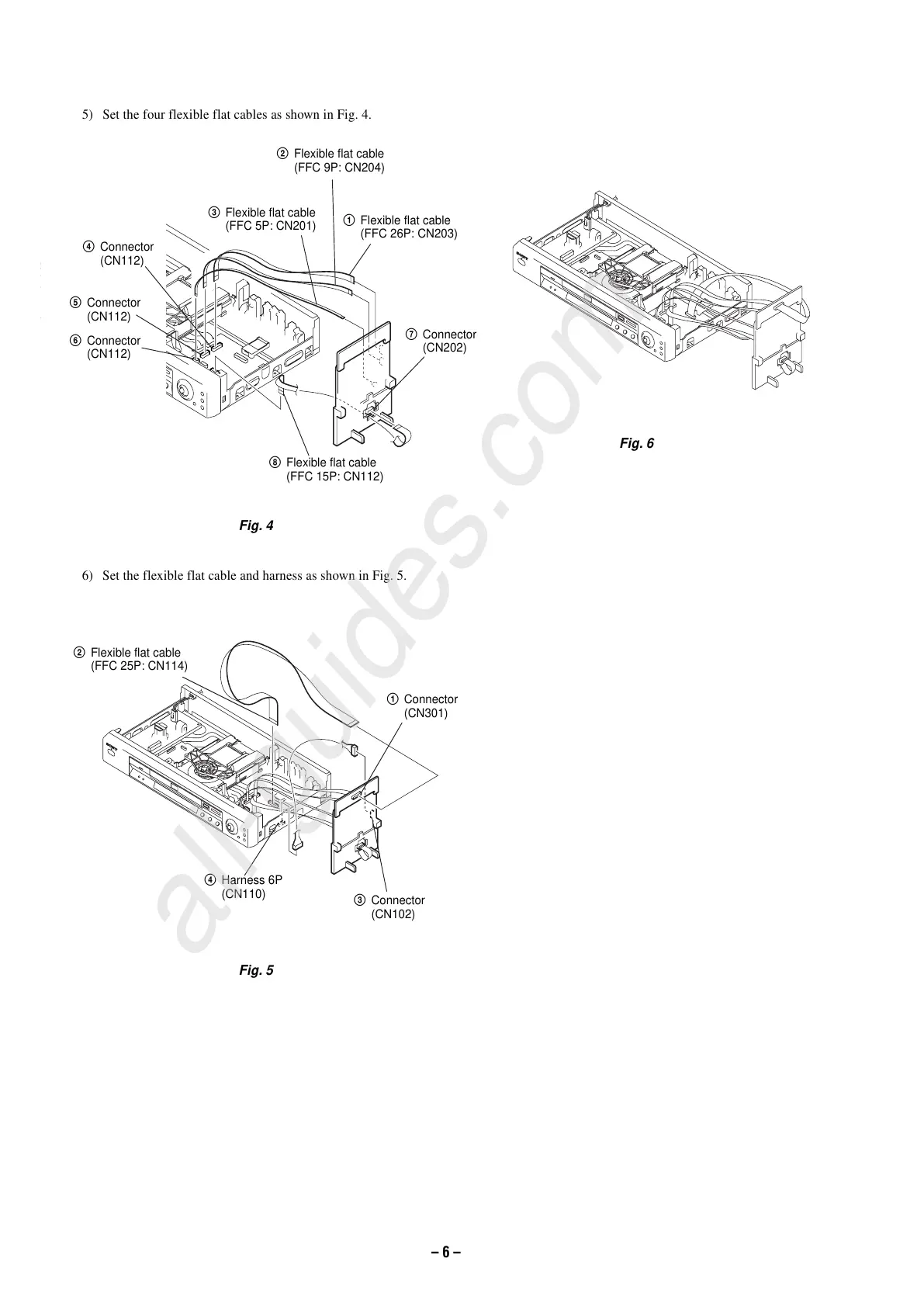

5) Set the four flexible flat cables as shown in Fig. 4.
Fig. 4
6) Set the flexible flat cable and harness as shown in Fig. 5.
Fig. 5
7 Connector
(CN202)
1 Flexible flat cable
(FFC 26P: CN203)
8 Flexible flat cable
(FFC 15P: CN112)
2 Flexible flat cable
(FFC 9P: CN204)
3 Flexible flat cable
(FFC 5P: CN201)
4 Connector
(CN112)
5 Connector
(CN112)
6 Connector
(CN112)
1 Connector
(CN301)
2 Flexible flat cable
(FFC 25P: CN114)
3 Connector
(CN102)
4 Harness 6P
(CN110)
Fig. 6
