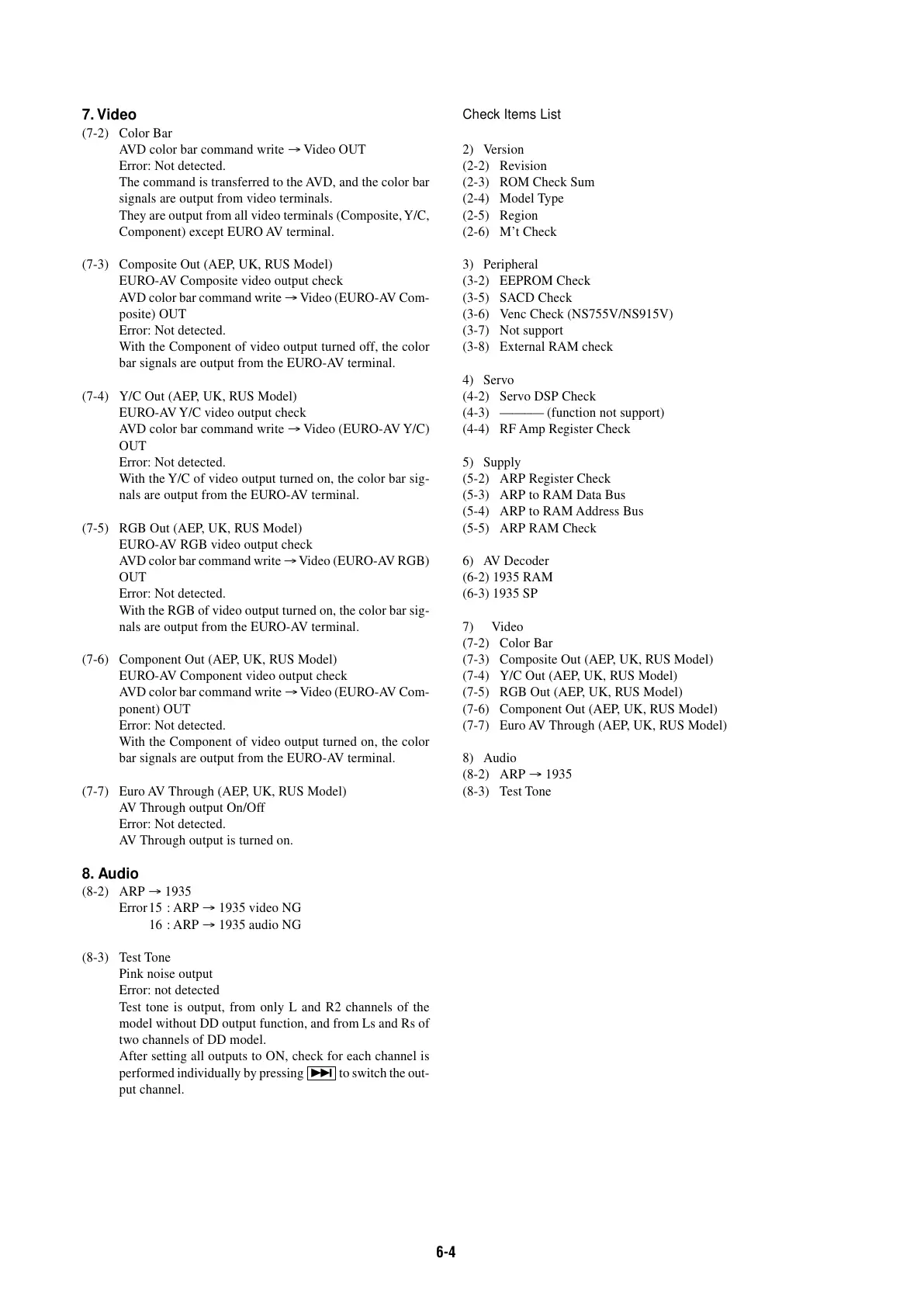

6-4
7. Video
(7-2) Color Bar
AVD color bar command write → Video OUT
Error: Not detected.
The command is transferred to the AVD, and the color bar
signals are output from video terminals.
They are output from all video terminals (Composite, Y/C,
Component) except EURO AV terminal.
(7-3) Composite Out (AEP, UK, RUS Model)
EURO-AV Composite video output check
AVD color bar command write → Video (EURO-AV Com-
posite) OUT
Error: Not detected.
With the Component of video output turned off, the color
bar signals are output from the EURO-AV terminal.
(7-4) Y/C Out (AEP, UK, RUS Model)
EURO-AV Y/C video output check
AVD color bar command write → Video (EURO-AV Y/C)
OUT
Error: Not detected.
With the Y/C of video output turned on, the color bar sig-
nals are output from the EURO-AV terminal.
(7-5) RGB Out (AEP, UK, RUS Model)
EURO-AV RGB video output check
AVD color bar command write → Video (EURO-AV RGB)
OUT
Error: Not detected.
With the RGB of video output turned on, the color bar sig-
nals are output from the EURO-AV terminal.
(7-6) Component Out (AEP, UK, RUS Model)
EURO-AV Component video output check
AVD color bar command write → Video (EURO-AV Com-
ponent) OUT
Error: Not detected.
With the Component of video output turned on, the color
bar signals are output from the EURO-AV terminal.
(7-7) Euro AV Through (AEP, UK, RUS Model)
AV Through output On/Off
Error: Not detected.
AV Through output is turned on.
8. Audio
(8-2) ARP → 1935
Error15 : ARP → 1935 video NG
16 : ARP → 1935 audio NG
(8-3) Test Tone
Pink noise output
Error: not detected
Test tone is output, from only L and R2 channels of the
model without DD output function, and from Ls and Rs of
two channels of DD model.
After setting all outputs to ON, check for each channel is
performed individually by pressing > to switch the out-
put channel.
Check Items List
2) Version
(2-2) Revision
(2-3) ROM Check Sum
(2-4) Model Type
(2-5) Region
(2-6) M’t Check
3) Peripheral
(3-2) EEPROM Check
(3-5) SACD Check
(3-6) Venc Check (NS755V/NS915V)
(3-7) Not support
(3-8) External RAM check
4) Servo
(4-2) Servo DSP Check
(4-3) ––––––– (function not support)
(4-4) RF Amp Register Check
5) Supply
(5-2) ARP Register Check
(5-3) ARP to RAM Data Bus
(5-4) ARP to RAM Address Bus
(5-5) ARP RAM Check
6) AV Decoder
(6-2) 1935 RAM
(6-3) 1935 SP
7) Video
(7-2) Color Bar
(7-3) Composite Out (AEP, UK, RUS Model)
(7-4) Y/C Out (AEP, UK, RUS Model)
(7-5) RGB Out (AEP, UK, RUS Model)
(7-6) Component Out (AEP, UK, RUS Model)
(7-7) Euro AV Through (AEP, UK, RUS Model)
8) Audio
(8-2) ARP → 1935
(8-3) Test Tone
