HT-ST9
12
Note: Follow the disassembly procedure in the numerical order given.

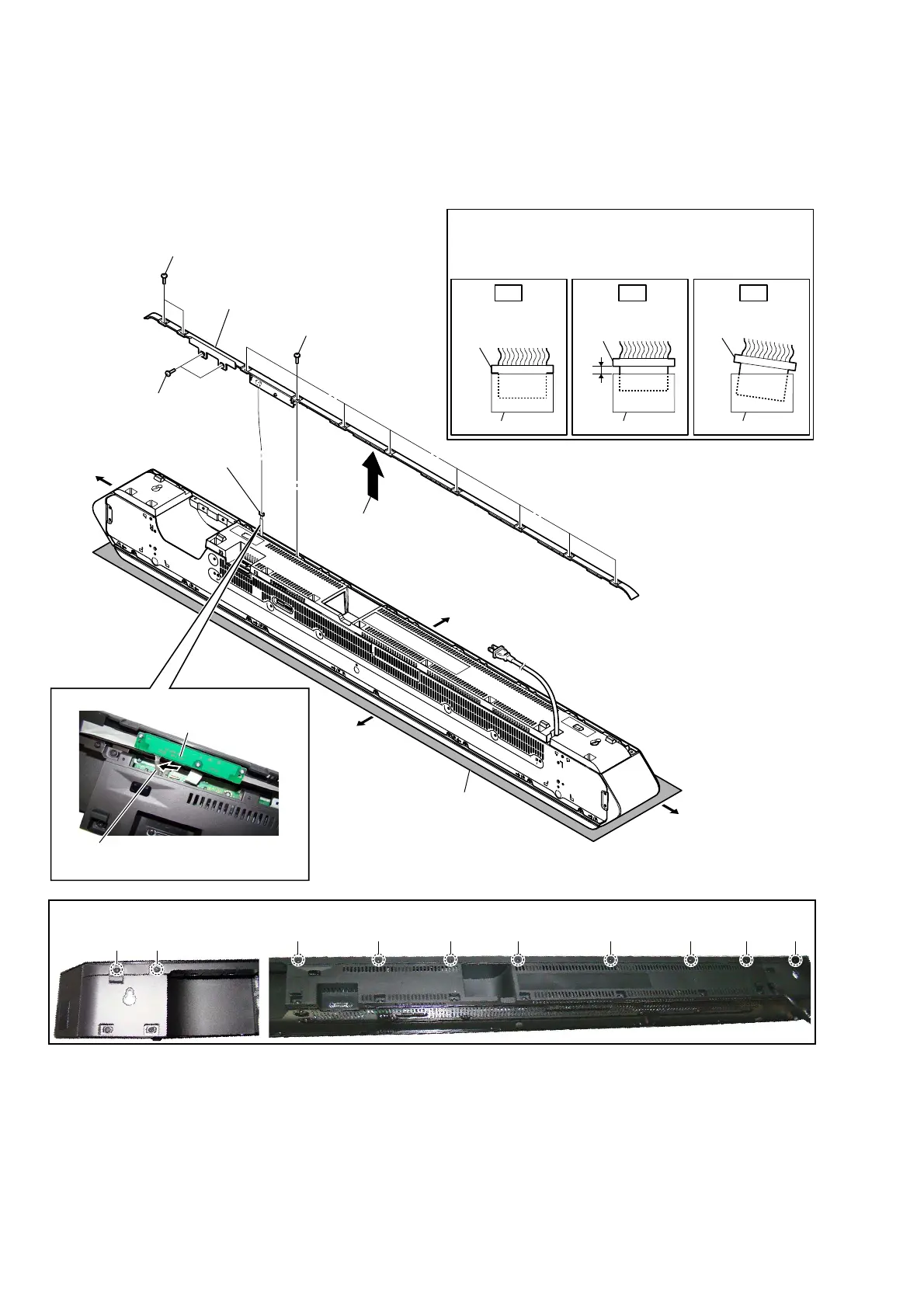

2-2. COVER (REAR) BLOCK
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
How to install the connector
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
6
cover (rear) block
– Rear view –
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
3 eight screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
2 two step screws
(BVTP3 u 8)
4
Lift up the cover (rear) block
in the direction of the arrow.
5 KEY board
connector
(CN1901)
:ire settinJ
KEY board
Note 2:
When installing screws (BVTP3 × 8), follow the installing procedure in the numerical order given.
1
678
9 0
2 3 4 5
Right side
Top side
Left side
Bottom side
Note 3:
When installing the cover (rear) block,
push the KEY board cable into the unit.
To Next Page
