Sony SA-ST9 - 6 Exploded Views; Rear Panel Section

73
HT-ST9
SECTION 6
EXPLODED VIEWS
1 4-477-465-21 HI-RES LABEL
2 4-537-542-01 STEP SCREW B3X6
3 X-2591-445-1 PANEL, REAR (R) ASSY
4 4-559-566-01 CUSHION (REAR)
5 X-2590-752-1 PANEL, REAR (L) ASSY
6 3-087-053-01 +BVTP2.6 (3CR)
7 A-2058-288-A KEY BOARD, COMPLETE
8 4-546-567-01 COVER (REAR) (New type) (See Note)
8 X-2591-446-2 COVER (REAR) ASSY (Including cushion (T05))
(Former type) (See Note)
9 4-567-311-01 SCREW, STEP +BVTP3X8
10 X-2590-755-1 BUTTON (VOL) ASSY
11 X-2590-754-1 BUTTON (REAR) ASSY
12 A-2058-292-A REPEATER_REP2 BOARD, COMPLETE
13 4-218-254-02 SCREW, +PWH B2.6
14 A-2054-816-A REPEATER_REP1 BOARD, COMPLETE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

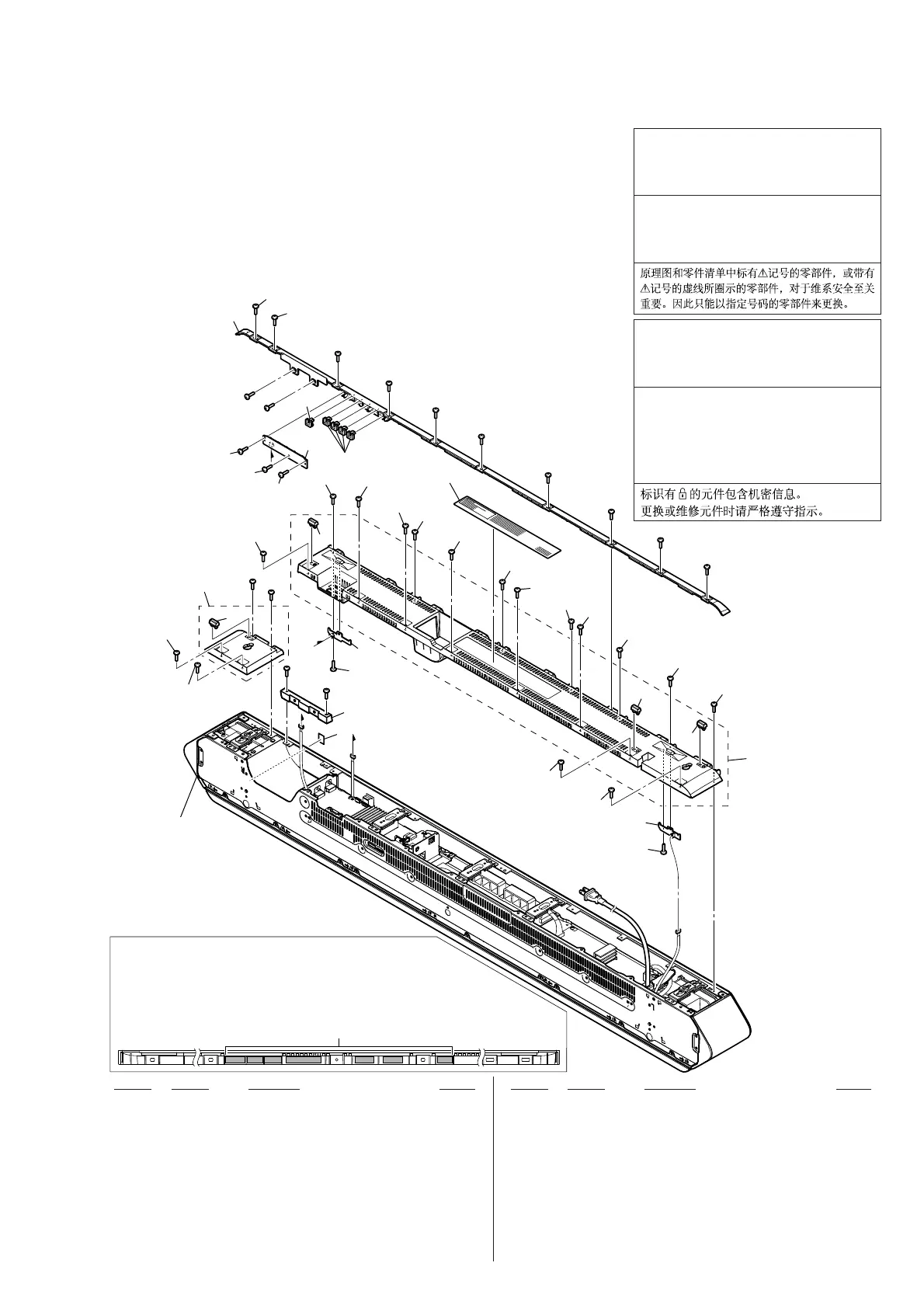

6-1. REAR PANEL SECTION
• Rear bottom view
side panel section
2
2
13
13
14
12
2
2
2
2
2
2
2
2
2
3
4
4
4
4
#1
#1
#1
#1
not supplied
not supplied
1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
2
2
2
2
2
2
5
6
6
6
7
8
9
9
10
11
A
A
B
B
Note:
Cushion (T05) on the cover (rear) has been deleted from the
midway of production. When replacing new parts (Ref. No. 8),
please check the presence or absence of the cushion (T05) and
replace for the same parts.
Former type : There is a cushion (T05).
New type : There is no cushion (T05).
Ver. 1.1
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
