Sony SA-ST9 - Loudspeaker (SP1, SP2) (L-Ch)-2

HT-ST9
40

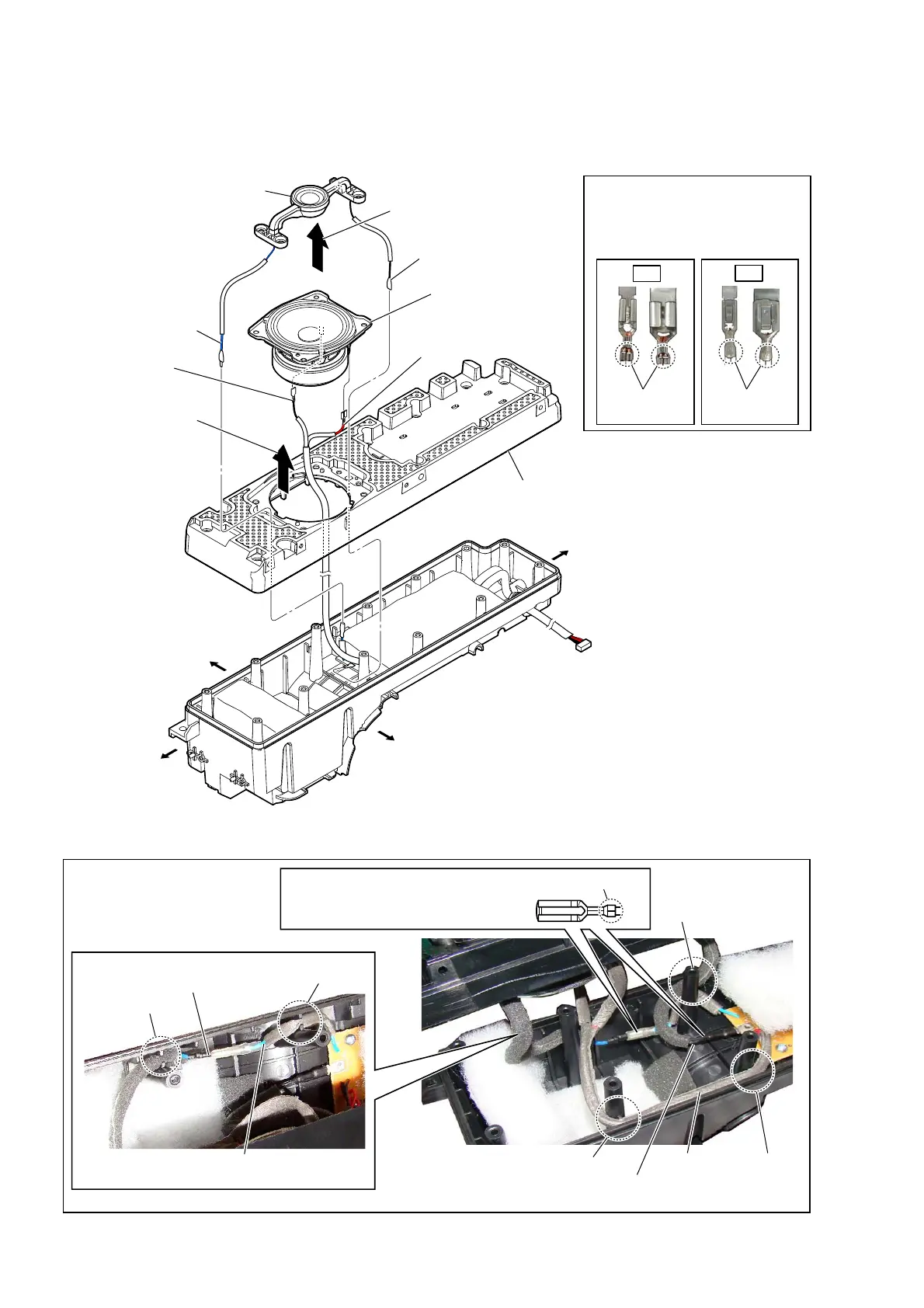

2-32. LOUDSPEAKER (SP1, SP2) (L-ch)-2
– Left speaker block front view –
groove
screw boss
terminal [blue]
(tweeter)
– Cabinet (L) block top view – speaker wire
(woofer)
groove
terminal [black]
(tweeter)
4 loudspeaker (6.5 cm)
(woofer (front Lch))
(SP2)
3 terminal
(narrow side)
[black]
3 terminal (wide side)
[red]
2
Lift up the loudspeaker
(SP2) in the direction
of the arrow.
1
Lift up the loudspeaker (SP1)
in the direction of the arrow.
5 baffle (L)
6 terminal
[black]
6 terminal
[blue]
7 loudspeaker (18 mm)
(tweeter (front Lch))
(SP1)
groove
groove
terminal [blue]
(MOUNTED board)
Right side
Top side
Left side
Bottom side
Note 2:
When installing the speaker wire,
make the position of caulking of
terminals is upside.
Caulking is upside.
OK
NG
Note 1:
When installing the speaker wire,
make the position of caulking of
terminals is outside.
Caulking is
outside.
Caulking is
inside.
 Installation direction for
the woofer speaker wire
 +ow to install the speaker wire
