2-31. LOUDSPEAKER (SP1, SP2) (L-ch)-1
• Continued on 2-32 (page 40).

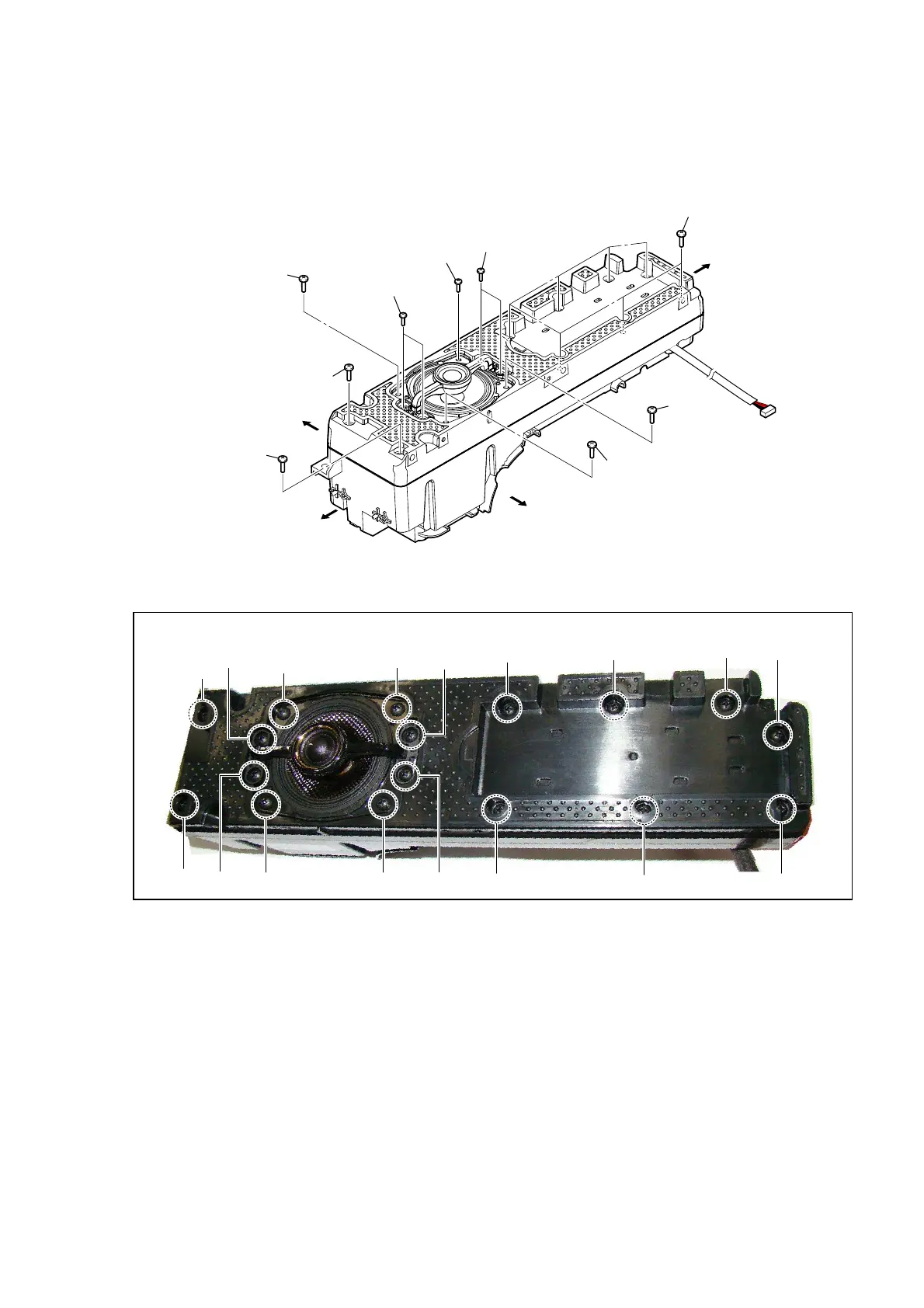

– Left speaker block front view –
Right side
Top side
Left side
Bottom side
1 two screws
(3.5)
1 two screws
(3.5)
2 screw (3.5)
2 screw (3.5)
1 screw (3.5)
2 seven screws
(3.5)
1 screw
(3.5)
1 screw
(3.5)
1 screw
(3.5)
2
qg
qh
5
7
9
qa
3
1
6
8
qs
4
0
qd
qj
qf
Note:
When installing screws, follow the installing procedure in the numerical order given.
