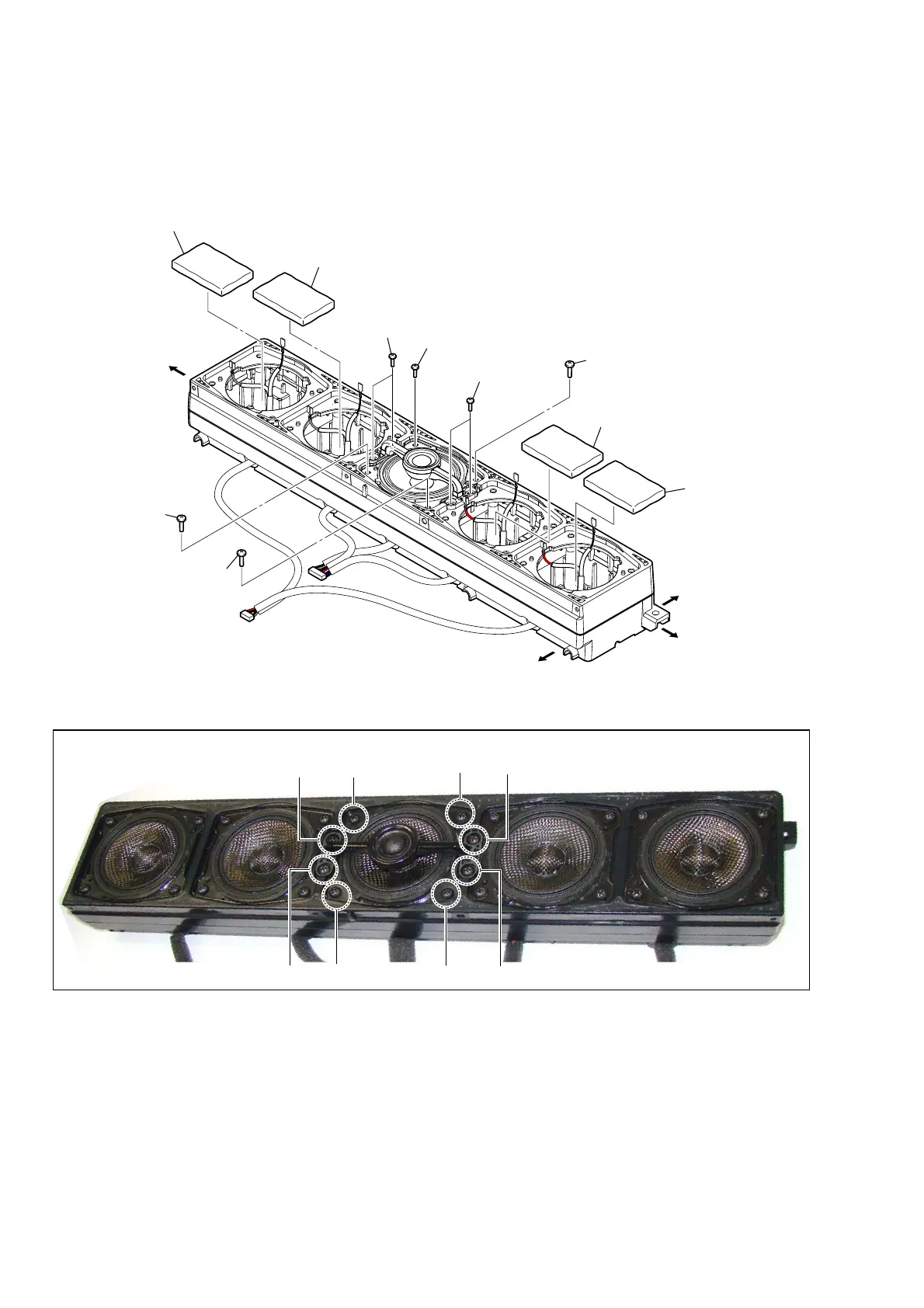

2-34. LOUDSPEAKER (SP9, SP10) (CENTER)-1
• Continued on 2-35 (page 43).
2 cushion
(absorbent)
2 cushion
(absorbent)
2 cushion
(absorbent)
2 cushion
(absorbent)
– Center speaker block front view –
Right side
Top side
Left side
Bottom side
Note:
When installing screws, follow the installing procedure in the numerical order given.
1 two screws
(3.5)
1 two screws
(3.5)
1 screw (3.5)
1 screw
(3.5)
1 screw
(3.5)
1 screw
(3.5)
6
73
2
4
1
8
5
