Sony SA-ST9 - Center Speaker Section

77
HT-ST9

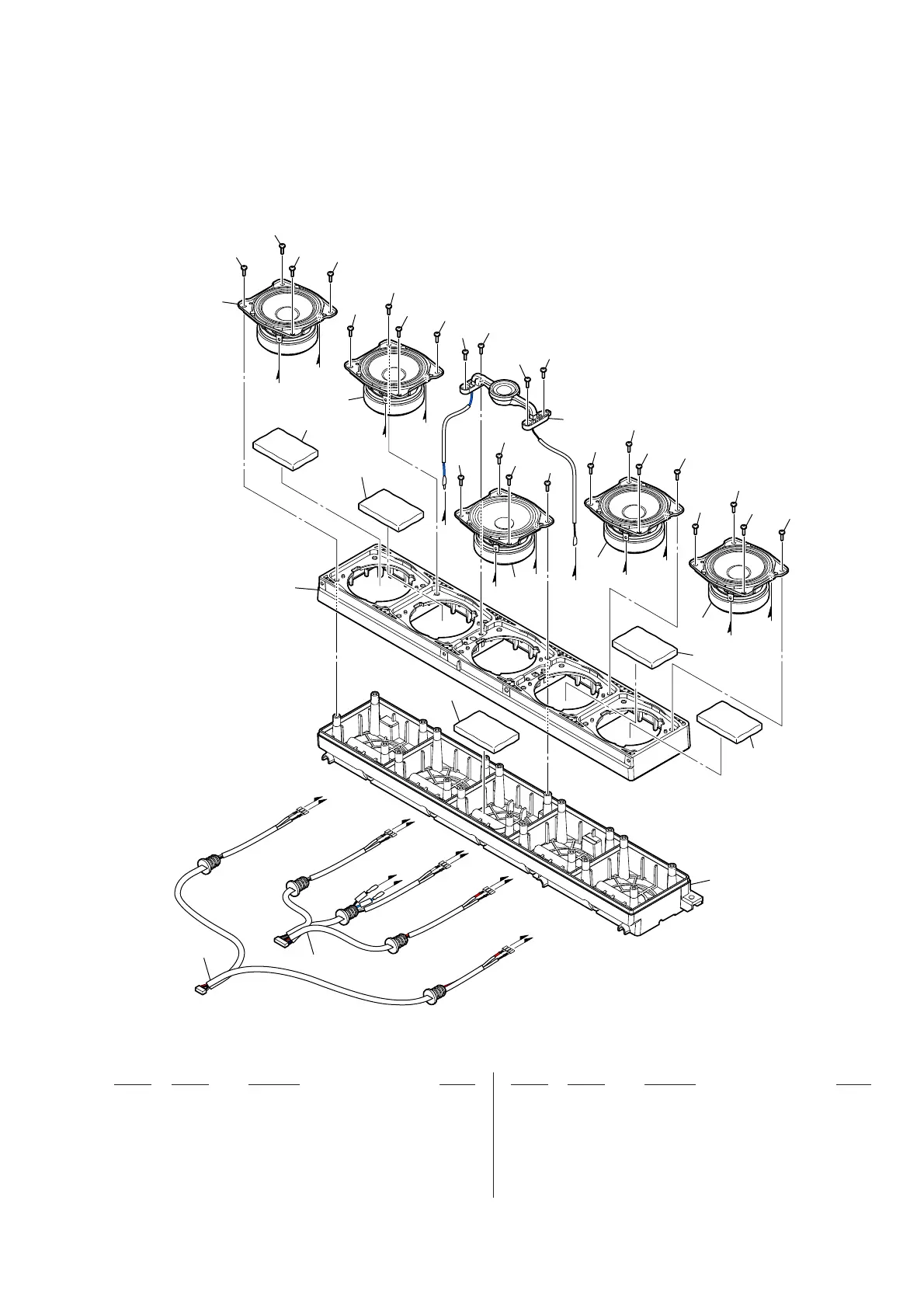

6-5. CENTER SPEAKER SECTION
• Front bottom view
201 4-986-971-02 SCREW (3.5)
SP5 1-859-076-11 LOUDSPEAKER (6.5 cm)-076-11 (Surround (R-ch))
SP6 1-859-076-11 LOUDSPEAKER (6.5 cm)-076-11 (Surround (L-ch))
SP7 1-859-076-11 LOUDSPEAKER (6.5 cm)-076-11
(Surround back (L-ch))
SP8 1-859-076-11 LOUDSPEAKER (6.5 cm)-076-11
(Surround back (R-ch))
SP9 1-859-076-21 LOUDSPEAKER (6.5 cm)-076-21 (Woofer (Center))
SP10 1-859-073-21 LOUDSPEAKER (18 mm, WITH BRIDGE)
(Tweeter (Center))
SPC3 1-848-698-11 CONNECTION CABLE WITH SPEAKER
(for Surround L/R)
SPC4 1-848-697-11 CONNECTION CABLE WITH SPEAKER
(for Center, Surround back L/R)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
SP6
not supplied
SPC4
SPC3
not supplied
O
P
S
S
R
R
Q
P
Q
H
O
H
not supplied
not supplied
not supplied
not supplied
201
201
201
201
201
201
201
201
201
201
201
201
SP7
SP9
SP10
I
J
I
J
201
201
201
201
201
201
201
201
SP8
K
L
201
201
201
201
SP5
M
N
K
L
M
N
