Sony SA-ST9 - Chassis Block-1

HT-ST9
17

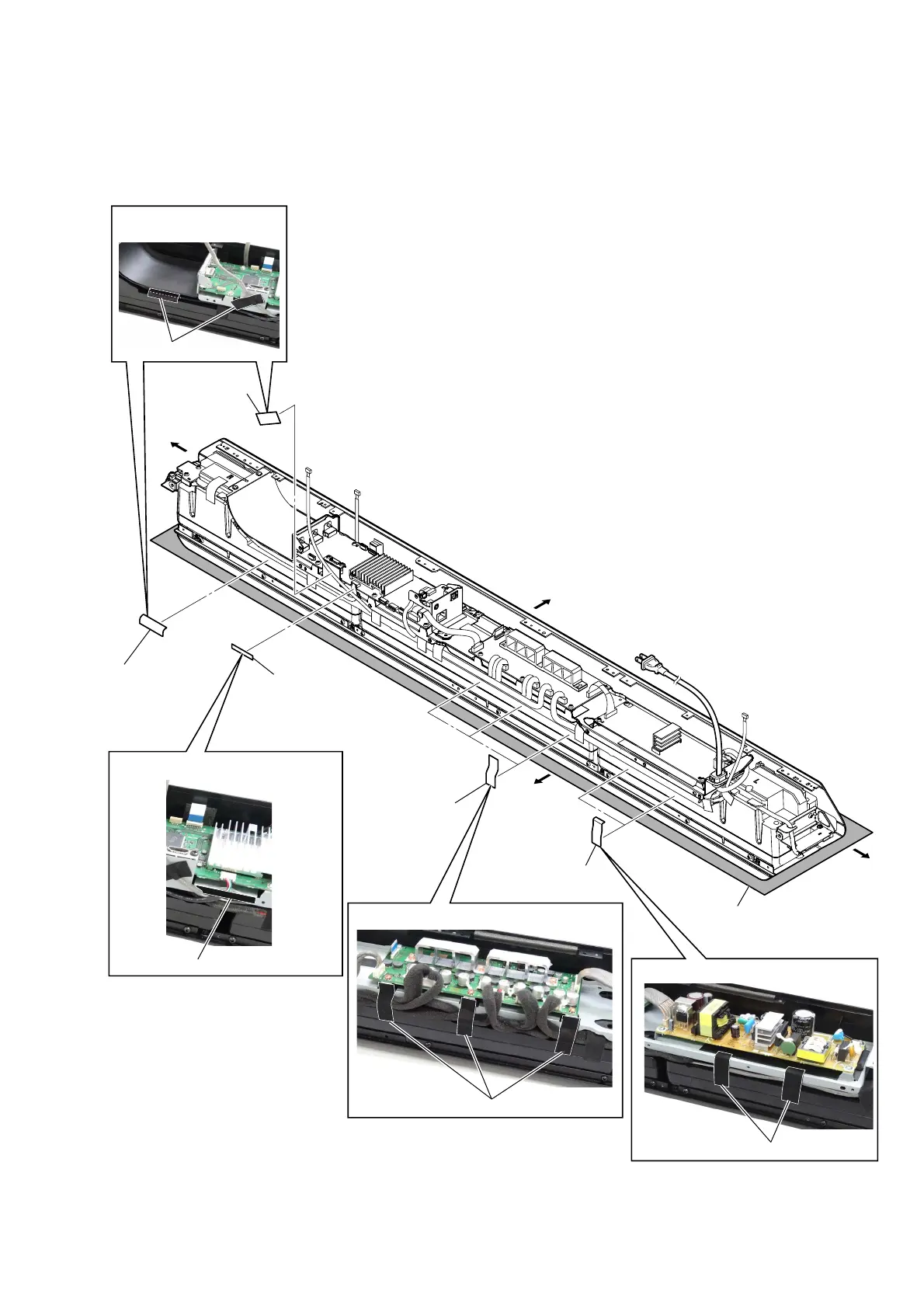

2-8. CHASSIS BLOCK-1
• Continued on 2-9 (page 18).
1
three cushions
(H15)
1
two cushions
(H15)
1
cushion (H15)
1
cushion (H15)
2
cushion (T05)
cushion (T05)
– Rear view –
Note:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
 3aVWiQJ SRViWiRQ RI WKe FXVKiRQ +
 3aVWiQJ SRViWiRQ RI WKe FXVKiRQ 7
three cushions (H15)
two cushions (H15)
two cushions (H15)
 3aVWiQJ SRViWiRQ RI WKe FXVKiRQ +
 3aVWiQJ SRViWiRQ RI
WKe FXVKiRQ +
Right side
Top side
Left side
Bottom side
