Sony SA-ST9 - Panel (Side L, R)

HT-ST9
15

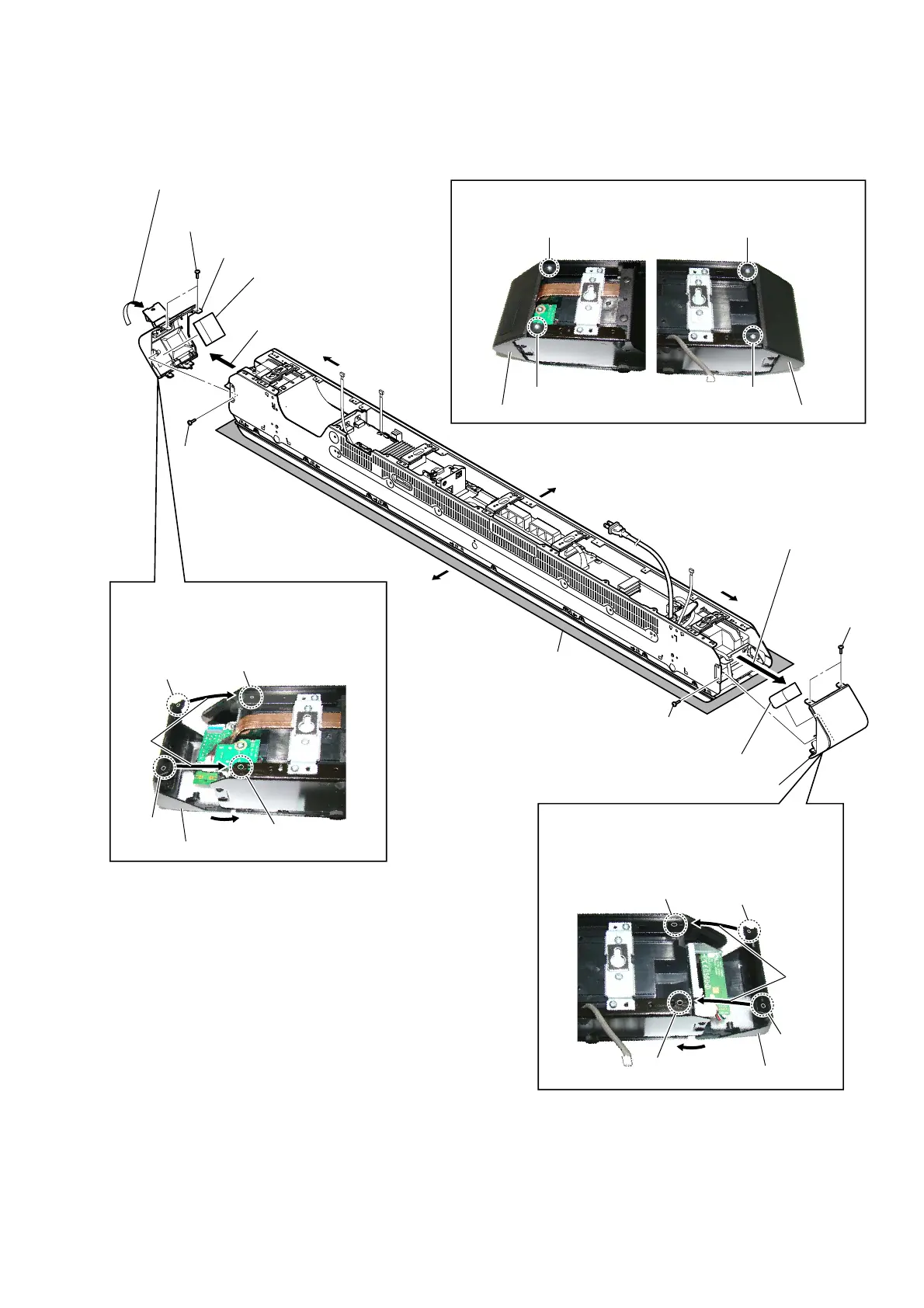

2-6. PANEL (SIDE L, R)
6
panel (side R)
panel (side R) block
3 two screws
(BVTP3 u 8)
1 Open the USB cover.
2 screw
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
3 two screws
(BVTP3 u 8)
6
panel (side L)
panel (side L) block
– Rear view –
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
Right side
Left side
Bottom side
Top side
1
2
Note 2:
When installing screws (BVTP3 × 8), follow the installing
procedure in the numerical order given.
1
2
1
2
3
4
hole
hole
hole
hole
hole
panel (side R) block
+RZWRLQVWDOOWKHSDQHOVLGH5EORFN
Note 3:
When installing the panel (side R) block,
push it in the numerical order given, and
then align the position of the holes.
+RZWRLQVWDOOWKHSDQHOVLGH/EORFN
panel (side L) block
hole
hole
hole
Note 3:
When installing the panel (side L) block,
push it in the numerical order given, and
then align the position of the holes.
5
cushion
(ABSO panel side)
4 Remove the panel (side L) block
in the direction of the arrow.
5
cushion
(ABSO panel side)
4 Remove the panel (side R) block
in the direction of the arrow.
