HT-ST9
9

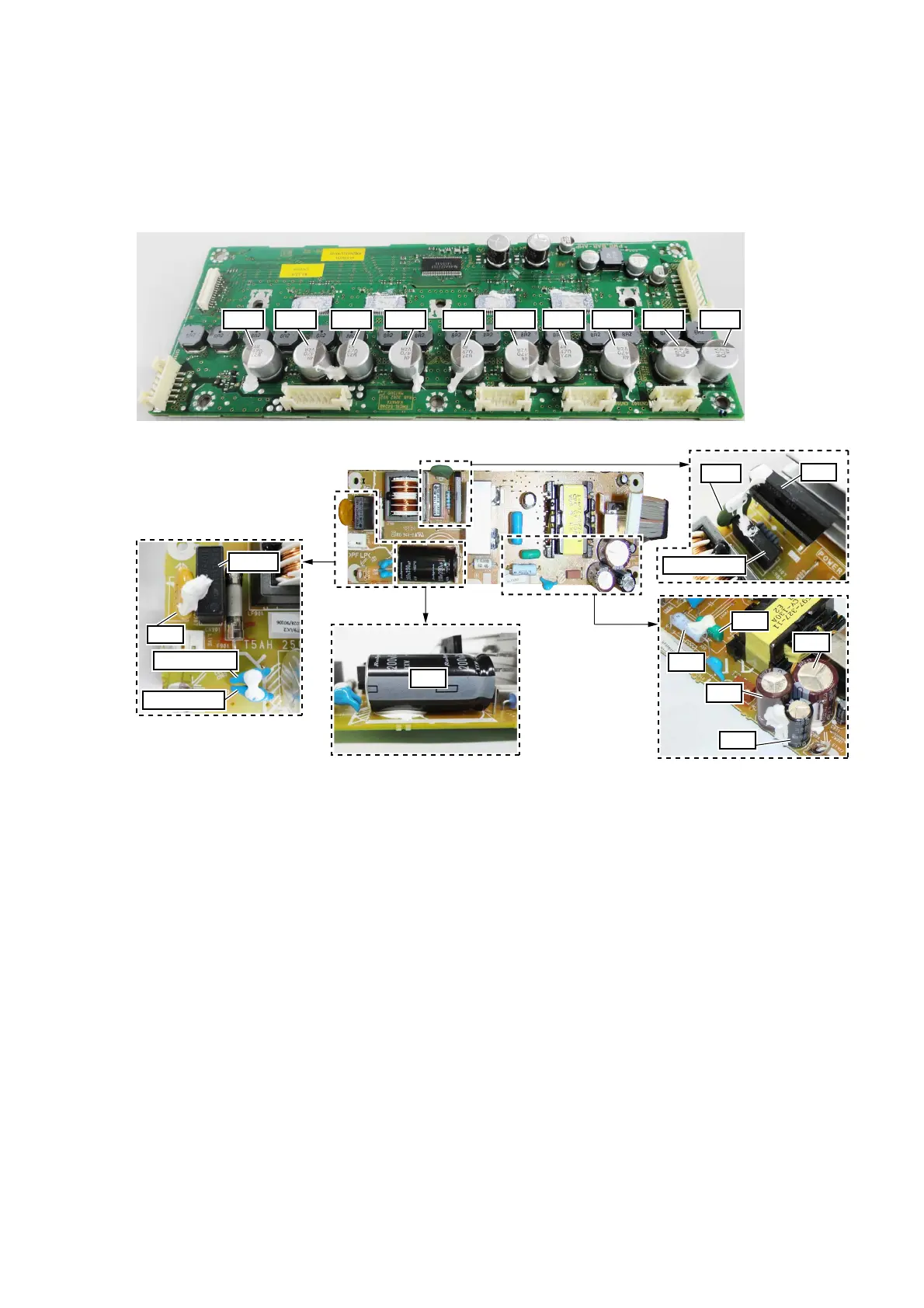

BOND FIXATION OF ELECTRIC PARTS
When the following parts are replaced, fi x the parts by using the bond (SC608Z2) (Refer to the fi gure below).
Target parts:
• AMP board: C7017, C7020, C7038, C7051, C7069, C7097, C7117, C7132, C7146, C7166
• POWER board: C902, C903, C905, C907, C914, C939, C967, C970, C988, C989, C990, C994, D901, R944, TH901, VDR901
C914
(US, Canadian and Taiwan model only)
C903 or C990
C902 or C989
VDR901
C905
D901
TH901
C939
R944
C967
C970
C994
C7166 C7146 C7132 C7117 C7097 C7069 C7051 C7038 C7020 C7017
C907 or C988
– POWER Board (Component Side) –
– AMP Board (Side A) –
– Side view –
Ver. 1.1
