45

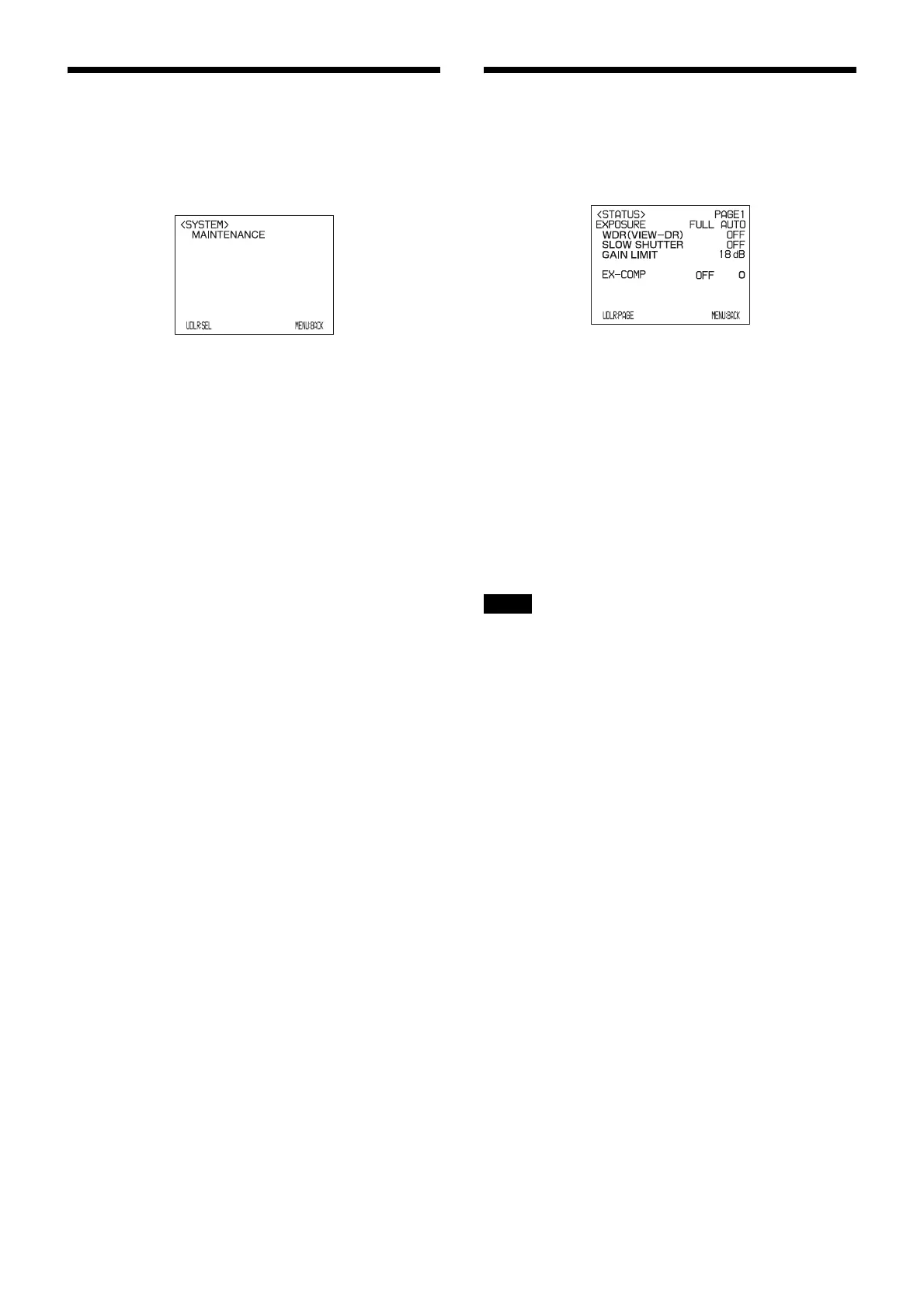

SYSTEM Menu
As this menu is for maintenance purpose, users cannot
operate it.
STATUS Menu
The STATUS menu is used to display the settings
selected with the menus.
The STATUS menu consists of PAGE1 to PAGE4.
This menu only displays the current menu settings, and
you cannot change them with this menu.
PAGE1: Shows the settings selected with the
EXPOSURE menu.
PAGE2: Items in the WHITE BALANCE menu and the
PICTURE menu
PAGE3: Shows the settings selected with the PAN TILT
ZOOM menu.
PAGE4: Settings of AUDIO mode, VIDEO mode, and
VISCA transmission baud rate
The currently functioning settings will be displayed for
the VISCA communication baud rate and VIDEO modes.
Even if you change the setting of the BAUD RATE
switch or SYSTEM SELECT switch on the rear side,
those settings will be discarded and the display does not
switch.
Note
