STR-DA5500ES
9
CAPACITOR DISCHARGE
LEAD WIRE SETTING
C2490C2491
MAIN board

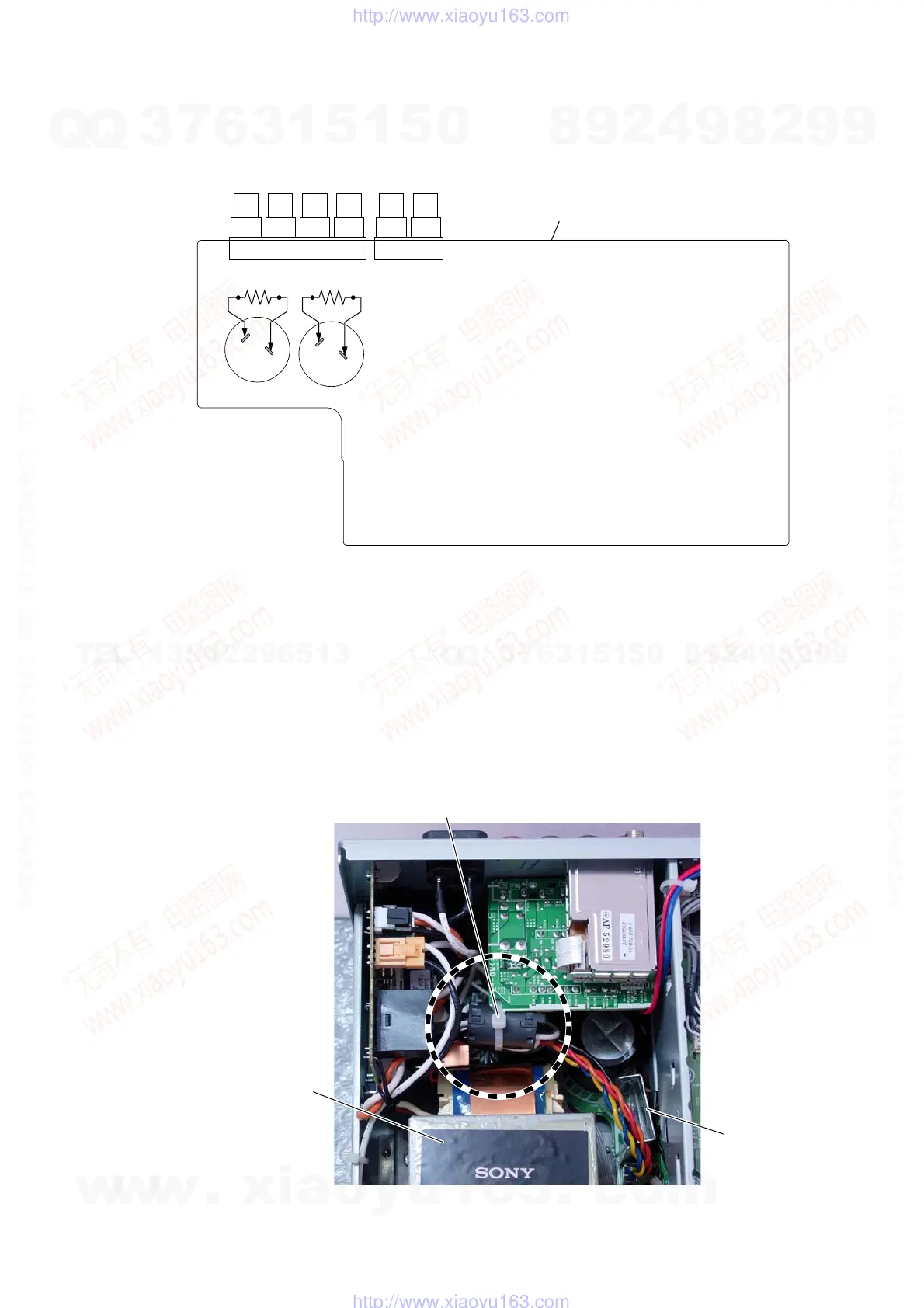

CAUTION: In checking the MAIN board, make a capacitor discharge
of C2490 or C2491 for electric shock prevention.
800 :/2 W 800 :/2 W
The lead wire must not come in contact with the power transformer and the heat sink.
ower transformer
heat sink
Please band together so that a primary side cable
cannot touch a power transformer and heat sink.
— top view —
