Sony STR-DB790 Operating Instructions

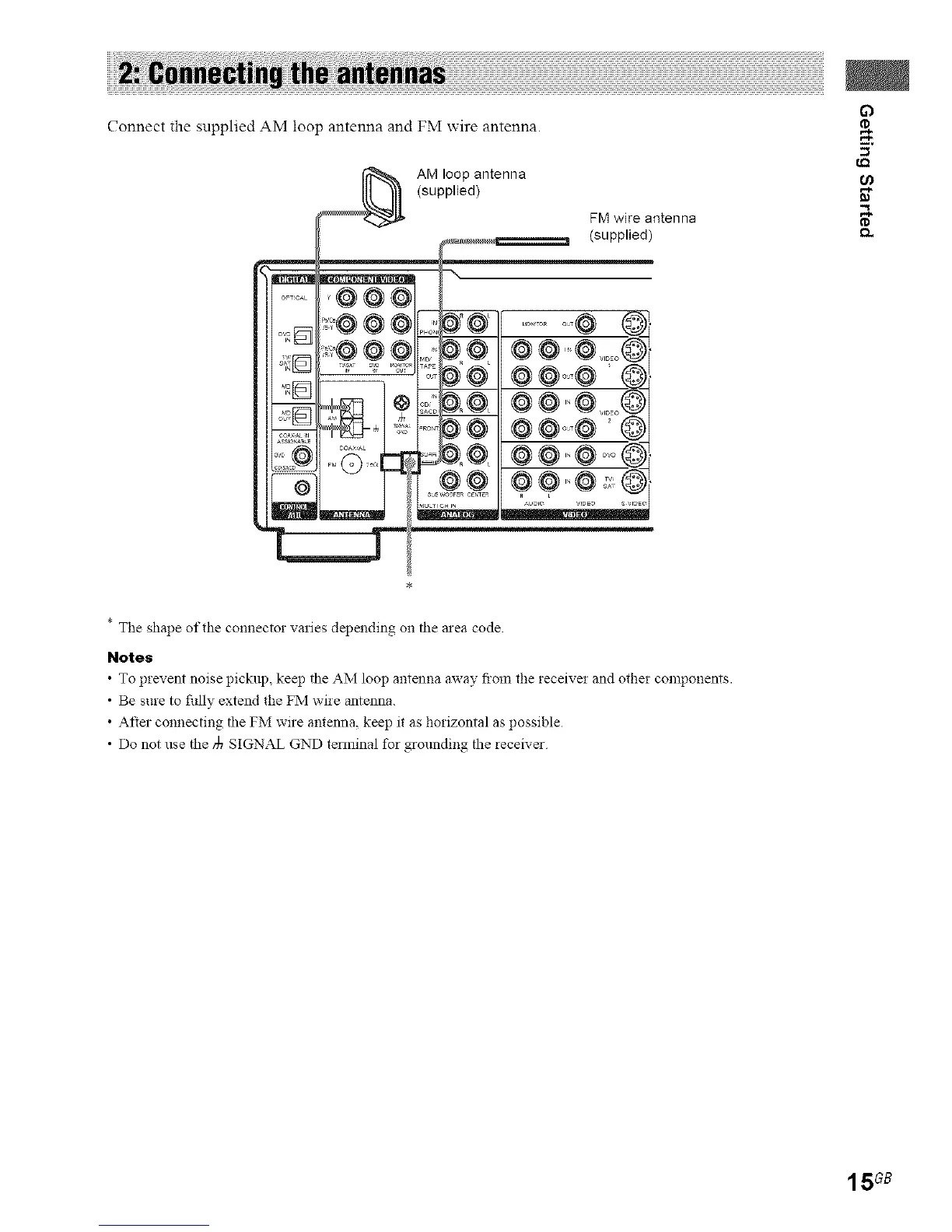

Connect the supplied AM loop antenna and FM wire antenna.
I,Q
AM loop antenna
(supplied) _"
FM wire antenna
(supplied)
* The shape of the connector varies depending on the area code
Notes
• To prevent noise pickup, keep the AM loop antenna away fimn file receiver and other components.
• Be sure to fiflly extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible
• Do not use the _ SIGNAL GND terminal for grounding the receiver
15 GB

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
