Sony STR-DB790 Operating Instructions

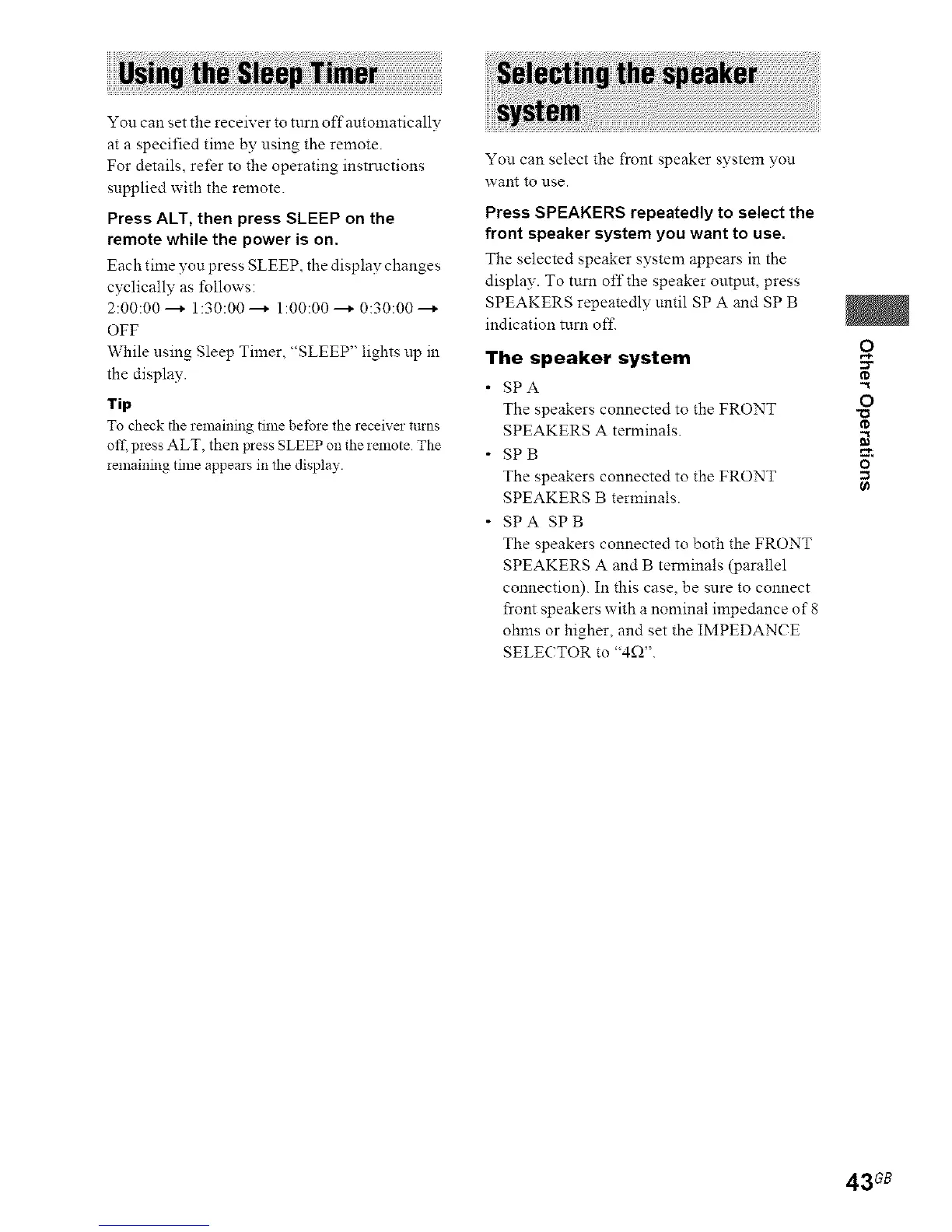

You can set the receiver to turn off automatically
at a specified time by using the remote.
For details, refer to the operating instructions
supplied with the remote.
Press ALT, then press SLEEP on the
remote while the power is on.
Each time you press SLEEP, the display changes
cyclically as l)llows:
2:00:00 ---* 1:30:00 ---* 1:00:00 ---* 0:30:00 ---*
OFF
While using Sleep Timer, "SLEEP" lights tip in
the display.
"tip
To check the remaining time before the receiver turns
off\ press ALT, then pless SLEEP on the remote The
remaining time appears in the display.
You can select the front speaker system you
want to tlse.
Press SPEAKERS repeatedly to select the
front speaker system you want to use.
The selected speaker system appears in the
display. To turn off the speaker output, press
SPEAKERS repeatedly nntil SPA and SP B
indication turn oft'.
The speaker system
• SPA
The speakers connected to the FRONT
SPEAKERS A terminals.
• SPB
The speakers connected to the FRONT
SPEAKERS B terminals.
• SPA SPB
The speakers connected to both the FRONT
SPEAKERS A and B tem_inals (parallel
connection). In this case, be sure to connect
front speakers with a nominal impedance of 8
ohms or higher, and set the IMPEDANCE
SELECTOR to "4_Y'.
o
-'t
O
"O
0_
43G8

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
