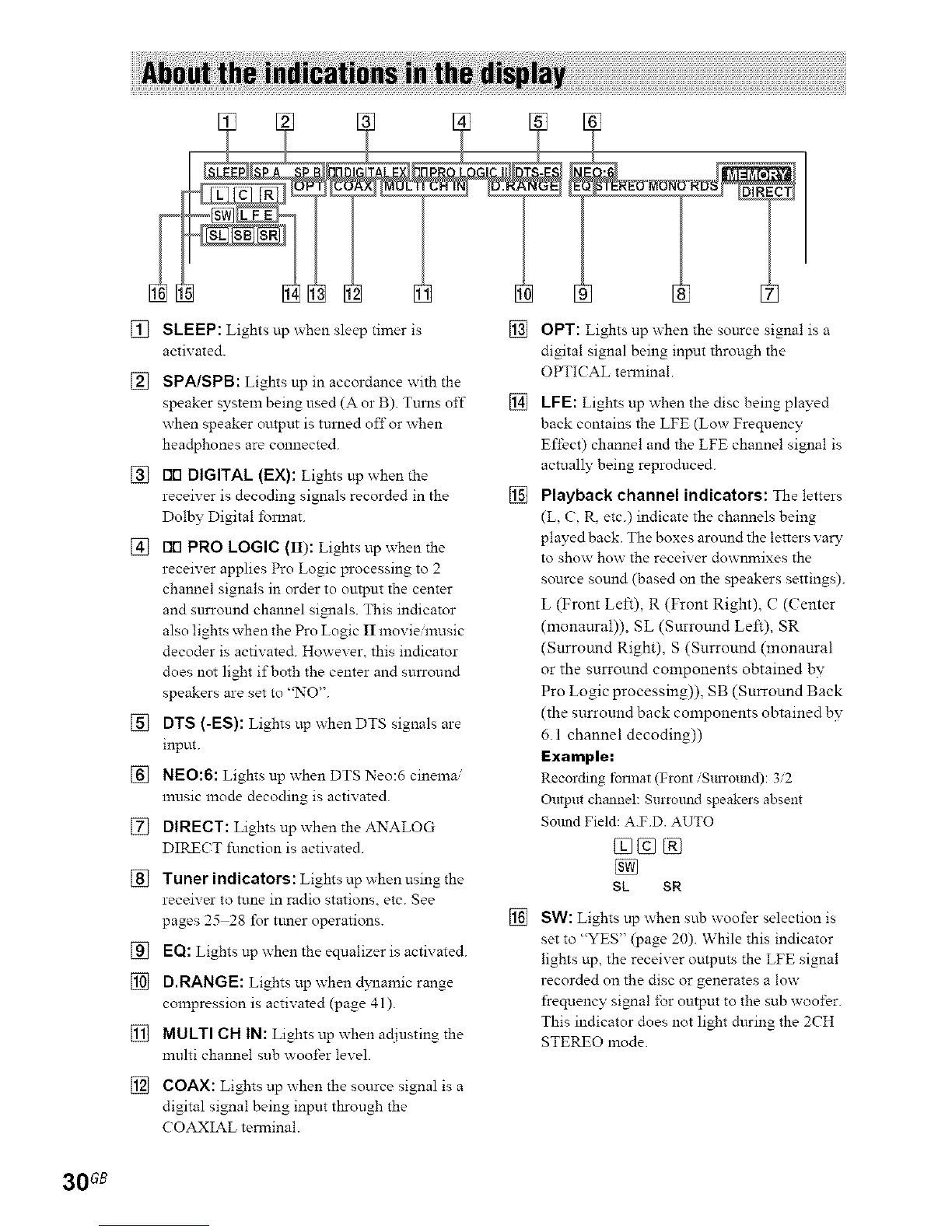

[] SLEEP: Lights up when sleep timer is
activated.
[]
SPA/SPB: Lights up in accordance with the
speaker system being used (A or B). Turns off
when speaker output is tin:ned off or _ hen
headphones are connected.
[] rlrl DIGITAL (EX): Lights up when the
receiver is decoding signals recorded in the
Dolby Digital fonnat.
[] rid PRO LOGIC (II): Lights up when the
receiver applies Pro Logic processing to 2
channel signals in order to output the center
and sttrround channel signals. This indicator
also lights when the Pro Logic II movie music
decoder is activated. However, this indicator
does not light if both the center and surround
speakers are set to "NO".
[] DTS (-ES): Lights up when DTS signals are
input.
[] NEO:6: Lights up when DTS Neo:6 cinema/
music mode decoding is activated.
[] DIRECT: Lights up when the ANALOG
DIRECT function is activated.
[]
Tuner indicators: Lights tip when using the
receiver to tune in radio stations, etc. See
pages 2528 for ttmer operations.
[] EQ: Lights up when the equalizer is activated.
[] D.RANGE: Lights up when d?alamic range
compression is activated (page 41).
[] MULTI CH IN: Lights up when ac[iusting the
multi channel sub _ oofer level.
[]
COAX: Lights up when the source signal is a
digital signal being input through the
COAXIAL terminal.
[]
OPT: Lights up when the source signal is a
digital signal being input through the
OPTICAL terminal.
[] LFE: Lights up when the disc being played
back contains the LFE (Low Frequency
Effect) channel and the LFE channel signal is
actually being reproduced.
[] Playback channel indicators: The letters
(L C R etc.) indicate the channels being
played back. The boxes around the letters vary
to show how the receiver dowmnixes the
source sound (based on the speakers settings).
L (Front Left), R (Front Right), C ((:enter
(monaural)), SL (Surromld Left), SR
(Surround Right), S (Surround (monaural
or the surround components obtained by
Pro Logic processing)), SB (Surround Back
(the stLrround back components obtained by
6.1 channel decoding))
Example:
Recording tbmlat (F!ont/Surround): 3/2
Ol_Itpl_l_ channel: Stlrrotllld speakels absent
Sound Field: A.FD. AUTO
SL SR
[] SW: Lights up when sub woofer selection is
set to "YES" (page 20). While this indicator
lights up, the receiver outputs the LFE signal
recorded on the disc or generates a low
frequency signal for output to the sub woofer.
This indicator does not light during the 2CH
STEREO mode.
30 G8
