Sony STR-DB790 Operating Instructions

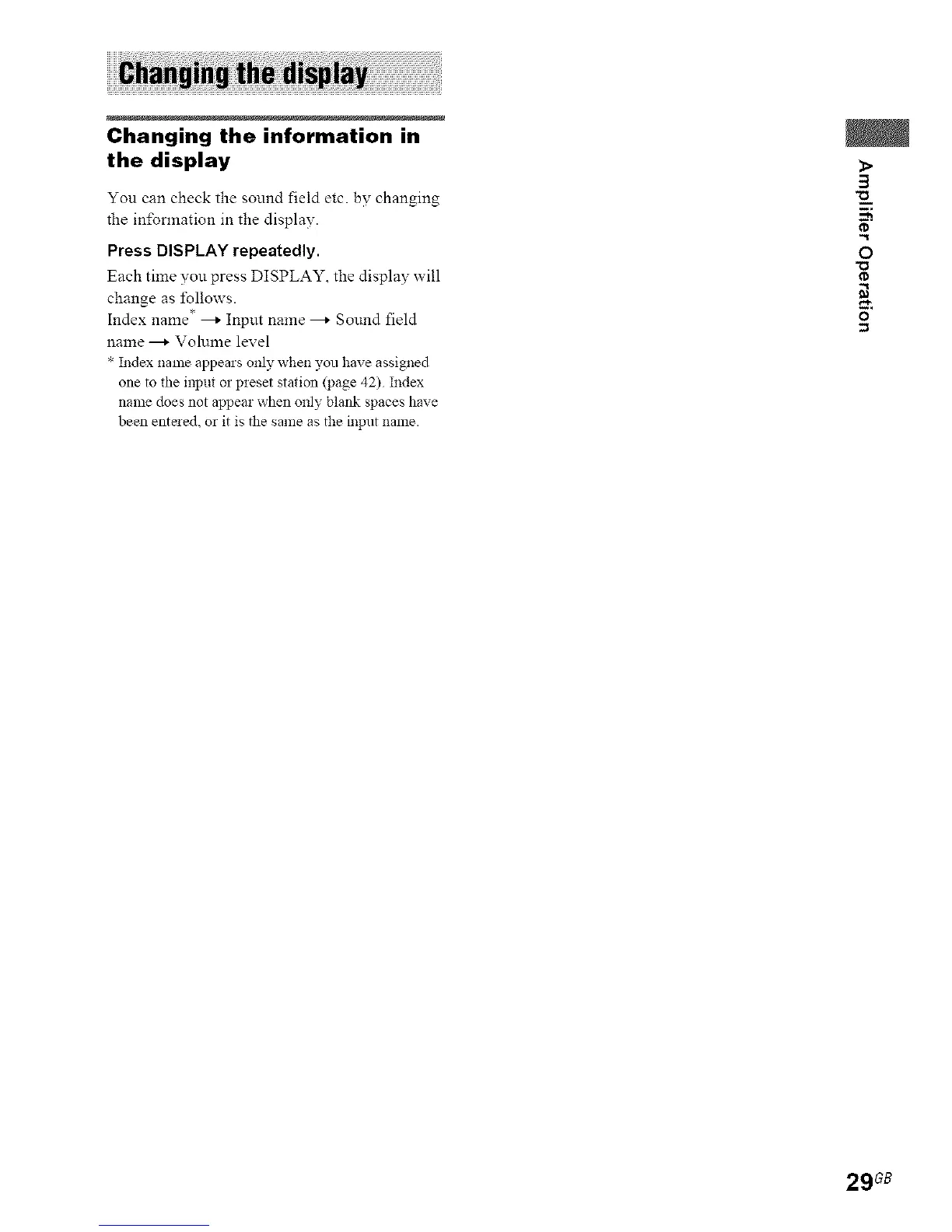

Changing the information in
the display
You can check the sound field etc. by changing
the information in the display.
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display will
change as follows.
Index name* ---* Input nmne ---* Sound field
name ---* Volume level
* Index name appears only when you have assigned
one to the input or preset station (page 42) Index
name does not appear when only blat_k spaces have
been entaed, or it is the same as the input name.
3
O
29 G8

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
