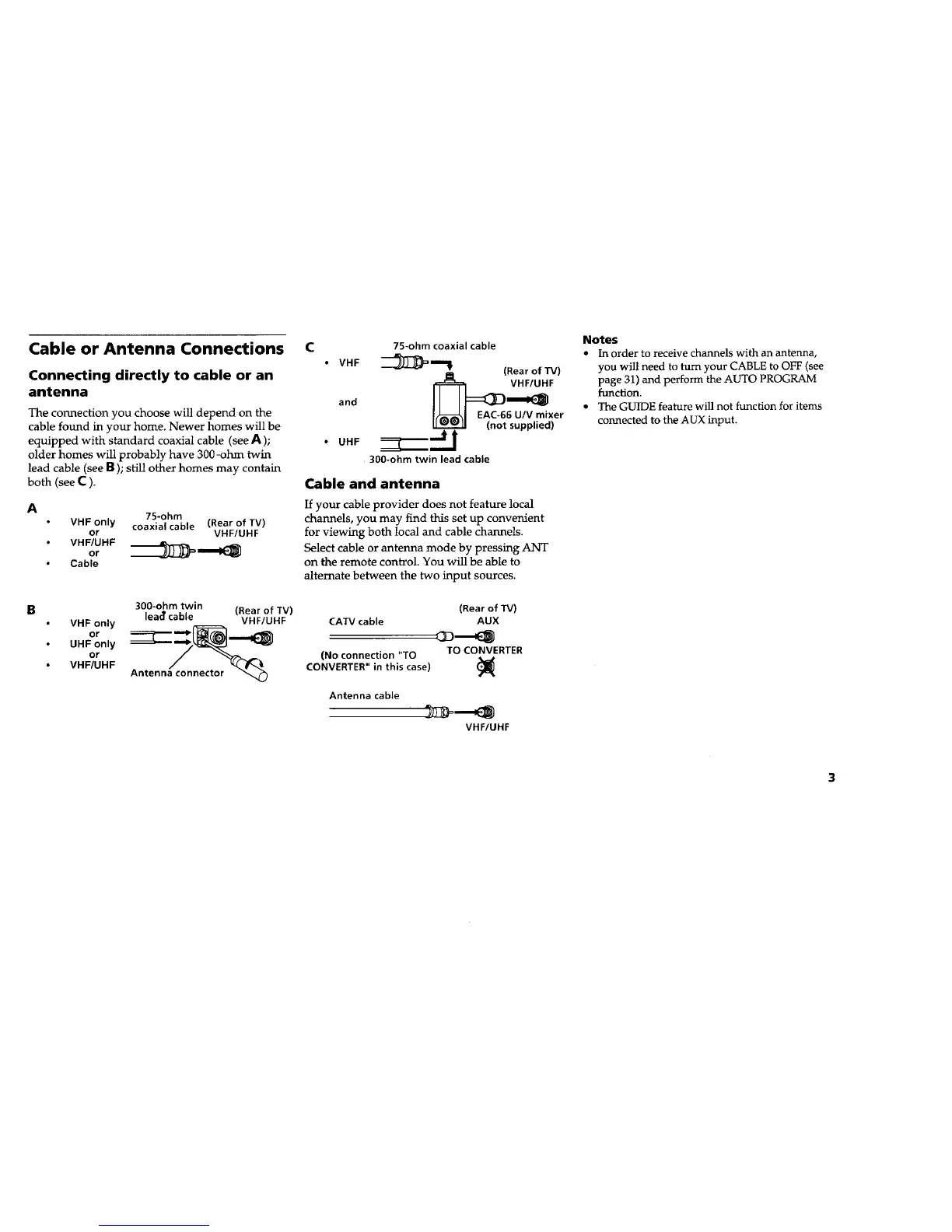

Cable or Antenna Connections c
Connecting directly to cable or an
antenna
The connection you choose will depend on the
cable found in your home. Newer homes will be
equipped with standard coaxial cable (see A );
older homes will probably have 300-ohm twin
lead cable (see B ); still other homes may contain
both (see C ).
A
75-ohm
VHF only coaxial cable {Rear of TV)
or VHF/UHF
VHF/UHF
or
Cable
B
VHF only
or
UHF only
or
VHF/UHF
300-ohm twin (Rear of TV)
leac_cable VHF/UHF
• VHF
and
UHF
75-ohm coaxial cable
--_}"_J_'_ (Rear of TVI
6 U/V mixer
supplied)
|
300-ohm twin lead cable
Cable and antenna
If your cable provider does not feature local
channels, you may find this set up convenient
for viewing both local and cable channels.
Select cable or antenna mode by pressing ANT
on the remote control. You will be able to
alternate between the two input sources.
(Rear of TV)
CATVcable AUX
(No connection "TO TO CONVERTER._,
CONVERTER"in this case) (_
Antenna cable
VHF/UHF
Notes
• In order to receive channels with an antenna,
you will need to turn your CABLE to OFF (see
page 31) and perform the AUTO PROGRAM
function.
• The GUIDE feature will not function for items
connected to the AUX input.
