88 Service manual
5. S2terminal and service commands CRANEX
®
Novus e
optotest prints optosensor values for 30 seconds
Allows L2100 to be checked. Optosensors on L2100
monitor the position of the rotating unit.
The "optotest" command displays, for 30 seconds, val-
ues that indicate the position of the L2100 board. When
you manually rotate the rotating unit the values should
change,
____________________________________________
sector 0
sector 1
sector 2
sector 3
____________________________________________
which indicates that the optosensors on the L2100
board are working and that the board is functioning cor-
rectly.
If the values do not change, the L2100 board or the
cabling is faulty.

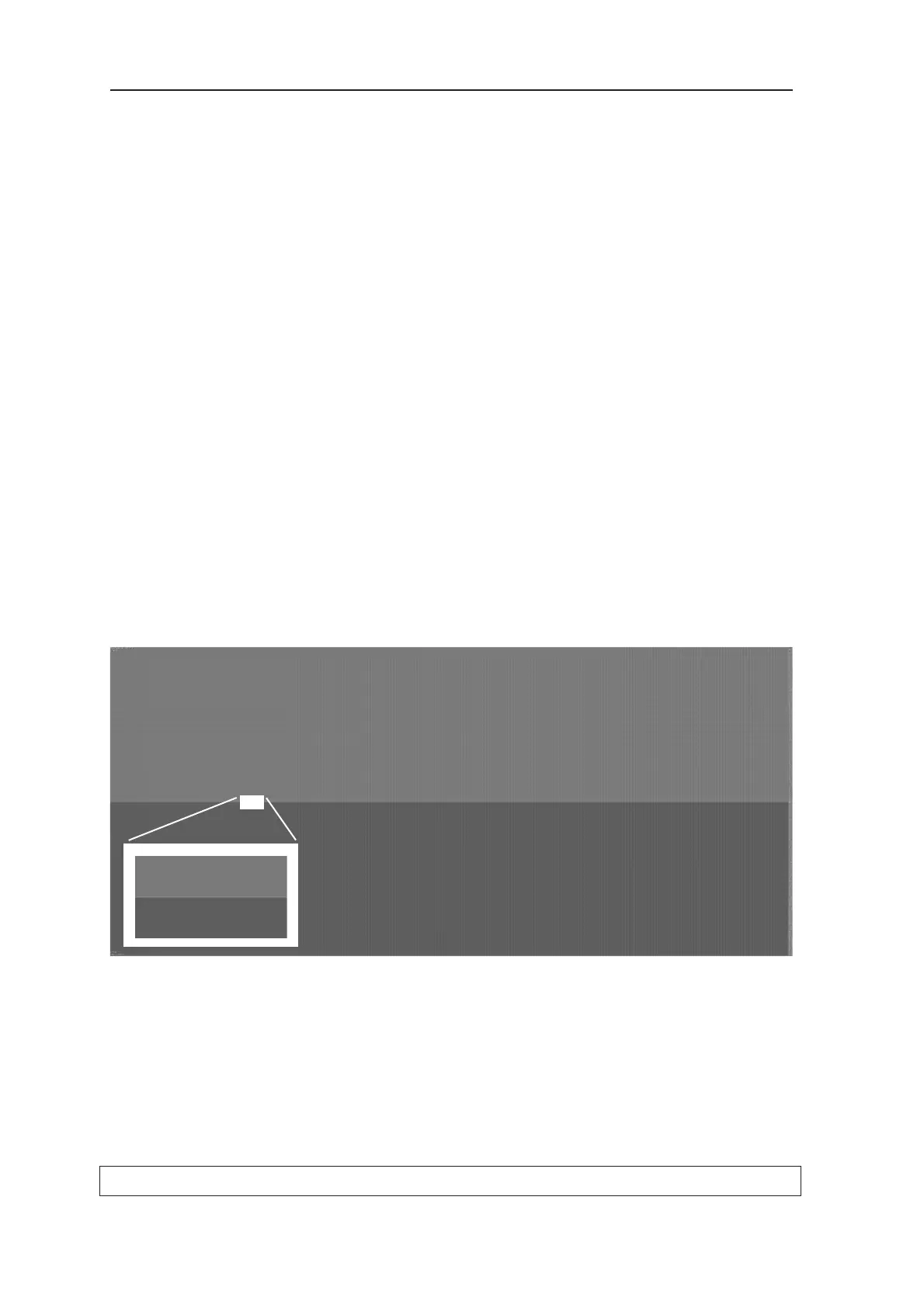

patt generates test pattern from CCD module
Produces a test pattern image from the CCD.
The pattern shows a number of two-tone gray vertical
lines. These indicate that the data lines to the CCD sen-
sor are working correctly.
