47

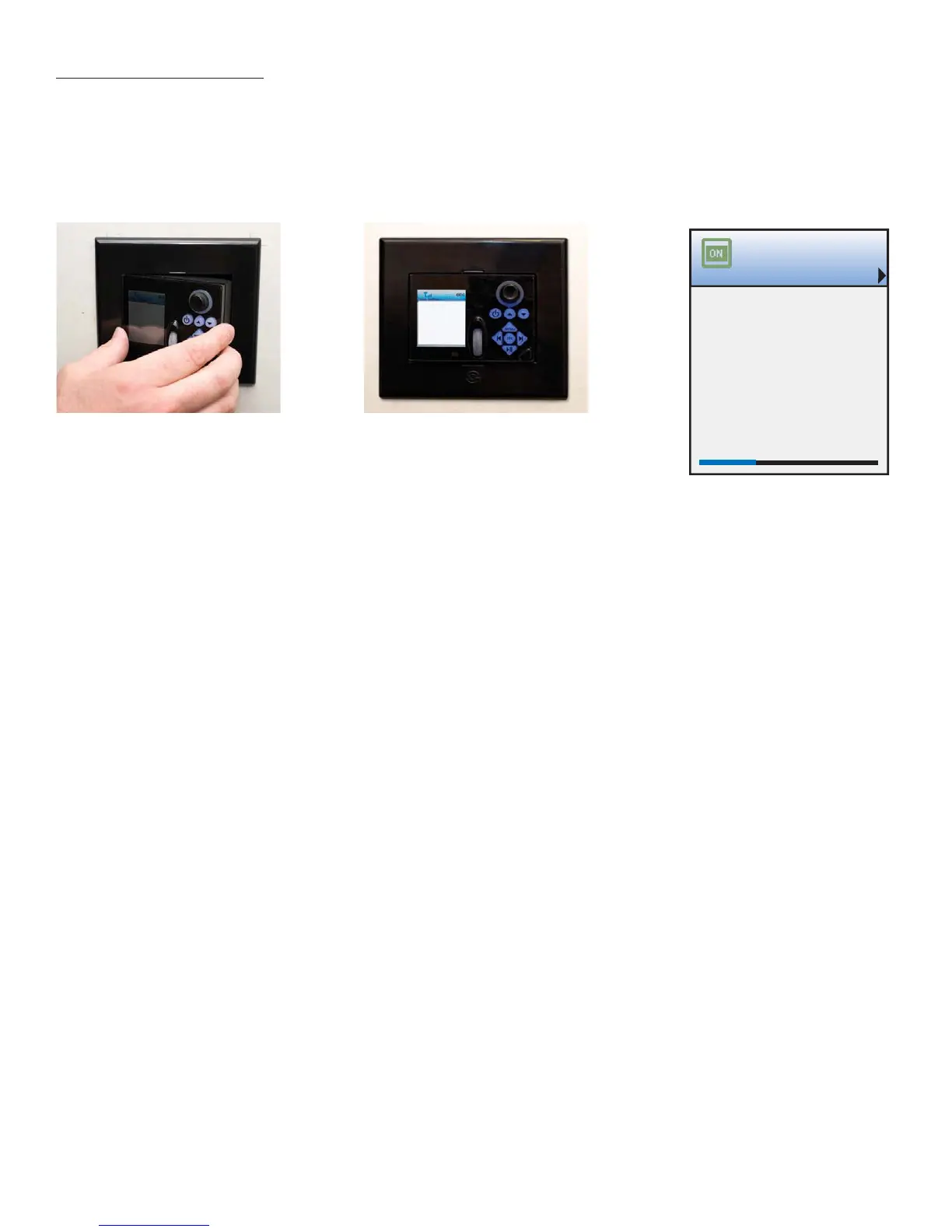

tion and battery charge or with the Table Dock for wireless communication and battery charge. When docked, the Battery
Icon turns off in the LCD header, and if docked to a Wall Dock, the RF Signal Strength Icon will turn off (Figure 46). To dock/
release a MODE Free: (Wall Dock shown for example, Table Dock uses the same technique.)
MODE Free/Wall Dock Functionality
When the MODE Free is docked to a Wall Dock:
OPERATING MODE FREE
2. Docked MODE Free. Press the
Keypad Release Button to re-
move the MODE Free from the
Wall Dock.
1. Starting from the left, insert the Wall
Dock Lock Tabs into the Lock Tab
Slots on the left side of the MODE
Free, then click the right side down
over the Locking Mechanism.
• MODE Free wireless communication is disabled and all communication with the MZC and other system components is
transmitted/received via CAT5 cable connected between the Wall Dock and the MZC Controller (MODE Free RF Signal
Strength Icon turns OFF).
• Network Settings are not available when the MODE Free is docked to a Wall Dock.
• When docked, the MODE Free assumes the ‘identity’ of the MZC Zone to which the Wall Dock is connected and auto-
matically synchronizes the zone confi guration from the MZC for that zone. The MODE Free will retain the new identity until
docked to a Wall Dock in another zone or when a Select Zone function is executed.
• When docked, the MODE Free no longer runs on battery power and is powered via the Wall Dock/CAT5 connection to
the MZC. The MODE Free battery automatically charges anytime it is docked to either a Wall Dock or Table Dock. The blue
LED on the front of the Wall Dock indicates charge. The LED turns off when the battery is fully charged.
• Given the MODE Free is being powered from the Wall Dock, the Sleep Timeout function is turned off. Sleep Timeout is a
battery charge saving function that puts the MODE Free to sleep after a designated timeout. The MODE Free must wake
up and reconnect to the wireless network after a sleep timeout. Sleep Timeout is disabled when connected to a Wall or
Table Dock also which serves to speed up system response with the MODE Free not having to wake up and reconnect to
the system as it does in wireless mode with the Sleep Timeout set.
MODE Free/Table Dock Functionality
When a MODE Free is docked to a Table Dock, it continues to function as a wireless controller, unlike when docked to a Wall
Dock. It does not change identities, but does switch to Table Dock power and charges the battery.
• When docked to a Table Dock, the MODE Free no longer runs on battery power and is powered via the Table Dock Power
Supply. The MODE Free battery automatically charges anytime it is docked to either a Wall Dock or Table Dock. The blue
LED on the front of the Table Dock indicates charge. The LED turns off when the battery is fully charged.
• When docked to a Table Dock, MODE Free continues functioning as a wireless controller.
• When docked to a Table Dock, the MODE Free does not assume a new ‘identity’. It continues with the identity assumed
with the last Wall Dock or Join Network/Select Zone function.
• When docked to a Table Dock, the MODE Free Sleep Timeout function is turned off. Sleep Timeout is a battery charge
saving function that puts the MODE Free to sleep after a designated timeout. The MODE Free must wake up and recon-
nect to the wireless network after a sleep timeout. Overriding this feature when connected to a Wall or Table Dock also
serves to speed up system response with the MODE Free not having to wake up and reconnect to the system as it does in
wireless mode with the Sleep Timeout set.
Chevelle
Wonder What’s Next
1:07 5:44
5 of 11 C
The Red
NOW PLAYING
Figure 46
MODE Free Docked Icon
