26
4-3. Setup – RECORD Mode
In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below.
Navigate through the menu items or change the settings using the mouse or the remote control.

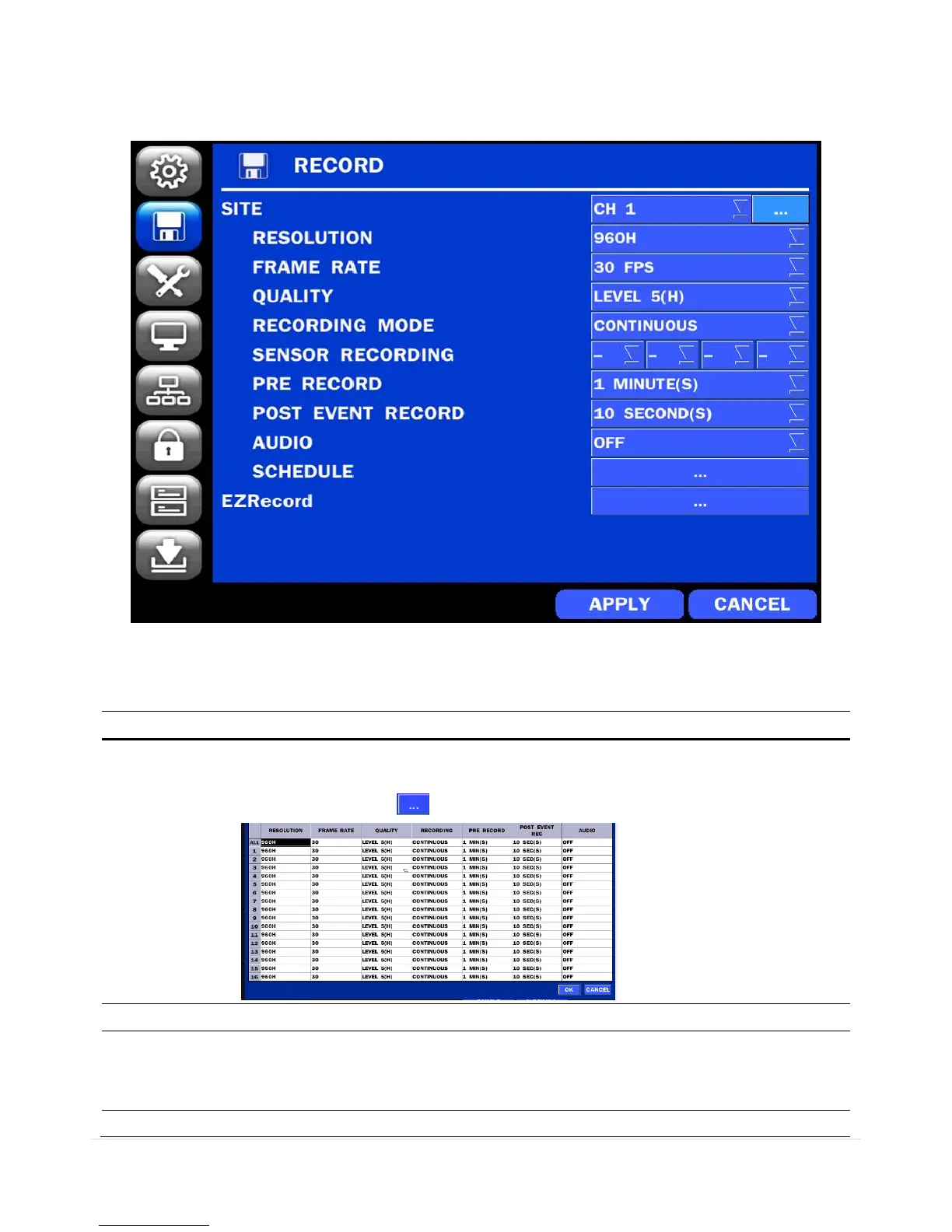

Figure 4.3.1. RECORD Setup Screen
Table 4.3.1. Menu Items in RECORD Setup Screen
Select a channel for applying the following settings using the mouse or the remote
control. To change the values of all channels, take the following steps:
Select the following to change the values of all channels.
Select 960H, D1 or CIF using the mouse or the remote control..
Set the frame rate for the specified channel. The sum of the frame rate values from
each channel cannot exceed the maximum frame rates for a specific recording
resolution.
Select the recording quality for the selected channel. Options are:
To Next Page
