SC5 Signal Conversion Installation Guide
14
Installation Guide
This installation guide shows how to prepare and power-up the SC5. Following these instructions ensures that the
instrument is working correctly, and that it can be connected to the experiment. Further steps will be explained in
detail in the chapters following this guide.
It will be assumed that the SC5 is controlled using a Nanonis RC5. Please read the RC5 manual carefully before
proceeding.
Content of delivery
When first unpacking the SC5, please check for the following items:
1. Nanonis SC5
2. BNC grounding plug
3. DEVICE RDIO cable
4. Power cord
5. Test protocol
6. User manual
These items are shown in the picture below. Note that the power cord appearance will depend on the country where
the SC5 is used (type J power cord shown).

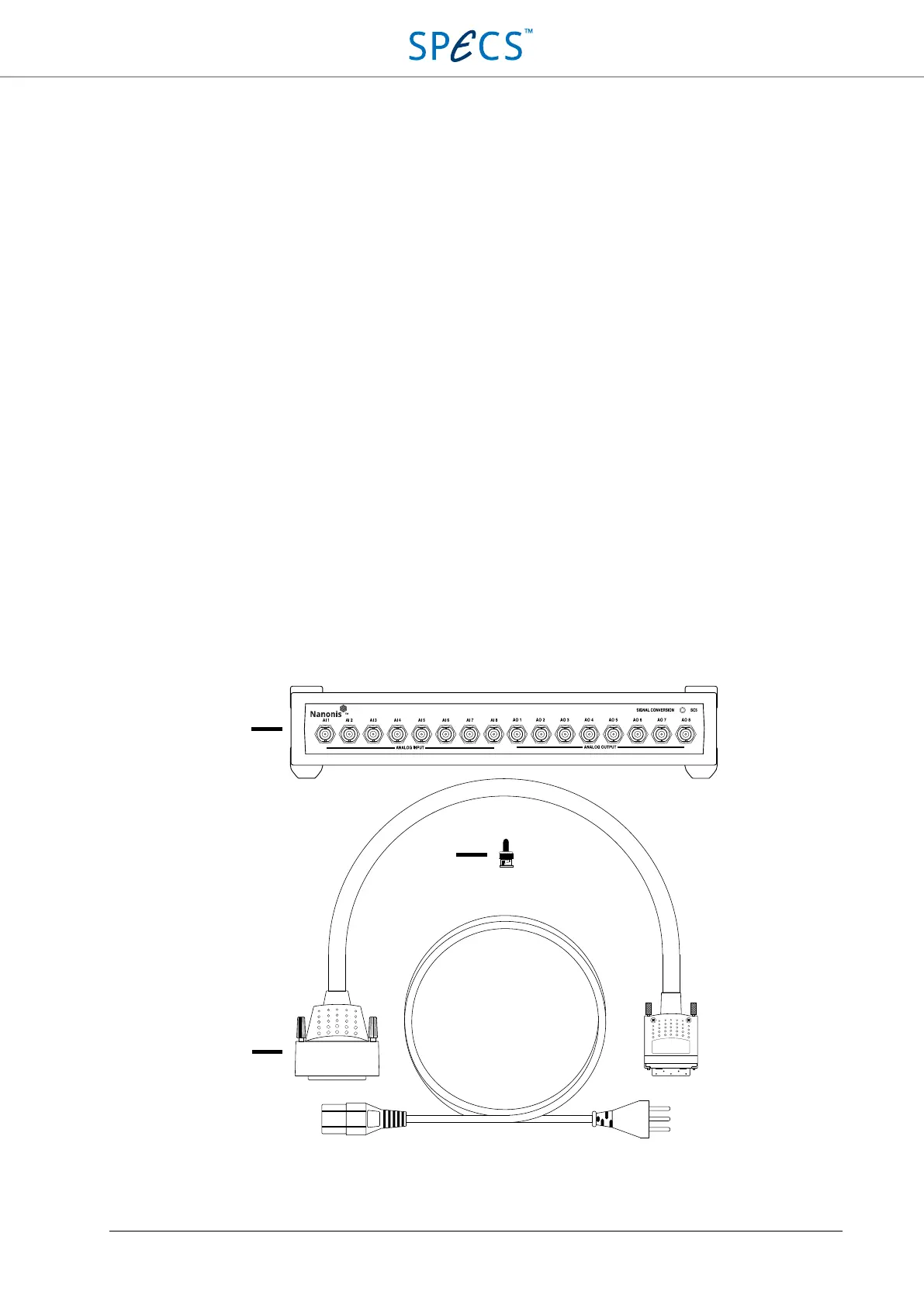

Figure 4: These items are delivered with the SC5.
