SC5 Signal Conversion Analog Outputs
27

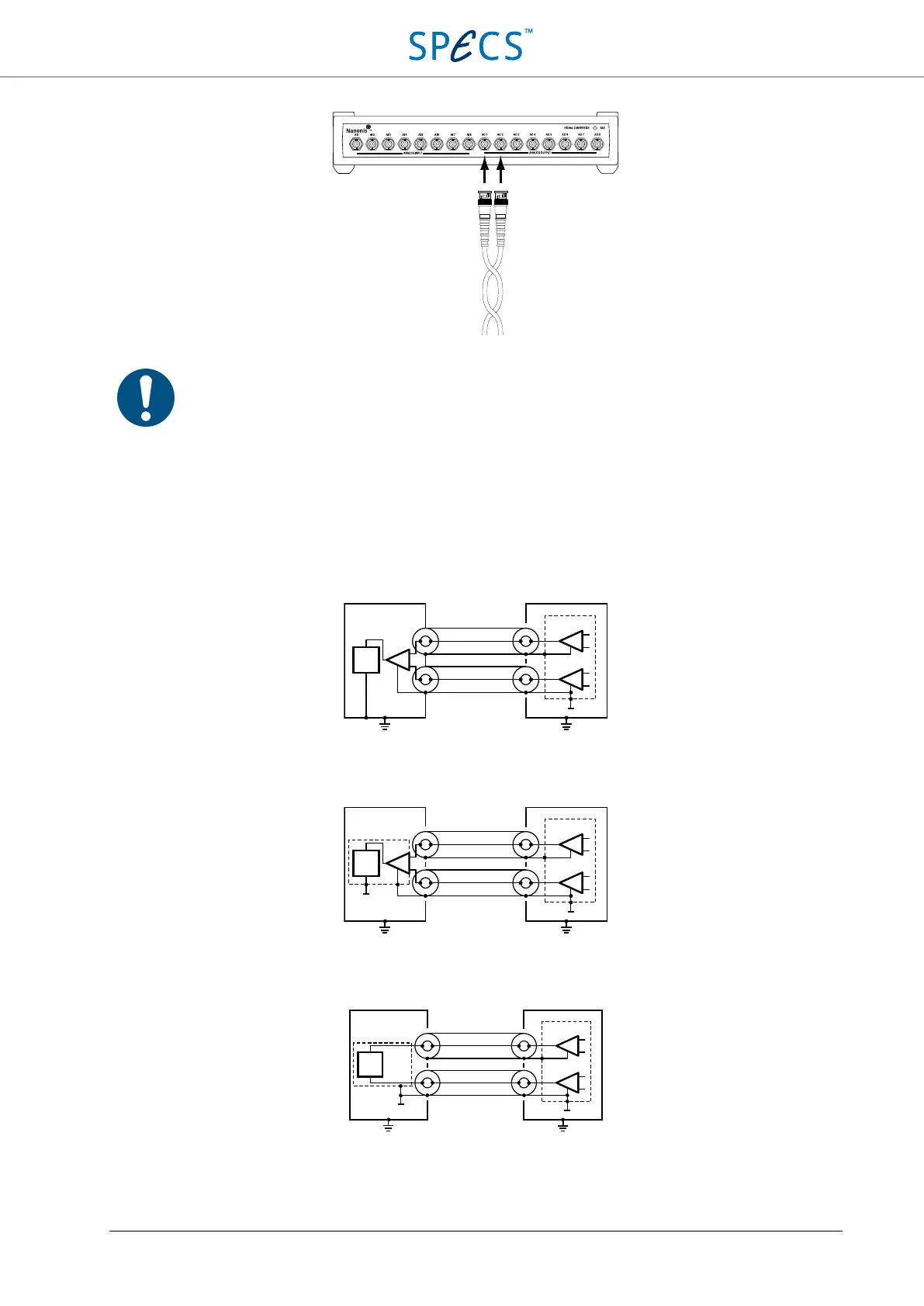

Connection options: As for shielded twisted pair cables, there are different options for connecting the SC5 to the
experiment when using the outputs in differential mode.
When the connectors’ shields at the experiment are connected to PE, the following connection scheme should be
used:
If the shields are separated from PE, the following wiring configuration should be used:
The following configuration should be used if a symmetric biasing of the measured device is required:
Experiment SC5
PE
PE
AGND
Meas. GND
Experiment SC5
PE
PE
AGND
Meas. GND
Note:
In order to operate correctly in differential mode, both paired outputs must be set to bipolar
operation.
