IM-S51-07 CTLS Issue 1
22
SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization

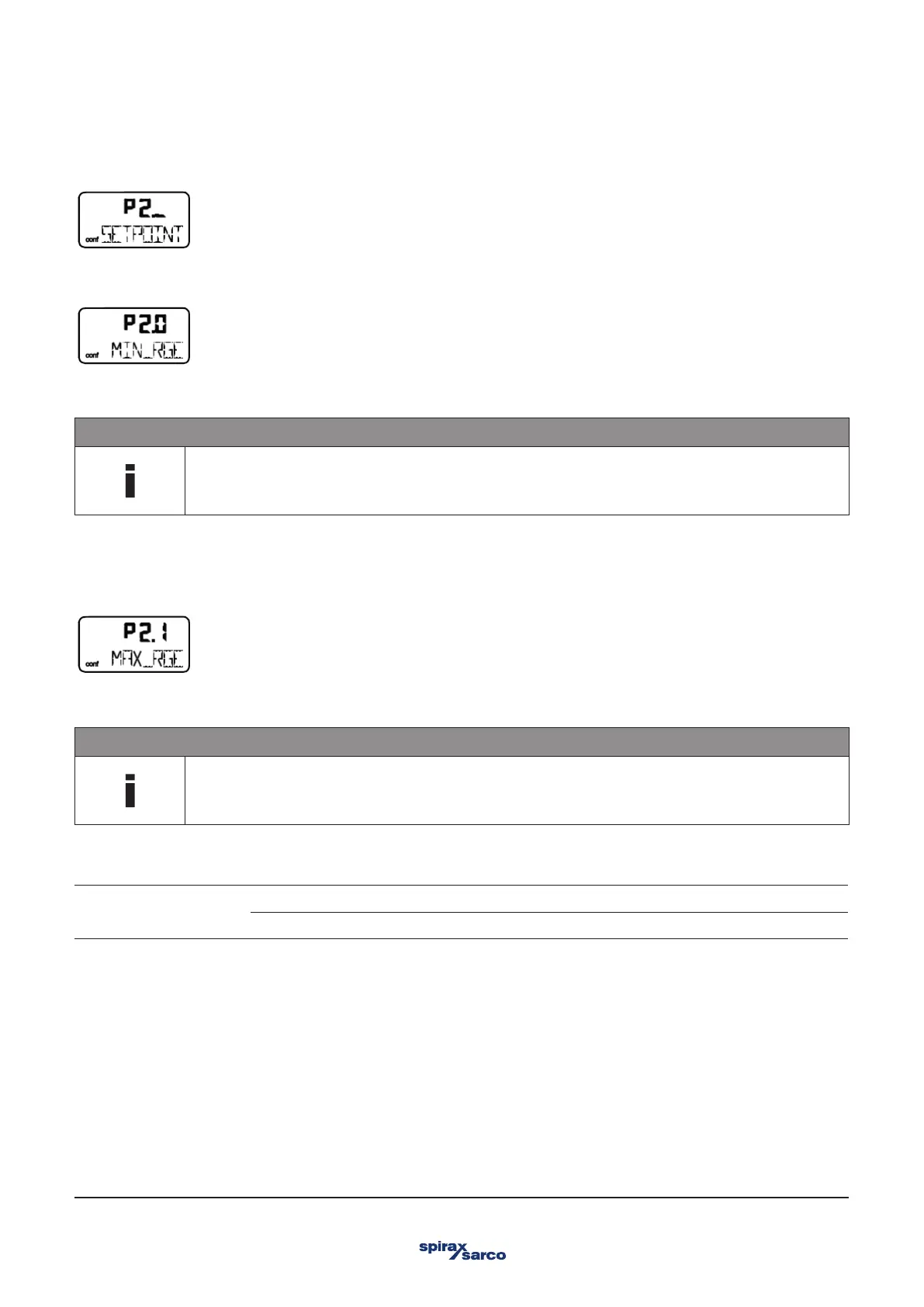

3.6 Parameter group 2: Setpoint
3.6.1 MIN_RGE – Setpoint range min.
The setpoint range is the input current range as a percentage of the working range for the valves and fittings (from 0 ... 100 %).
NOTE
The configured setpoint range must not be smaller than 20 % (3.2 mA).
Use the MIN_RGE parameter to determine the lower limit of the setpoint range. You can enter a value within the admissible value
range of 4 ... 18.4 mA, with one decimal.
3.6.2 MAX_RGE – Setpoint range max.
The setpoint range is the input current range as a percentage of the working range for the valves and fittings (from 0 ... 100 %).
NOTE
The configured setpoint range must not be smaller than 20 % (3.2 mA).
Use the MAX_RGE parameter to determine the upper limit of the setpoint range. You can enter a value within the admissible value
range of 5.6 ... 20 mA, with one decimal.
Setting examples
Setpoint Range Min. = 8.3 mA, Max. = 15.6 mA
Split range configuration between Min. = 12.0 mA, Max. = 20.0 mA
