SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
With this parameter you can determine that an alarm is signaled via the digital output when the configured operating range is
exceeded by 4%. (Position < -4 % or > 104 %). This may indicate improperly adjusted mounting or mechanical wear in a limit stop.
ACTIVE Alarm active
INACTIVE Alarm not active

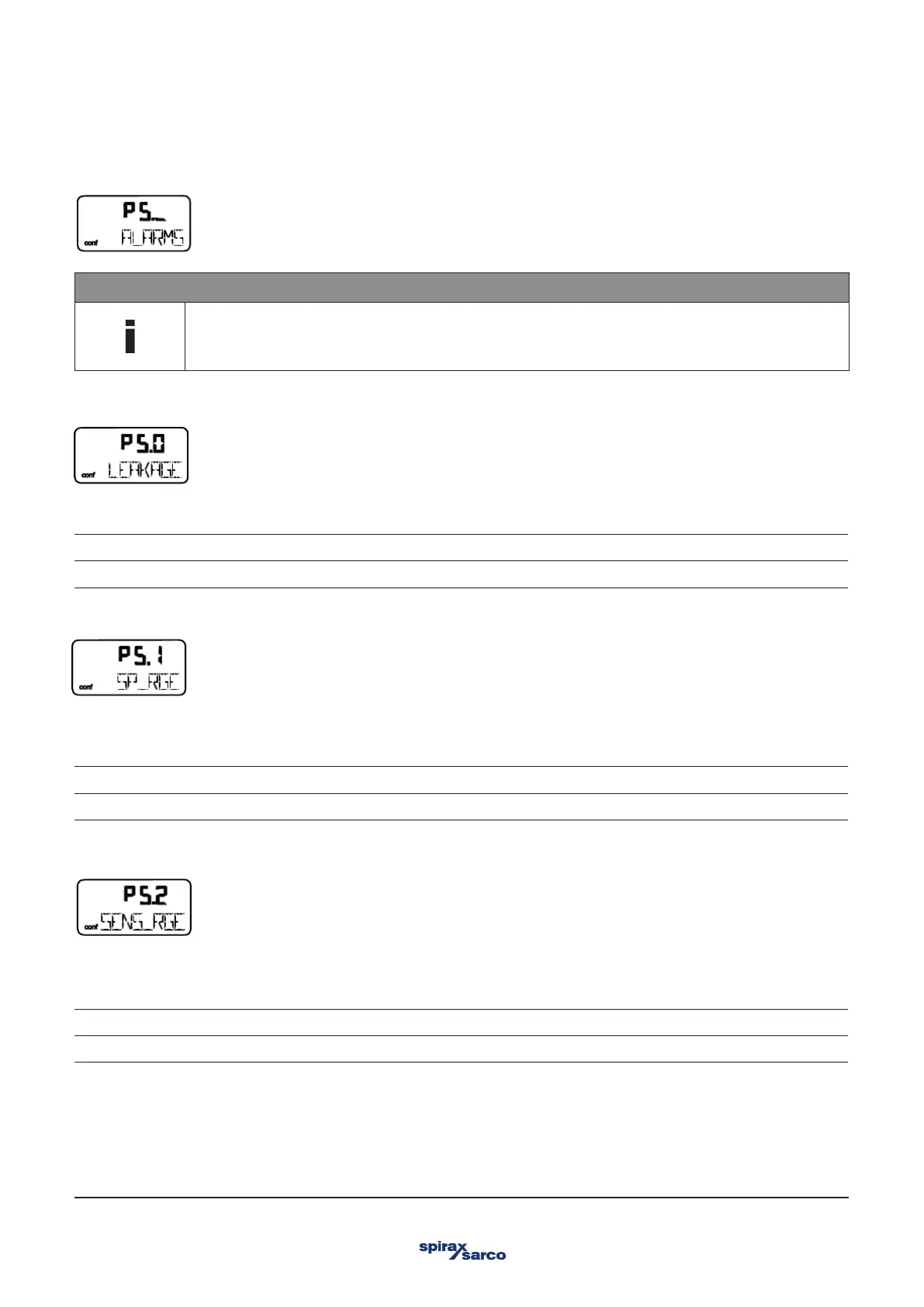

3.9 Parameter group 5: Alarms
NOTE
Active alarms are signaled at the digital output and using the "Analog feedback" option.
3.9.1 LEAKAGE – Leakage at actuator
If the monitoring function detects leakage at the actuator, a message is issued via alarm output on the mainboard.
ACTIVE Monitoring active.
INACTIVE Monitoring inactive.
3.9.2 SP_RGE – Setpoint monitoring
With this parameter, you can determine that a corresponding alarm is signaled via the digital output when falling below or exceeding
the setpoint range (<3.8 mA or above 20.5 mA).
ACTIVE Setpoint monitoring active.
INACTIVE Setpoint monitoring inactive.
3.9.3 SENS_RGE – Operating range exceeded
