IM-S51-07 CTLS Issue 1
28
SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization

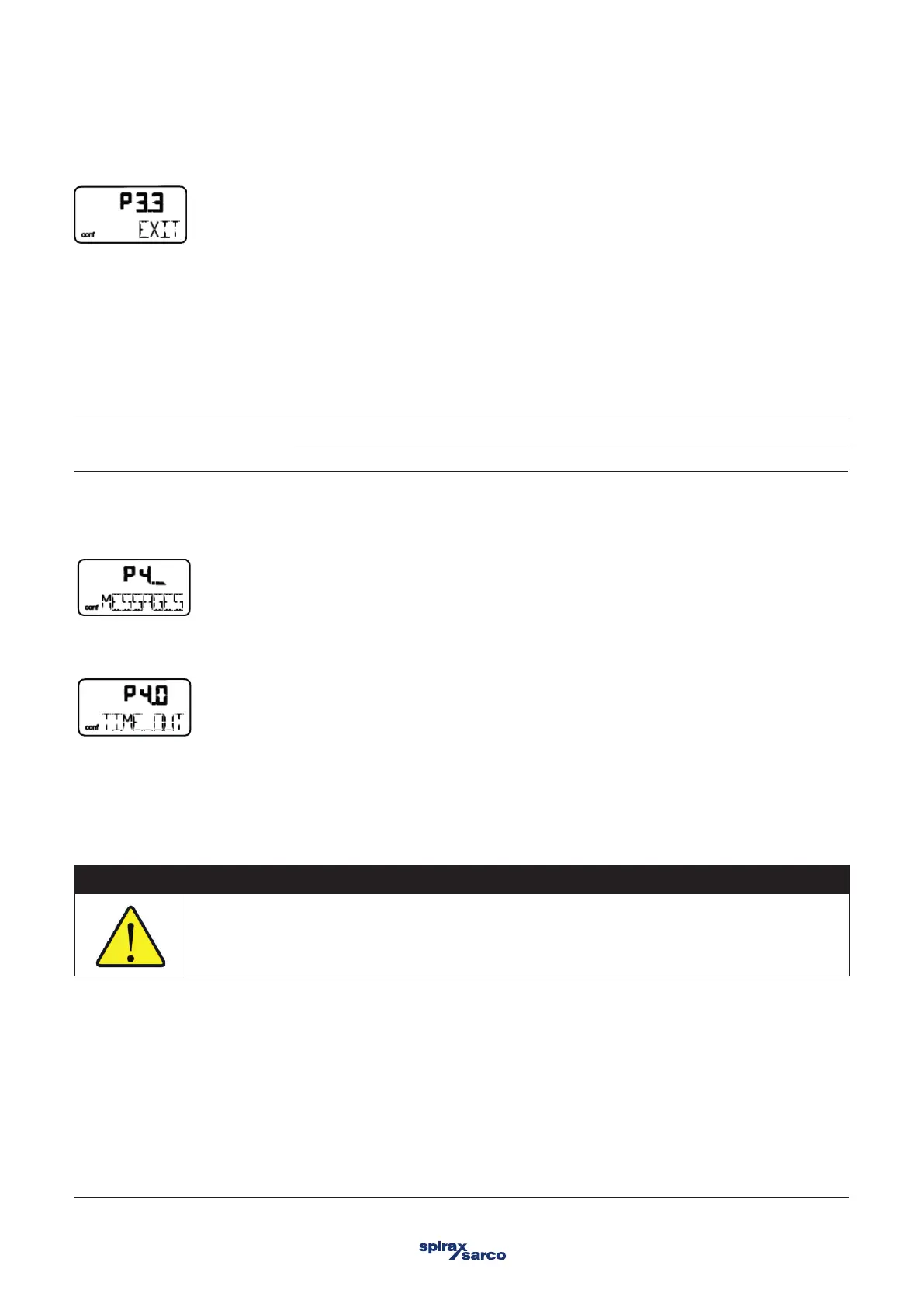

3.7.4 EXIT – Return to operating level
With this parameter you can leave the configuration level. The positioner returns to the operating level. Here you can either save data
in the non-volatile memory or discard all previously made changes (also the changes in other parameter groups).
To leave the configuration level (with or without saving), press and hold ENTER until the countdown from 3 to 0 is finished.
The active saving process is indicated by the message NV_SAVE. After saving a plausibility check is executed.
If an error occurs during the check or while saving, the data cannot be saved and an error message is displayed instead (see Chapter
"Error codes").
Selection
NV_SAVE. Saves settings in the non-volatile memory.
CANCEL Discards all changes made since the last permanent save operation.
3.8 Parameter group 4: Messages
3.8.1 TIME_OUT – Dead band time limit
With this parameter you enter the monitoring time until reaching the setpoint.
When the tolerance band is exceeded, the monitoring time iS started.
If the tolerance band within the predefined time is again not reached by the new position setpoint, an alarm is triggered. (Parameter
TIME_OUT in parameter group 5 must be activated.)
CAUTION
With active shutdown function there is no alarm message.
