IM-S51-07 CTLS Issue 1
26

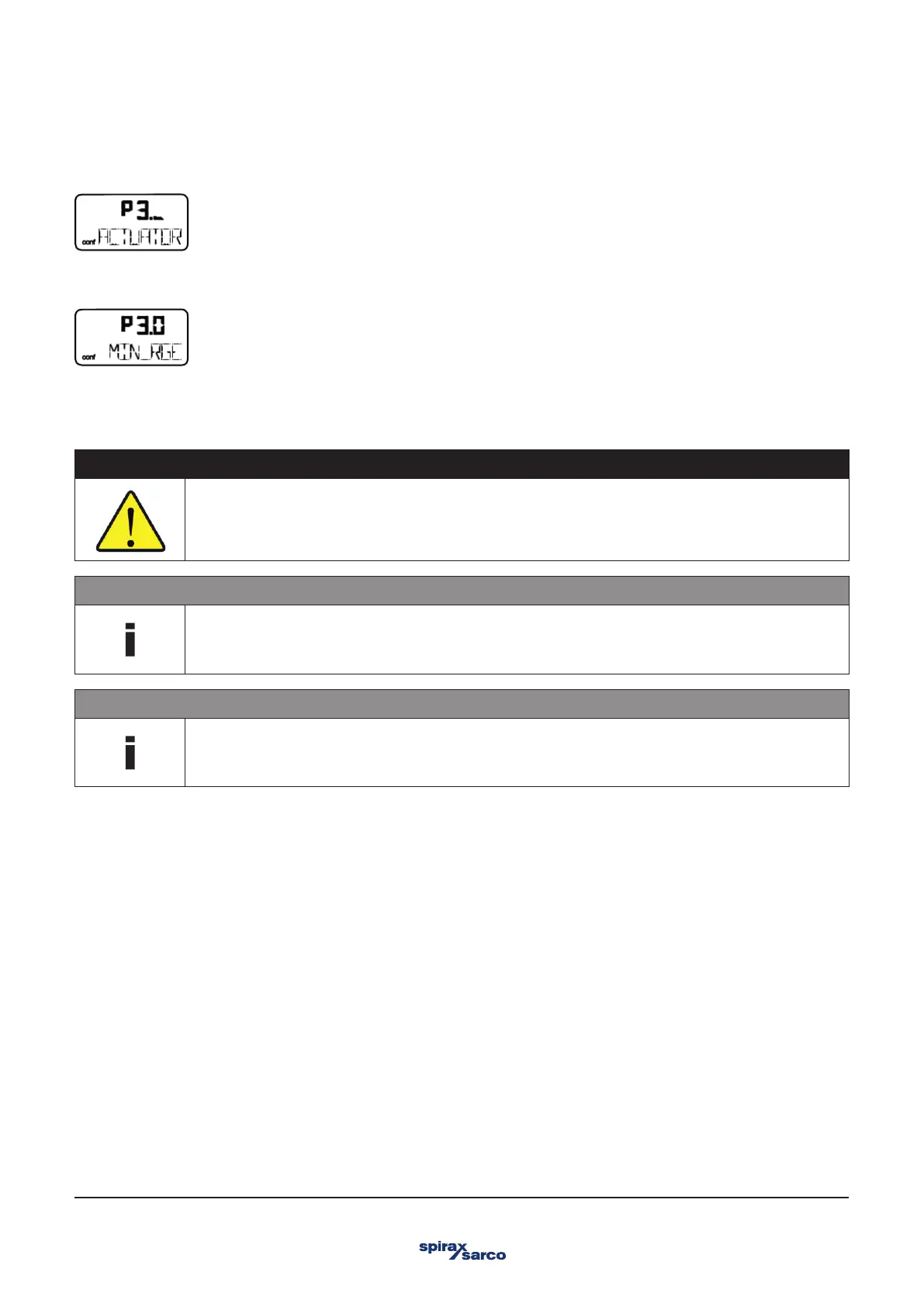

SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
3.7 Parameter group 3: Operating range
3.7.1 MIN_RGE – Operating range min.
The working range can be configured to be smaller than the maximum mechanical working range.
The setpoint range always refers to the configured working range. Use this parameter to specify the lower limit of the operating range.
CAUTION
Th is function is only active in control mode.
In the event of a power supply failure (electric or pneumatic), and in manual mode, the mechanical end
positions a reapproached
- Do not reach into the adjustment mechanism.
NOTE
The operating range must be greater than 10% of the sensor range.
NOTE
The display of the positioner in operating modes 1.0 through 1.2 always refers to the configured working range
and indicates the position in %.
