IM-S51-07 CTLS Issue 1
SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
* Only applies to PROFIBUS PA SP7-11 and SP7-21 units. Does NOT apply to Foundation Fieldbus SP7-12 or SP7-22.
3.18 Specific parameters for digital BUS communication versions only: -

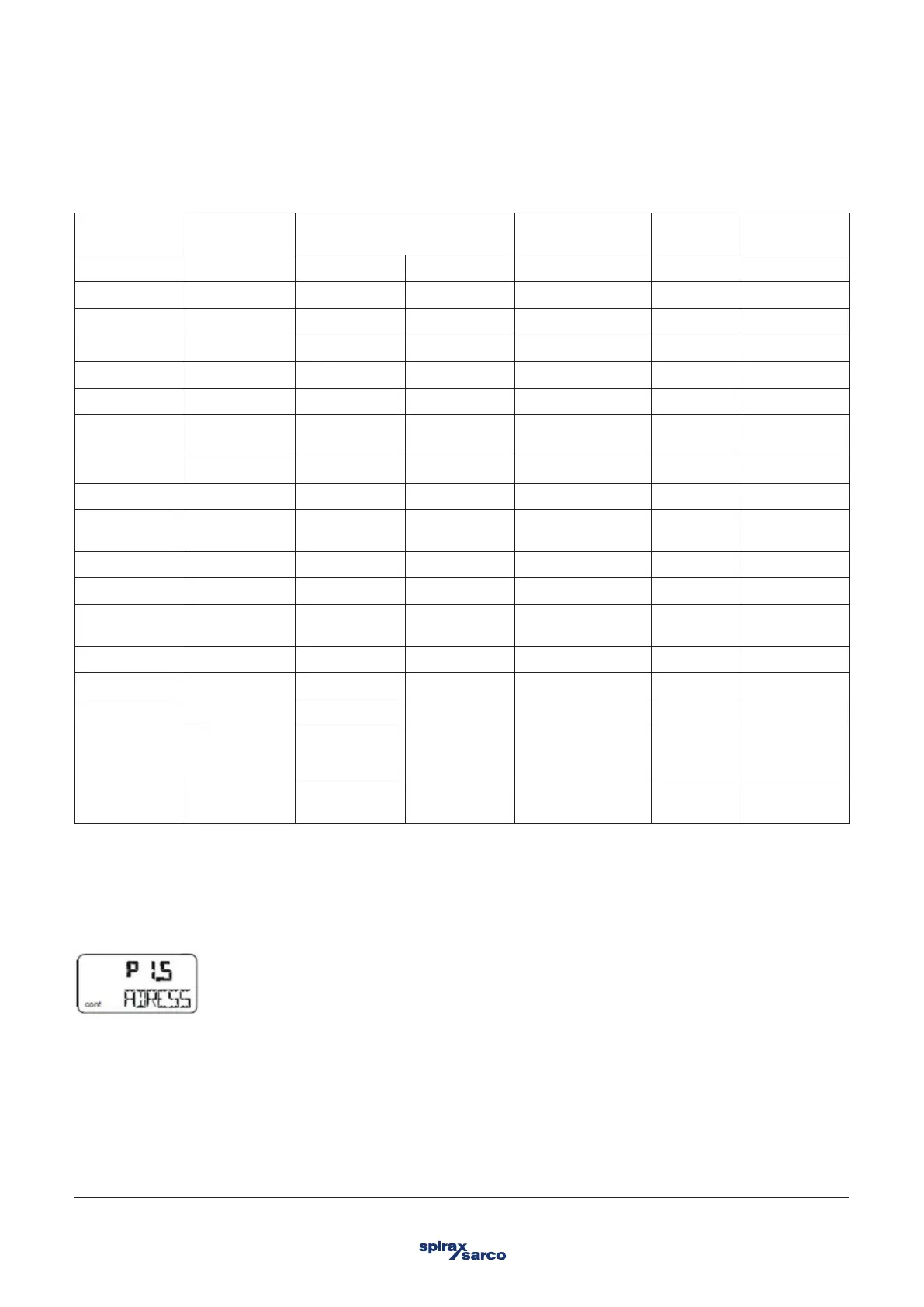

P1.5 ADRESS – Bus Address (PROFIBUS PA version only)
This parameter is used to set the PROFIBUS address via which communication with the device takes place.
Important
Do not set addresses 1 or 2, as these are reserved for the master. Avoid assigning the same bus address to multiple devices. Input
value: Recommended range: 3 ... 125
Parameter Display Function
Possible
parameter setting
Unit
Factory
setting
P7._ CTRL_PAR
P7.0 KP UP KP value, up KP value (up) 0.1 … 120.0 --- 5.0
P7.1 KP DN KP value, down KP value (down) 0.1 … 120.0 --- 5.0
P7. 2 TV UP TV value, up TV value (up) 10 ... 450 --- 200
P7.3 TV DN TV value, down TV value (down) 10 ... 450 --- 200
P7.4 GOPULSE ^ Position offset, up Position offset (up) 0...200 0
P7.5 GOPULSE v
Position offset,
down
Position offset
(down)
0...200 0
P7.6 Y-OFS UP Y offset, up Y offset (up) 0.0 … 100.0 % 48.0
P7.7 Y-OFS DN Y offset, down Y offset (down) 0.0 … 100.0 % 48.0
P7.9 TOL_BAND
Tolerance band
(zone)
Tolerance band
(zone)
0.3 … 10.0 % 2.0
P1.3 DEADBAND Deadband Dead band 0.10 … 10.00 % 0.20
P7.10 TEST Test Test Function --- INACTIVE
P7.11 EXIT Return
Return to
operating level
Function --- NV_SAVE
P11._ FS / IP
P11.0 FAIL_POS Save position Safe position ACTIVE, INACTIVE --- INACTIVE
P11.1 FACT_SET Factory setting Factory Setting Function --- NO_F_POS
P11.2 IP-TYP I/P module type Type of l/P module
NO_F_ POS, F_SAFE_1,
F_SAFE_2, F_
FREEZE1, F_FREEZE2
--- [CUSTOM]
P11.3 EXIT Return
Return to
operating level
Function --- NV_SAVE
