IM-S51-07 CTLS Issue 1
44
SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
Use this parameter to specify the characteristic curve for the analog feedback.
Increasing Position 0 ... 100 % = Signal 4 ... 20 mA
Decreasing Position 0 ... 100 % = Signal 20 ... 4 mA

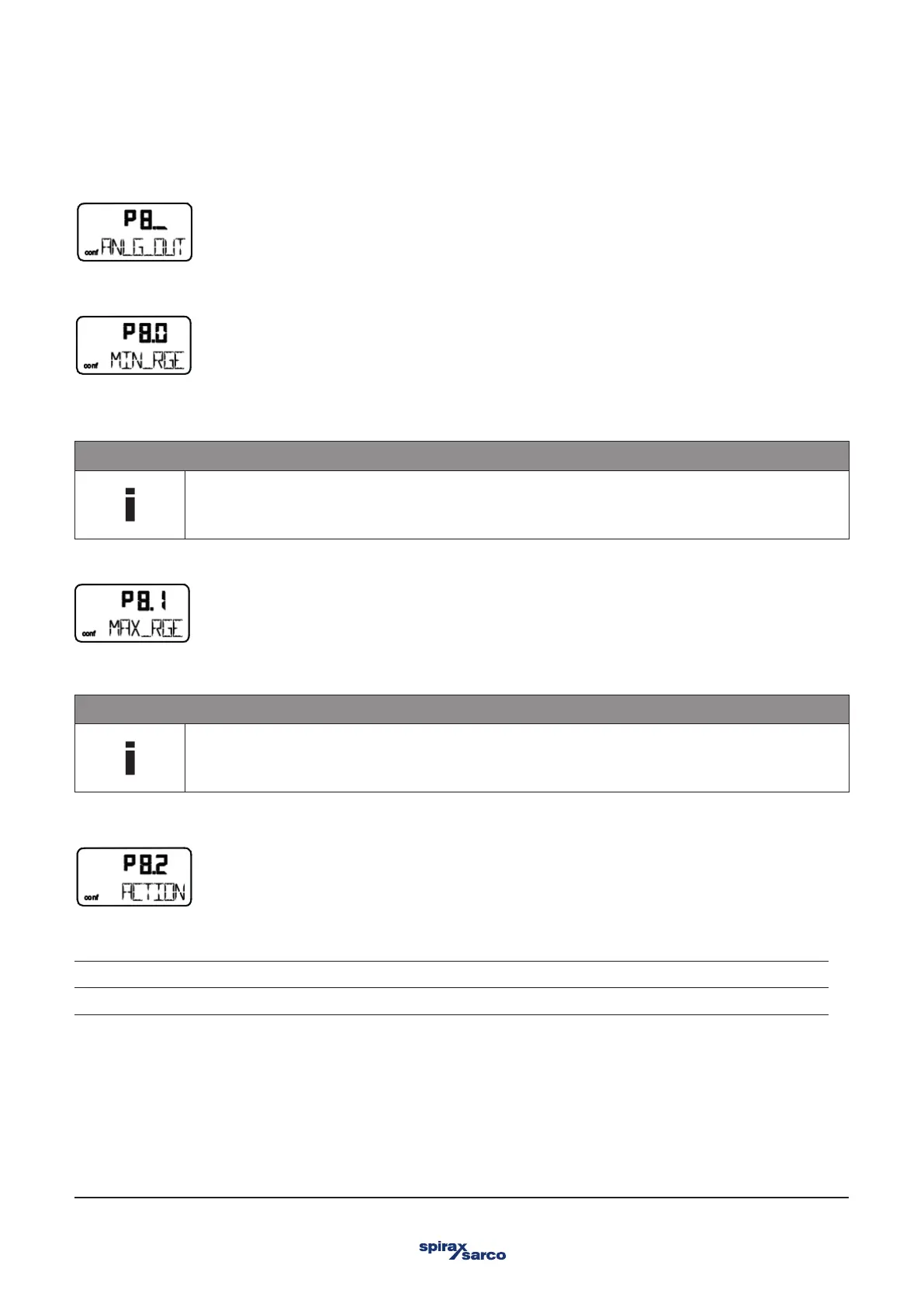

3.12 Parameter group 8: Analog output
(on the plug-in module for analog feedback)
3.12.1 MIN_RGE – Current range min.
Use this parameter to specify the lower current range limit for the analog feedback. The current range corresponds to the configured
stroke range
NOTE
The current range limits can be freely configured between 4 ... 18.5 mA. However, the current range must not
be smaller than 10 % (1 .6 mA).
3.12.2 MAX_RGE – Current range max.
Use this parameter to specify the upper current range limit for the analog feedback.
NOTE
The current range limits can be freely configured between 4 ... 20 mA. However, the current range must not be
smaller than 10 % (1 .6 mA).
3.12.3 ACTION – Characteristic curve action
