IM-S51-07 CTLS Issue 1
32
SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
With this parameter you can determine that an alarm is signaled when the travel counter exceeds the specified limit value. The limit
value is edited remotely via PC.
ACTIVE Alarm for exceeding movement counter limit value
INACTIVE No alarm

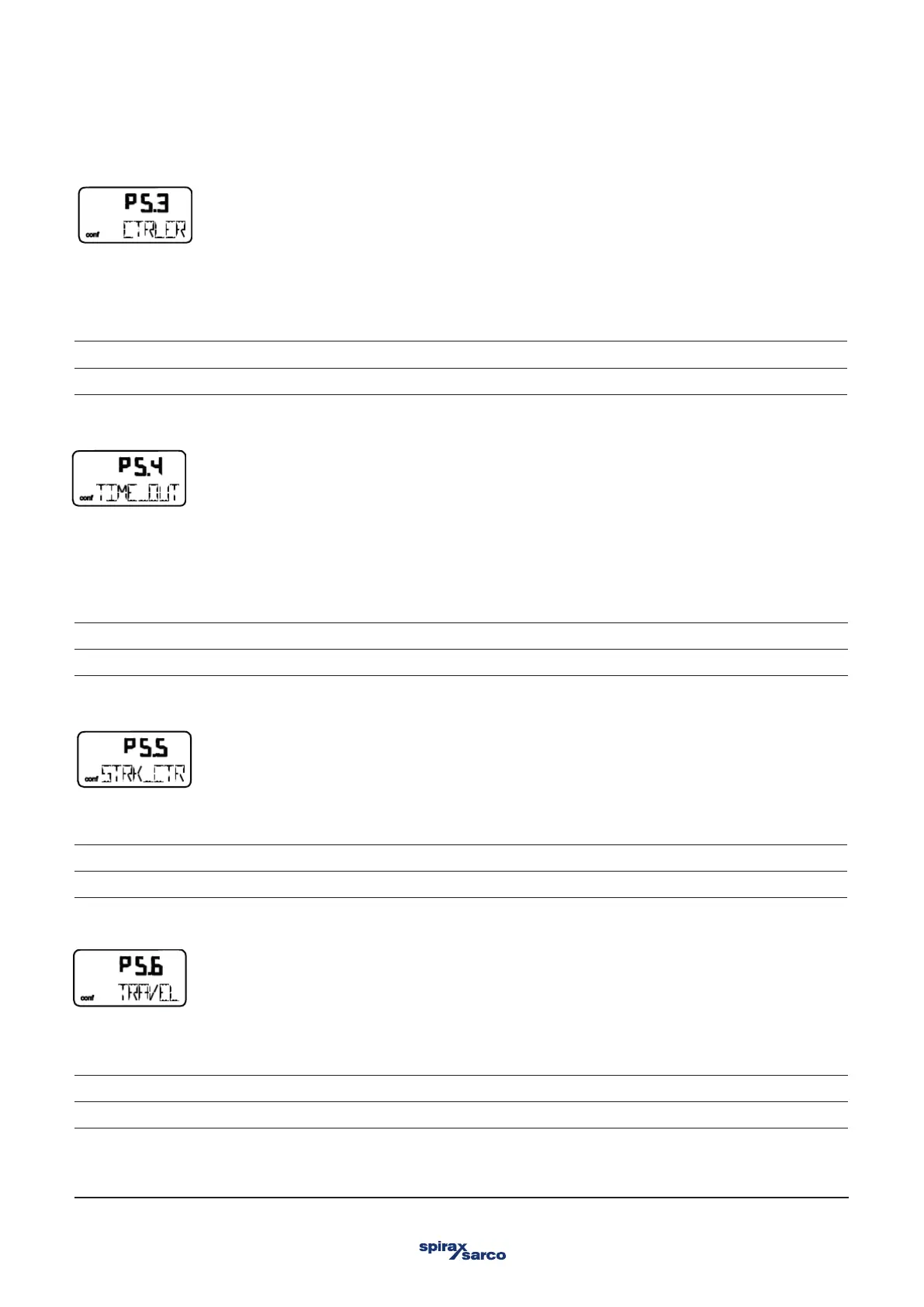

3.9.4 CTRLER – Controller inactive
You can use this parameter to specify signaling of an alarm via a digital output if the positioner is not active, i.e., if the control mode
is interrupted by another operating mode or by configuration.
For details of which statuses lead to a message, see chapter "alarm codes"
ACTIVE Alarm active
INACTIVE Alarm not active
3.9.5 TIME_OUT – Dead band time limit
Use this parameter to activate the "Dead band time limit" function.
The alarm is issued via digital output when the setpoint within the specified monitoring time is not reached in control mode. (The
monitoring time is entered with parameter group 4, „TIME_OUT“.) The function is only active in control modes ACTUATOR and AUTO_
ADJ.
ACTIVE Dead band time limit is activated.
INACTIVE Alarm not active
3.9.6 STRK_CTR – Movement counter
With this parameter you can determine that an alarm is signaled when the movement counter exceeds the specified limit value. The
limit value is edited remotely via PC.
ACTIVE Alarm for exceeding travel counter limit value
INACTIVE No alarm
3.9.7 TRAVEL – Travel counter
