SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization
With this parameter you can leave the configuration level. The positioner returns to the operating level. Here you can either save
data in the non-volatile memory or discard all previously made changes (also the changes in other parameter groups).
To leave the configuration level (with or without saving), press and hold ENTER until the countdown from 3 to 0 is finished.
The active saving process is indicated by the message NV_SAVE. After saving a plausibility check is executed.
If an error occurs during the check or while saving, the data cannot be saved and an error message is displayed instead (see
Chapter "Error codes").
NV_SAVE. Saves settings in the non-volatile memory.
CANCEL Discards all changes made since the last permanent save operation

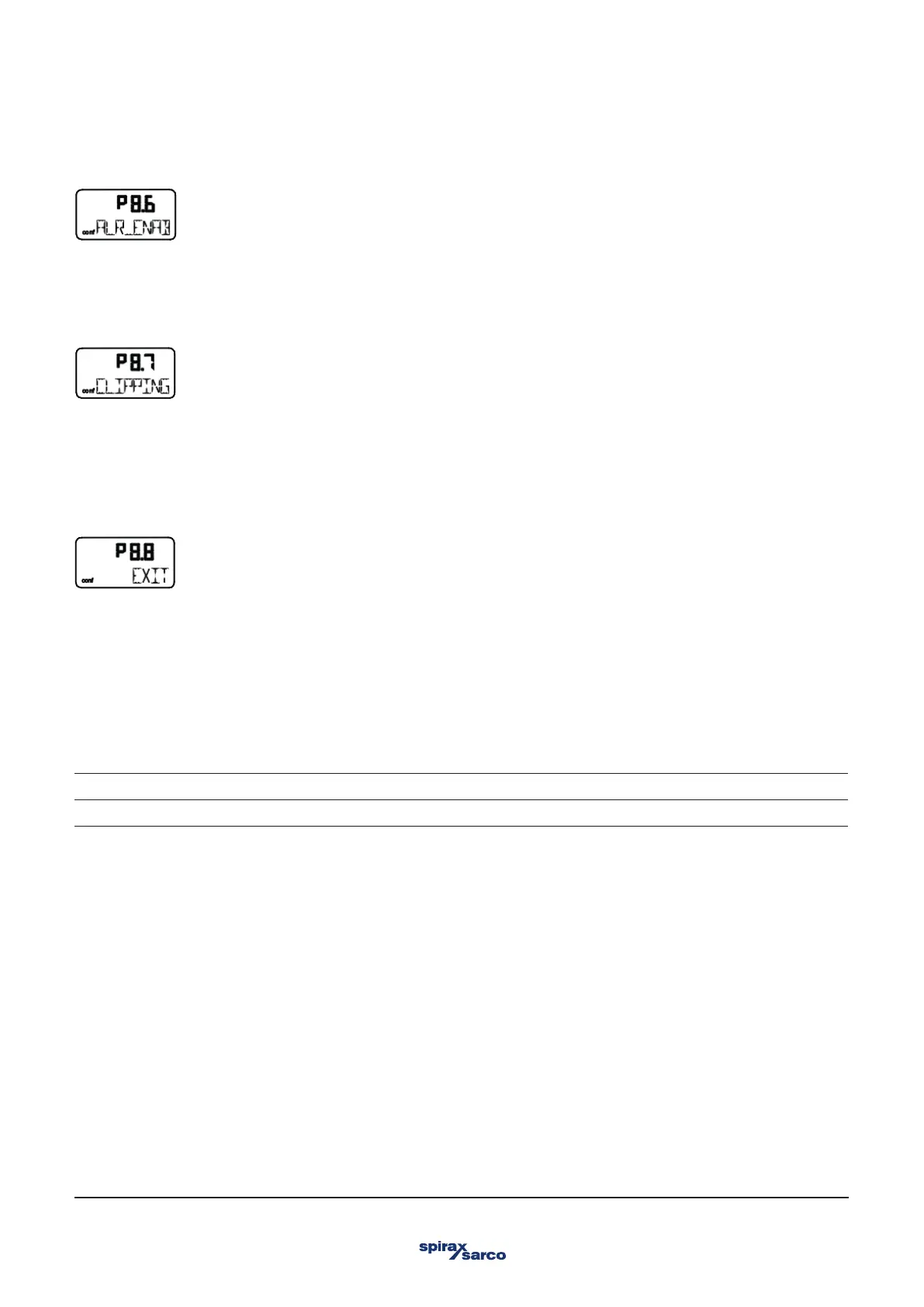

3.12.7 ALR_ENAB – Alarm via analog output
Enables the alarm signal to be switched on / off using the optional analog output module.
Selection option: ON / OFF.
3.12.8 CLIPPING – Extending the signal output range
Enables extension of the permissible signal output range to 3.8 … 20.5 mA.
Selection option:
— 4.0 … 20.0 mA
— 3.8 … 20.5 mA
3.12.9 EXIT – Return to operating level
