SPX W Series - Installation Tools; Tri Ring Tool; Actuator Rebuild Insertion Sleeve; Seal Insertion Collar Tool

Installation Tools Waukesha Cherry-Burrell
Page 84 95-03087 10/2012

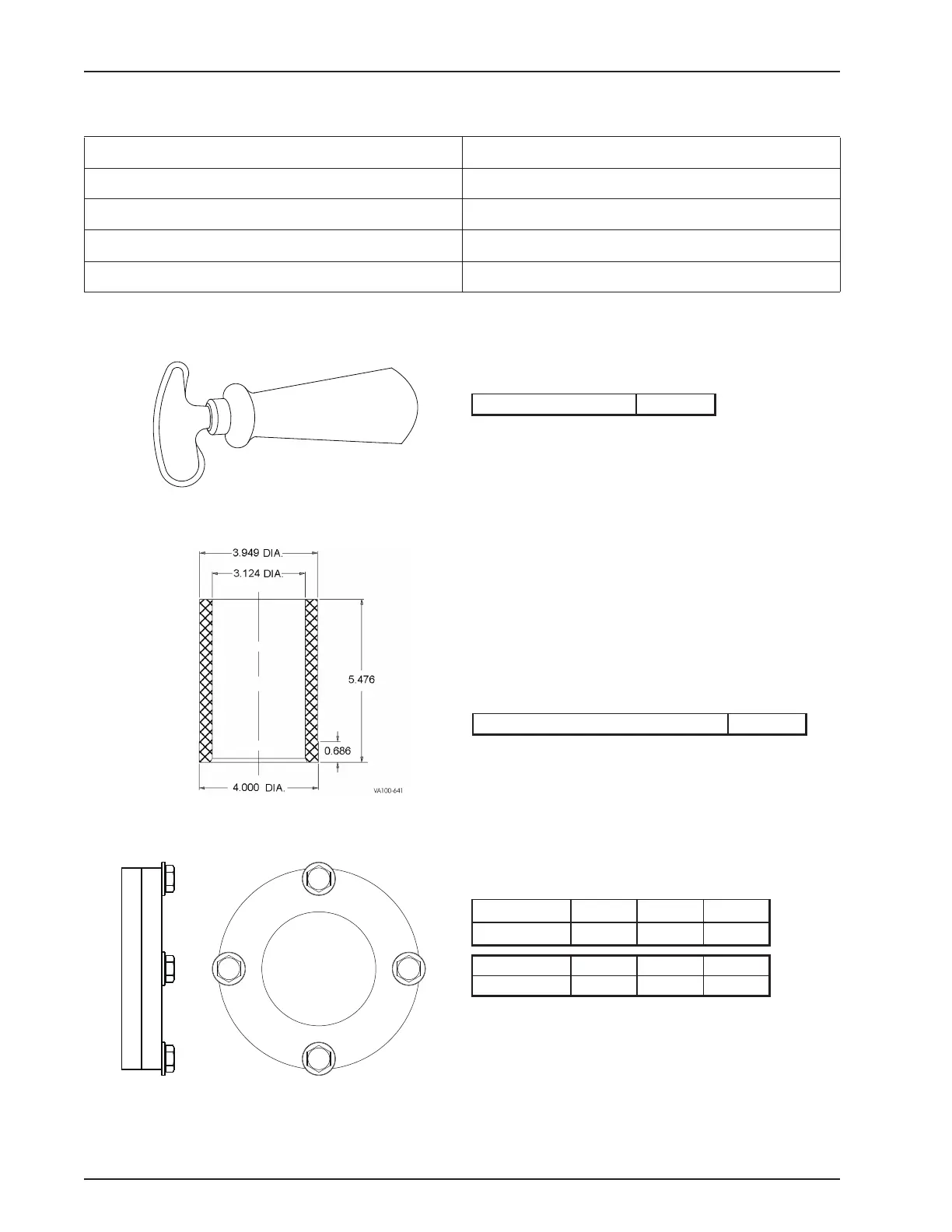

Installation Tools
Item Used with Valve Model
Tri Ring Tool (Figure 31) W71 / W72RS / W73
4" Actuator Rebuild Insertion Sleeve (Figure 32) W71 / W73
Seal Insertion Collar Tool (Figure 33) W72RS / W72RSP
Mix Proof Valve Lifter (Figure 34) All Mix Proof Valves
Figure 31 - Tri Ring Tool (for W71 / W73 and W72RS Valves)
VA100-082b
Tri Ring Tool 102797+
PL5027-CH85
Figure 32 - 4" Actuator Rebuild Insertion Sleeve (for W71 / W73 Valves)
NOTE: The insertion sleeve is available from WCB
using the part number below, or it can be created
by most machine shops using #6 nylon round
stock. See insertion sleeve dimensions shown at
left.
• Material is #6 nylon round stock.
• Bevel the inside and outside end corners.
4" Actuator Rebuild Insertion Sleeve 111840+
PL50 2 7-CH9 0
Figure 33 - Seal Insertion Collar Tool (for W72RS and W72RSP Valves)
VA100-664
Valve Size 1-1/2" 2" 2-1/2"
Part No.
120048+ 120049+ 120051+
Valve Size 3" 4" * 6"
Part No.
120053+ 120055+ 120057+
PL5027-CH67
* W72RSP Valves only require the 4" tool.
