PXS-710D Section 2
30
2.2 ASSEMBLY (REFERENCE FIGURE 2.1 & 2.2)
1) Secure the Patient Side Handrails (A) to the left and right side of the Podiatry
Base (B) from the outside using 4 ea. 1/4-20 x 2” SHCS (E). Tighten securely.
2) Secure the Patient Back Handrail (C) to the backside of the Podiatry Base (B)
from the outside using 4 ea. 1/4-20 x 2” SHCS. Tighten securely.
3) Place the Podiatry Support Base (B) in its final location.
4) Remove the Base Plate and anchor the unit to the floor using the base
mounting holes (D) & appropriate fasteners for the substrate. Re-attach Base
Plate once anchored.

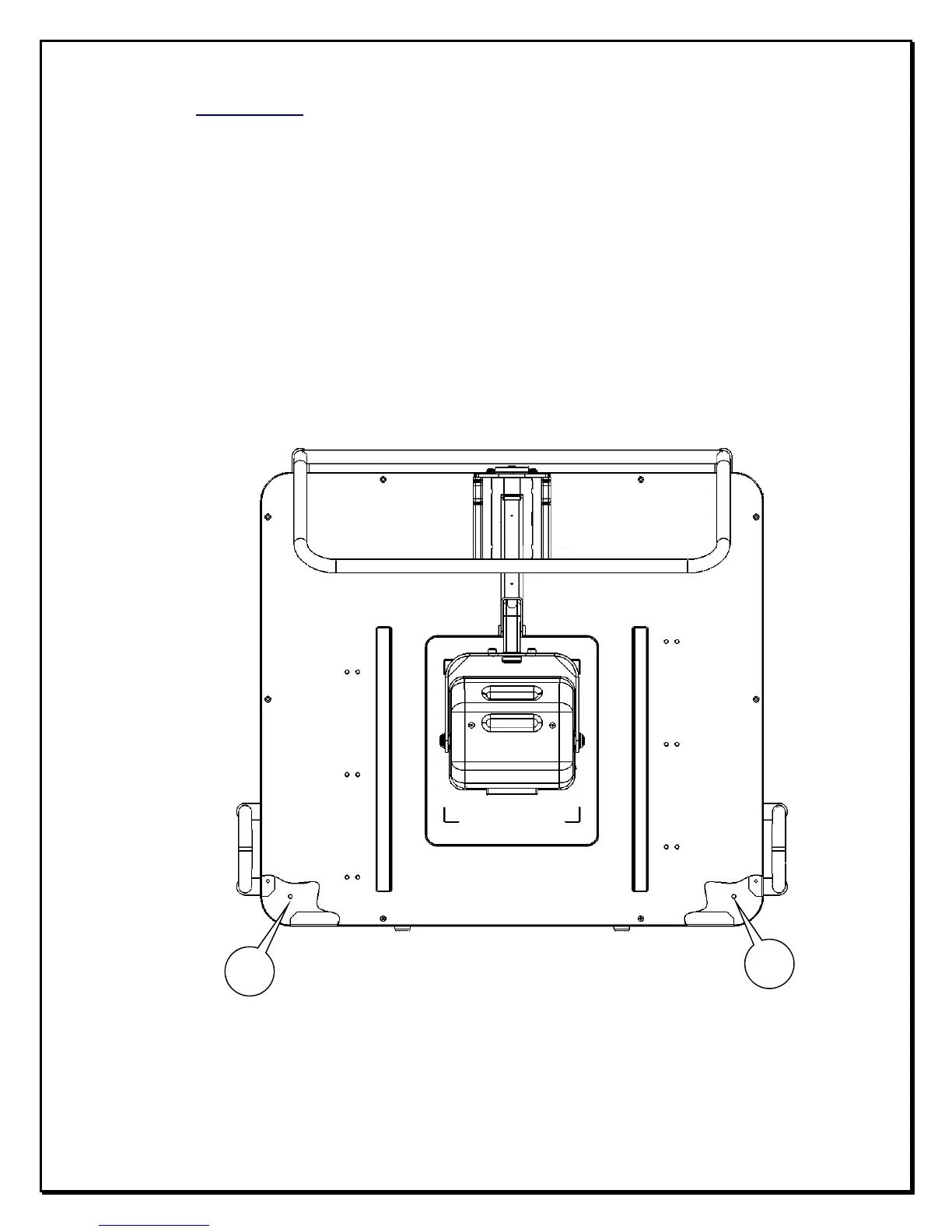

FIGURE 2.1
ANCHOR POINTS
D
D
To Next Page
