St George DEO2B - Removing Oven Door

CLEANING AND MAINTENANCE

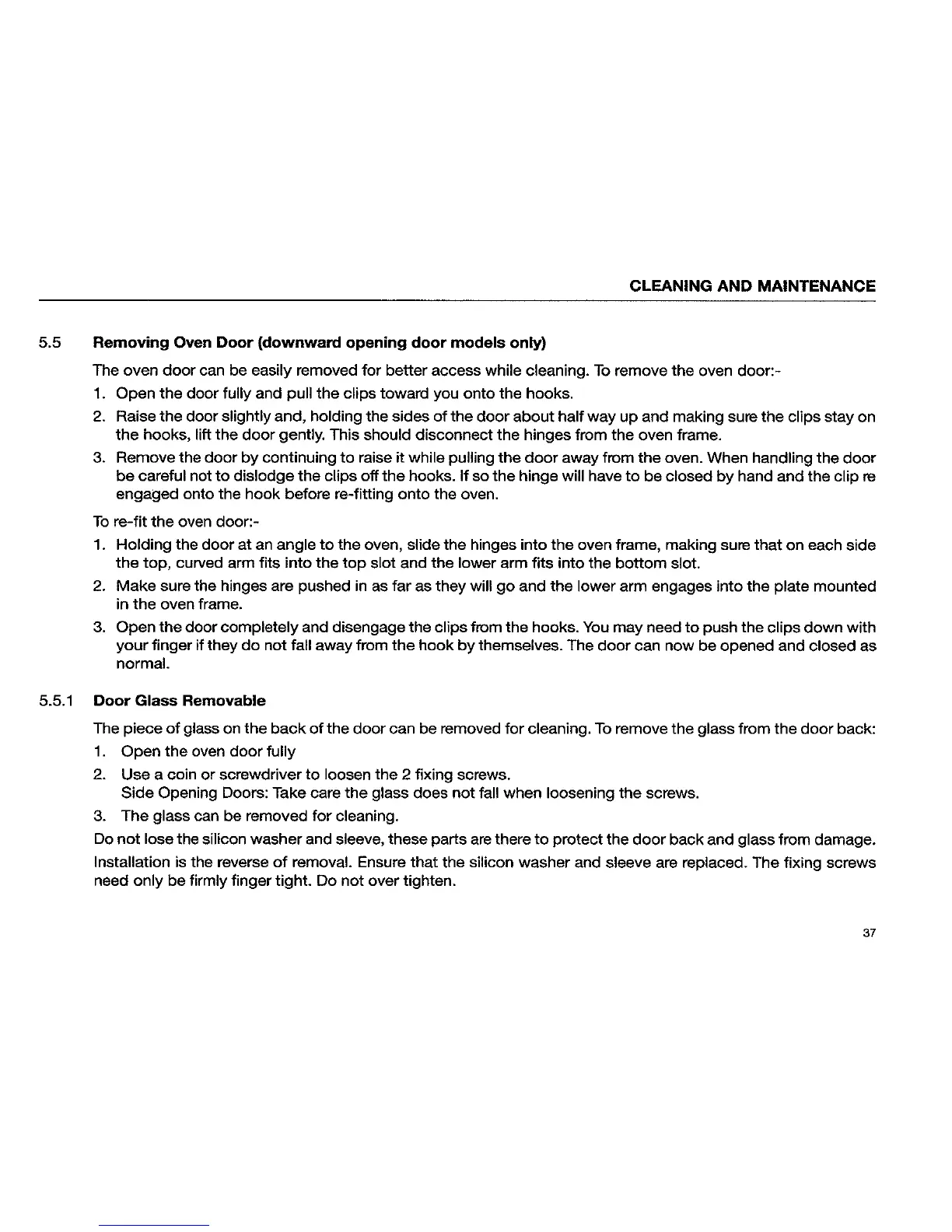

5.5 Removing Oven
Door (downward opening door models
only)
The oven door can
be easily removed for better access while cleaning.
To remove the oven door:-
1. Open the door fully and pull the clips toward you
onto the hooks.
2. Raise the door slightly and, holding the sides of the door
about half way up and making sure the clips stay on
the hooks, lift the door gently. This should disconnect the hinges
from the oven frame.
3. Remove the door by continuing to raise it while pulling
the door away from the oven. When handling the door
be careful not to dislodge the clips off the hooks. If so the
hinge will have to be closed by hand and the clip re
engaged onto the hook before re-fitting
onto the oven.
To re-fit the oven door:-
1 . Holding the door at an
angle to the oven, slide the hinges into the oven
frame, making sure that on each side
the top, curved arm fits
into the top slot and the lower arm fits into the
bottom slot.
2. Make sure the hinges
are pushed in as far as they will go and the lower
arm engages into the plate mounted
in the oven frame.
3. Open the door completely and disengage
the clips from the hooks. You may need to push the clips down
with
your finger if they do not
fall away from the hook by themselves. The
door can now be opened and closed as
normal.
5.5.1 Door Glass Removable
The piece of glass on the back of the door
can be removed for cleaning. To remove the glass
from the door back:
1. Open the oven door
fully
2. Use a coin or screwdriver to loosen the 2 fixing screws.
Side Opening Doors: Take care the
glass does not fall when loosening the screws.
3. The
glass can be removed for cleaning.
Do not lose the silicon washer and
sleeve, these parts are there to protect the door
back and glass from damage.
Installation is the reverse of removal.
Ensure that the silicon washer and sleeve
are replaced. The fixing screws
need only be firmly finger tight. Do not over
tighten.
37
