CABINET
INSTALLATION
INSTRUCTIONS

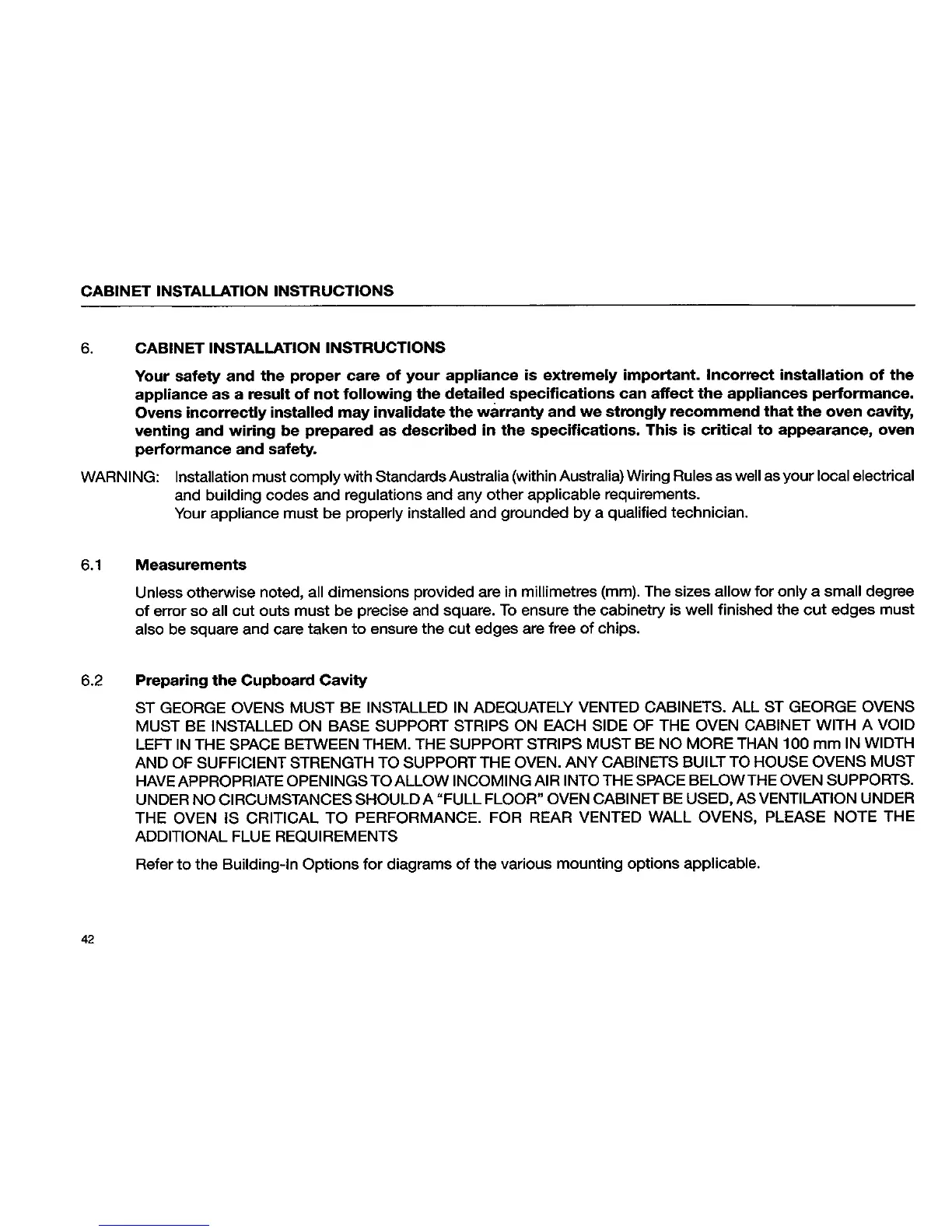

6.
CABINET
INSTALLATION
INSTRUCTIONS
Your
safety
and
the
proper
care
of your appliance
is
extremely
important.
Incorrect
installation
of
the
appliance
as
a
result
of
not
following
the
detailed
specifications
can
affect
the
appliances
performance.
Ovens
incorrectly
installed
may
invalidate
the
warranty
and we
strongly
recommend
that
the
oven
cavity,
venting
and
wiring
be
prepared
as
described
in
the
specifications.
This
is
critical
to
appearance,
oven
performance
and
safety.
WARNING:
Installation
must
comply
with Standards
Australia (within Australia)
Wiring Rules
as
well
as
your
local
electrical
and
building
codes
and
regulations
and
any
other
applicable
requirements.
Your
appliance
must be
properly
installed
and
grounded
by
a
qualified
technician.
6.1
Measurements
Unless
otherwise
noted,
all
dimensions
provided
are
in
millimetres
(mm).
The
sizes allow
for
only
a
small
degree
of
error
so
all
cut
outs
must
be
precise
and
square.
To
ensure
the
cabinetry
is
well
finished
the
cut
edges
must
also
be
square
and care
taken
to
ensure
the
cut
edges
are
free
of
chips.
6.2
Preparing
the
Cupboard
Cavity
ST
GEORGE OVENS
MUST
BE
INSTALLED
IN
ADEQUATELY
VENTED
CABINETS.
ALL
ST
GEORGE
OVENS
MUST
BE
INSTALLED ON
BASE
SUPPORT
STRIPS
ON
EACH
SIDE
OF
THE OVEN
CABINET WITH
A
VOID
LEFT
IN
THE
SPACE
BETWEEN
THEM.
THE
SUPPORT STRIPS
MUST
BE
NO
MORE
THAN
100
mm
IN
WIDTH
AND
OF
SUFFICIENT
STRENGTH
TO
SUPPORT
THE
OVEN.
ANY
CABINETS BUILT
TO
HOUSE
OVENS
MUST
HAVE
APPROPRIATE
OPENINGS
TO ALLOW INCOMING
AIR
INTO
THE
SPACE
BELOWTHE
OVEN
SUPPORTS.
UNDER
NO
CIRCUMSTANCES
SHOULD
A
"FULL
FLOOR"
OVEN
CABINET
BE
USED,
AS
VENTILATION UNDER
THE
OVEN
IS
CRITICAL
TO PERFORMANCE.
FOR
REAR
VENTED
WALL
OVENS,
PLEASE
NOTE
THE
ADDITIONAL
FLUE
REQUIREMENTS
Refer
to
the
Building-in
Options
for
diagrams
of
the
various
mounting
options applicable.
