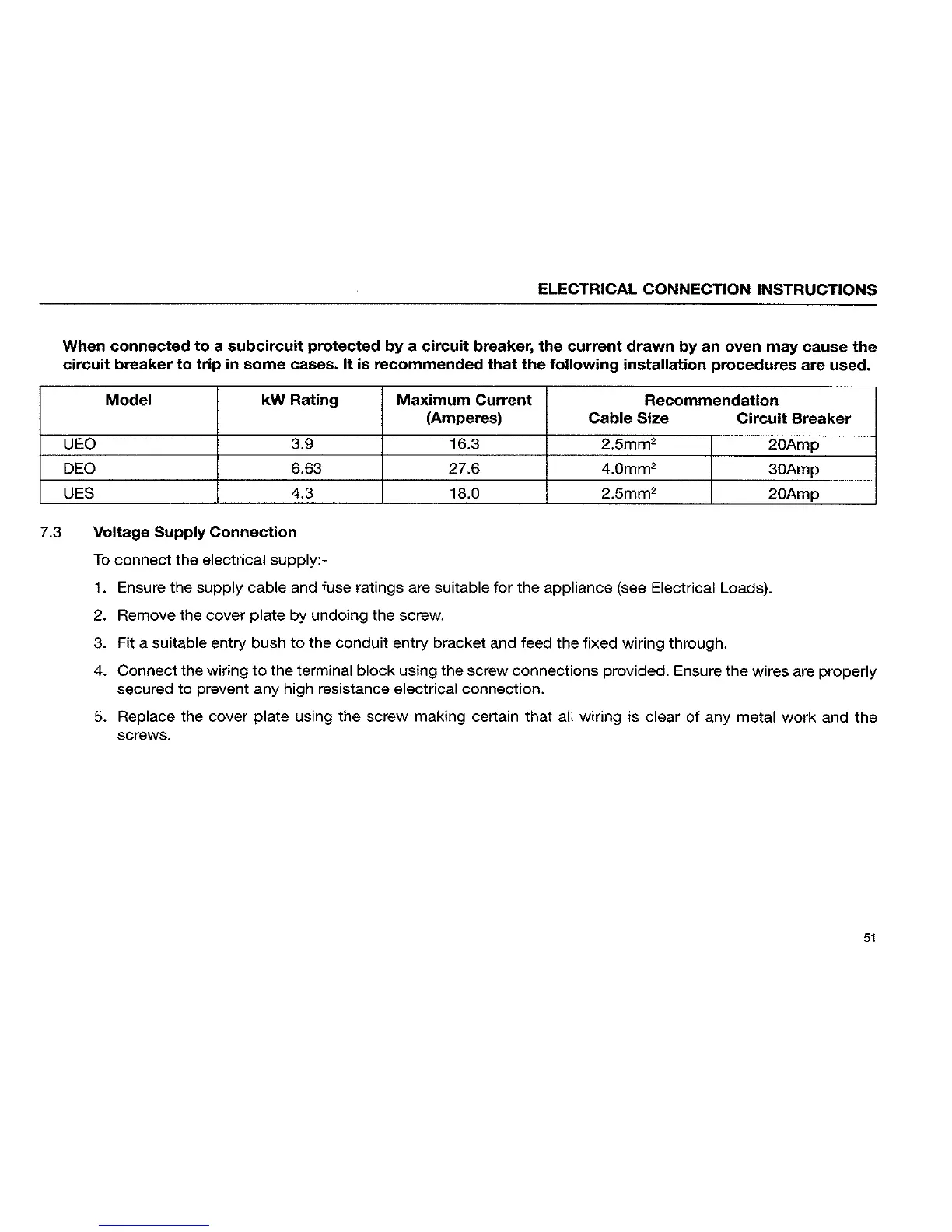

St George DEO2B - Voltage Supply Connection

ELECTRICAL
CONNECTION INSTRUCTIONS
When connected to a subcircuit protected
by a circuit breaker, the current drawn by an
oven may cause the
circuit breaker to trip in some cases. It is recommended
that the following installation procedures are
used.
Model
kW Rating Maximum Current
Recommendation
(Amperes) Cable
Size Circuit Breaker
UEO
3.9 16.3 2.5mm
2
2OAmp
DEO 6.63
27.6 4.0MM
2
3OAmp
UES
4.3 18.0 2.5mm
2
2OAmp
7.3 Voltage Supply
Connection
To connect the electrical
supply:-
1 . Ensure the supply cable
and fuse ratings are suitable for the appliance (see Electrical
Loads).
2. Remove the cover
plate by undoing the screw.
3. Fit a
suitable entry bush to the conduit entry bracket and feed the fixed wiring through.
4. Connect the wiring to the terminal
block using the screw connections provided. Ensure the
wires are properly
secured to prevent any high resistance
electrical connection.
5. Replace
the cover plate using the screw making certain that all
wiring is clear of any metal work and the
screws.
51
