UM2222 Rev 2 23/76
UM2222 Kernel description
75
3.13 Hardware settings
The STM32Cube demonstration supports STM32H7 Series devices and runs on
STM32H743I-EVAL, STM32H747I EVAL, STM32H747I DISCO and STM32H747I DISC1
boards from STMicroelectronics.

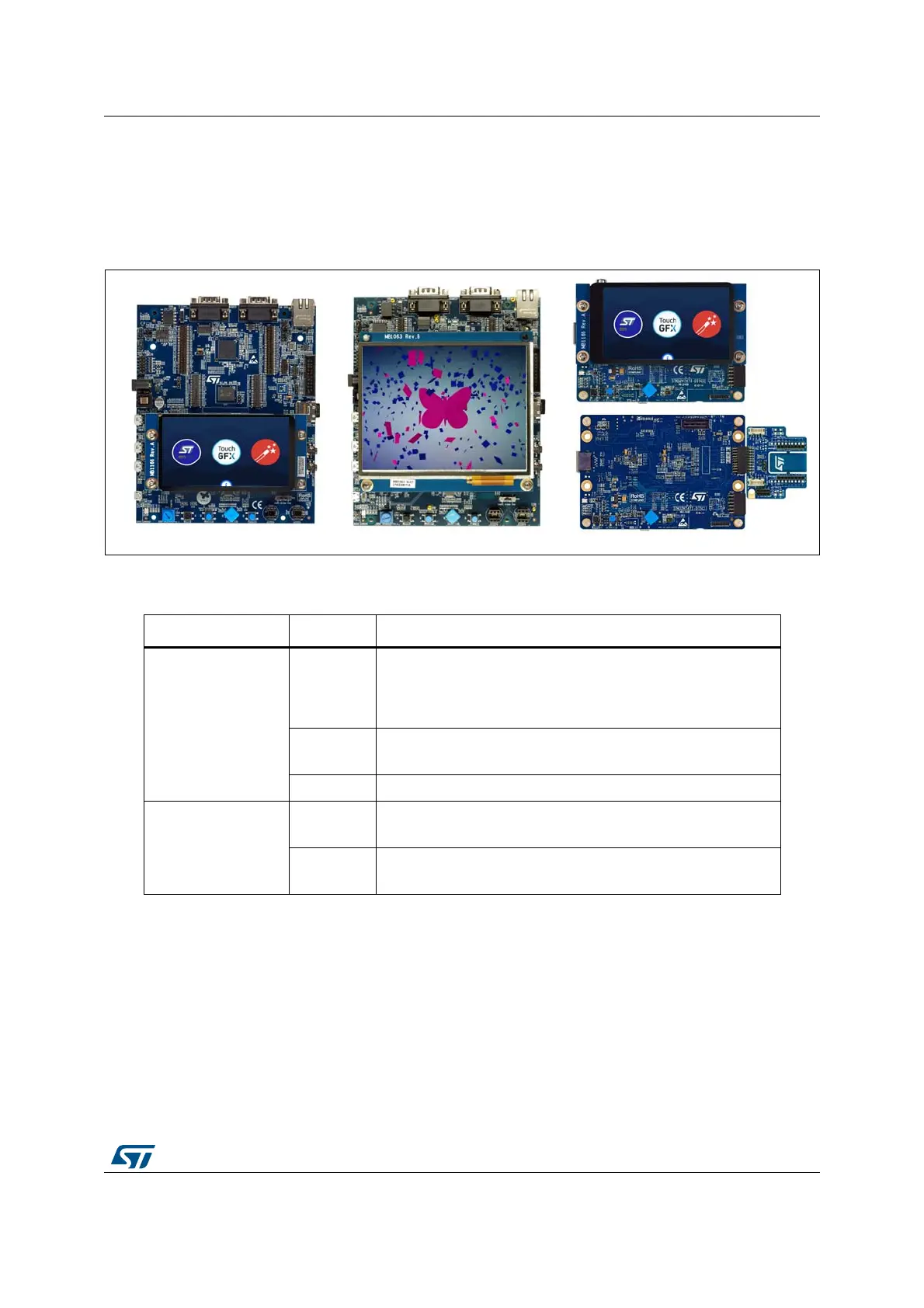

Figure 12. STM32Cube demonstration boards
1. Pictures are not contractual.
Table 4. Jumpers for demonstration boards
Board Jumper Position description
STM32H743I-EVAL
and
STM32H747I-EVAL
JP3
Status: not fitted
The Bootloader_BOOT is managed by pin 6 of connector CN7
(RS232 DSR signal) when JP1 is closed. This configuration is
used for boot loader application only.
JP9
Status: fitted
Used to measure MCU current consumption manually
JP10 Position: PSU position. For power supply jack (CN10)
STM32H747I-DISCO
and
STM32H747I-DISC1
JP3
Status: fitted
Used to measure MCU current consumption manually
JP6
Position: STlk (STLINK)
Used to select power supply source.
